MetalCatalog

Catalog of metals

Since R2021a

collapse all in page

    Syntax

    mc = MetalCatalog

    Description

    mc = MetalCatalog creates an object handle for the metal catalog.

    • To open the metal catalog, use open(mc)

    • To see the properties of a metal from the metal catalog, use s = find(mc,name).

    example

    Examples

    collapse all

    Open Live Script

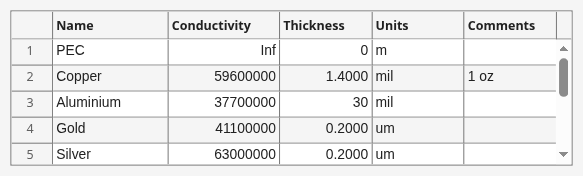

    Open the metal catalog.

    mc = MetalCatalog;
open(mc)

    Figure Metal Materials contains objects of type uimenu, uitoolbar, uitable.

    List the properties of the metal material Aluminium.

    s = find(mc,'Aluminium')
    s = struct with fields:
            Name: 'Aluminium'
    Conductivity: 37700000
       Thickness: 30
           Units: 'mil'
        Comments: ''

    Use the above metal in a coplanar waveguide.

    m = metal('Aluminium');
waveguide = coplanarWaveguide('Conductor',m)
    waveguide =
  coplanarWaveguide with properties:

              Length: 0.0231
               Width: 0.0039
             Spacing: 2.0000e-04
          ViaSpacing: [0.0011 0.0070]
         ViaDiameter: 5.0000e-04
              Height: 0.0016
    GroundPlaneWidth: 0.0300
           Substrate: [1x1 dielectric]
           Conductor: [1x1 metal]
          IsShielded: 0

    View the waveguide using show function.

    figure;
show(waveguide)

    Figure contains an axes object. The axes object with title coplanarWaveguide element, xlabel x (mm), ylabel y (mm) contains 48 objects of type patch, surface. These objects represent Aluminium, feed, Teflon.

    Input Arguments

    collapse all

    Name of the metal from the metal catalog, specified as a character vector.

    Example: 'Copper'

    Data Types: char

    Metal catalog, specified as an object.

    Output Arguments

    collapse all

    Metal catalog, returned as an object.

    Parameters of the specified metal from the metal catalog, returned as a structure.

    Version History

    Introduced in R2021a
