viewArray
Description
viewArray(
displays the geometry of the
array
)array
.
viewArray(
displays the geometry of the array, with additional options specified by one or more
array
,Name,Value
)Name,Value
pair arguments.
returns the
handle of the array elements in the figure window. All input arguments described for the
previous syntaxes also apply here.hndl
= viewArray(___)
Examples
Geometry and Indices of ULA Elements
Draw a 6-element ULA and use the 'ShowIndex'
parameter to show the indices of the first and third elements.

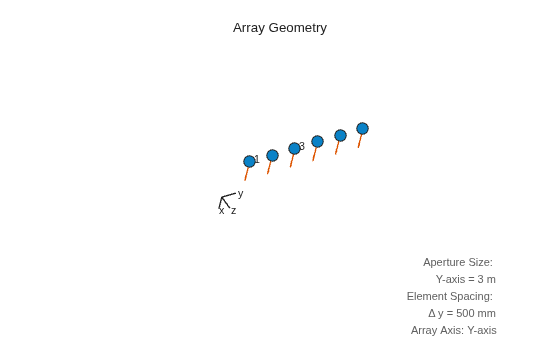

array = phased.ULA(6); viewArray(array,'ShowIndex',[1 3],'ShowNormals',true, ... 'ShowLocalCoordinates',true,'Orientation',[60;100;45], ... 'ShowAnnotation',true)
Geometry, Normal Directions, and Indices of URA Elements
This example shows how to display the element positions, normal directions, and indices for all elements of a 4-by-4 square URA.

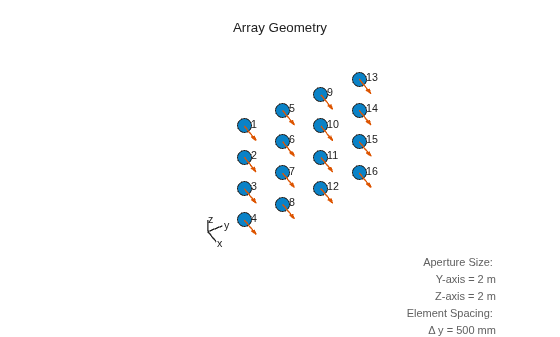

ha = phased.URA(4); viewArray(ha,'ShowNormals',true,'ShowIndex','All');
View Uniform Circular Array
Display the element positions and normal directions of all elements of an 8-element uniform circular array.
Create the uniform circular array
N = 8; azang = (0:N-1)*360/N - 180; ha = phased.ConformalArray(... 'ElementPosition',[cosd(azang);sind(azang);zeros(1,N)],... 'ElementNormal',[azang;zeros(1,N)]);
Display the positions and normal directions of the elements

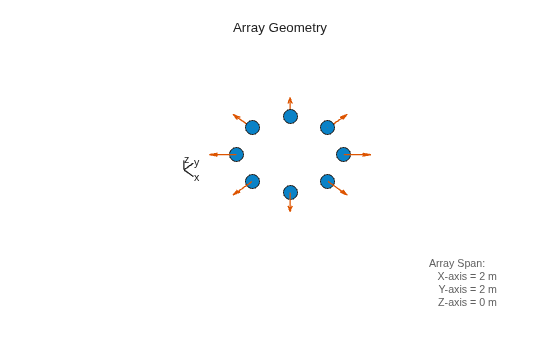

viewArray(ha,'ShowNormals',true);
View UCA Array
Construct an 7-element UCA of isotropic antenna elements with a Taylor window taper. Design the array to have a radius of 0.5 meters. Then, draw the array showing the element normals, element indices, and element taper shading.

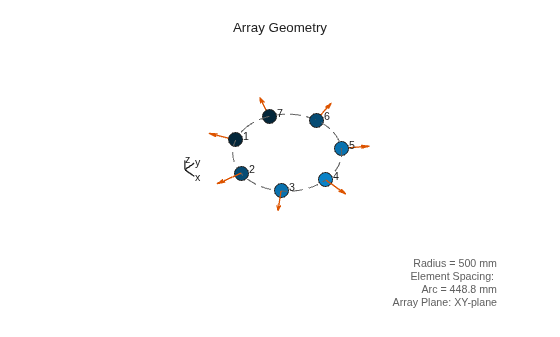

Nelem = 7; R = 0.5; taper = taylorwin(Nelem); sArray = phased.UCA(Nelem,R,'Taper',taper.'); w = getTaper(sArray); viewArray(sArray,'ShowNormals',true,'ShowIndex','All','ShowTaper',true);
Geometry of NR Rectangular Panel Array
Construct a 5G antenna array where the grid is 2-by-2 and each panel is 4-by-4 array. Each antenna element consists of two short-dipole antennas with different dipole axis directions. The antenna elements are spaced 1/2 wavelength apart and the panels are spaced 3 wavelengths apart. The array operates at 6 GHz.

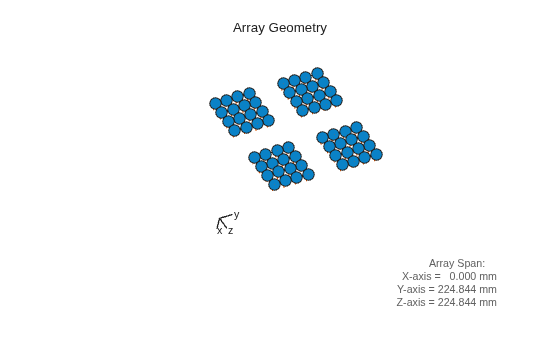

c = physconst('LightSpeed'); fc = 6.0e9; lambda = c/fc; antenna1 = phased.ShortDipoleAntennaElement('AxisDirection','Z'); antenna2 = phased.ShortDipoleAntennaElement('AxisDirection','X'); array = phased.NRRectangularPanelArray('ElementSet', ... {antenna1, antenna2},'Size',[4, 4, 2, 2], ... 'Spacing',[0.5*lambda,0.5*lambda,3*lambda,3*lambda]); viewArray(array,'ShowNormals',true, ... 'ShowLocalCoordinates',true,'Orientation',[60;100;45], ... 'ShowAnnotation',true)
Geometry and Indices of Heterogeneous ULA Elements
Display the geometry of a 5-element heterogeneous ULA of cosine antenna elements, showing the indices for the first three elements.

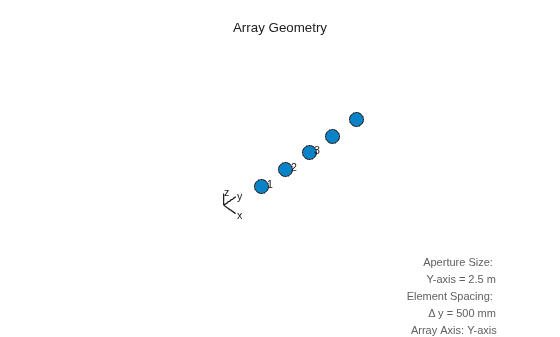

sElement1 = phased.CosineAntennaElement('CosinePower',1.5); sElement2 = phased.CosineAntennaElement('CosinePower',1.8); sArray = phased.HeterogeneousULA(... 'ElementSet',{sElement1,sElement2},... 'ElementIndices',[1 2 2 2 1]); viewArray(sArray,'ShowIndex',[1:3])
Geometry, Normal Directions, and Indices of Heterogeneous URA Elements
Display the element positions, normal directions, and indices for all elements of a 4-by-4 heterogeneous URA.
sElement1 = phased.CosineAntennaElement('CosinePower',1.5); sElement2 = phased.CosineAntennaElement('CosinePower',1.8); sArray = phased.HeterogeneousURA(... 'ElementSet',{sElement1,sElement2},... 'ElementIndices',[1 1 1 1; 1 2 2 1; 1 2 2 1; 1 1 1 1]); viewArray(sArray,'ShowIndex','all','ShowNormals',true);
Array of Replicated Hexagonal Arrays on a Sphere
This example shows how to construct a full array by replicating subarrays.
Create a hexagonal array to use as a subarray.
Nmin = 9; Nmax = 17; dy = 0.5; dz = 0.5*sin(pi/3); rowlengths = [Nmin:Nmax Nmax-1:-1:Nmin]; numels_hex = sum(rowlengths); stopvals = cumsum(rowlengths); startvals = stopvals-rowlengths+1; pos = zeros(3,numels_hex); rowidx = 0; for m = Nmin-Nmax:Nmax-Nmin rowidx = rowidx+1; idx = startvals(rowidx):stopvals(rowidx); pos(2,idx) = (-(rowlengths(rowidx)-1)/2:... (rowlengths(rowidx)-1)/2) * dy; pos(3,idx) = m*dz; end hexa = phased.ConformalArray('ElementPosition',pos,... 'ElementNormal',zeros(2,numels_hex));
Arrange copies of the hexagonal array on a sphere.
radius = 9; az = [-180 -180 -180 -120 -120 -60 -60 0 0 60 60 120 120 180]; el = [-90 -30 30 -30 30 -30 30 -30 30 -30 30 -30 30 90]; numsubarrays = size(az,2); [x,y,z] = sph2cart(deg2rad(az),deg2rad(el),... radius*ones(1,numsubarrays)); ha = phased.ReplicatedSubarray('Subarray',hexa,... 'Layout','Custom',... 'SubarrayPosition',[x; y; z], ... 'SubarrayNormal',[az; el]);
Display the geometry of the array, highlighting selected subarrays with different colors.

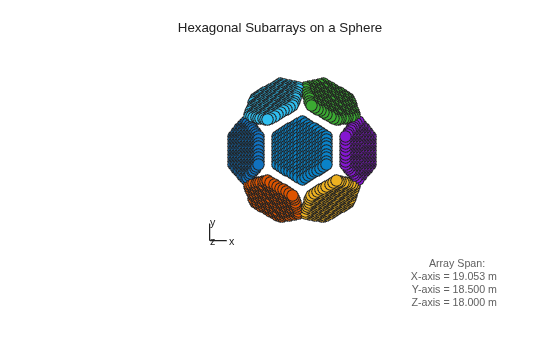

viewArray(ha,'ShowSubarray',3:2:13,... 'Title','Hexagonal Subarrays on a Sphere'); view(0,90)
Highlight Overlapped Subarrays
Display the geometry of a uniform linear array having overlapped subarrays.
Create a 16-element ULA that has five 4-element subarrays. Some elements occur in more than one subarray.
h = phased.ULA(16); ha = phased.PartitionedArray('Array',h,... 'SubarraySelection',... [1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0;... 0 0 1 1 1 1 0 0 0 0 0 0 0 0 0 0;... 0 0 0 0 1 1 1 1 0 0 0 0 0 0 0 0;... 0 0 0 0 0 0 0 0 1 1 1 1 0 0 0 0;... 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1]);
Display the geometry of the array, highlighting all subarrays.
viewArray(ha);
Each color other than white represents a different subarray. White represents elements that occur in multiple subarrays.
Examine the overlapped subarrays by creating separate figures that highlight the first, second, and third subarrays. In each figure, dark blue represents the highlighted elements.
for idx = 1:3 figure; viewArray(ha,'ShowSubarray',idx,... 'Title',['Subarray #' num2str(idx)]); end
Input Arguments
array
— Phased array
System object™
Phased array, specified as a System object.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'ShowNormals',true,'ShowIndex','All','ShowTaper',true
Parent
— Handle to axes
real-valued scalar
Handle to the axes along which the array geometry is displayed.
ShowNormals
— Option to show normal vectors
false
(default) | true
Option to show normal directions, specified as the comma-separated pair consisting
of 'ShowNormals'
and a logical value.
true
— show the normal directions of all elements in the arrayfalse
— plot the elements without showing normal directions
Example: false
Data Types: logical
ShowLocalCoordinates
— Show local coordinates
true
(default) | false
Logical flag specifying whether to show the local coordinate axes.
Data Types: logical
ShowAnnotation
— Show aperture size and element spacing annotations
true
(default) | false
Logical flag specifying whether to show the annotations in the UI panel of the figure. Annotation shows aperture size and element spacing based on array axis of array.
Data Types: logical
Orientation
— Orientation of the array
[0;0;0]
(default) | 3-by-1 column vector with real values
Orientation of the array, specified as a 3-by-1 column vector containing the rotation angles with respect to the x-, y-, and z-axes of the local coordinate system, respectively. The default value is [0;0;0].
Data Types: double
ShowTaper
— Option to show taper magnitude
false
(default) | true
Option to show taper magnitude, specified as the comma-separated pair consisting
of 'ShowTaper'
and a Boolean value.
true
— change the element color brightness in proportion to the element taper magnitudefalse
— plot all elements using the same color
Example: true
Data Types: logical
ShowIndex
— Element indices to show
'None'
(default) | vector of positive integers | 'All'
Element indices to show in the figure, specified as the comma-separated pair
consisting of 'ShowIndex'
and a vector of positive integers. Each
number in the vector must be an integer between 1 and the number of elements. To show
all of indices of the array, specify 'All'
. To suppress all
indices, specify 'None'
.
Example: [1,2,3]
Data Types: double
ShowSubarray
— Subarray indices
'All'
(default) | index valued vector
Vector specifying the indices of subarrays to highlight in the figure. Each number
in the vector must be an integer between 1 and the number of subarrays. You can also
specify the value 'All'
to highlight all subarrays of the array or
'None'
to suppress the subarray highlighting. The highlighting
uses different colors for different subarrays, and white for elements that occur in
multiple subarrays.
Dependencies
The ShowSubarray
name-value pair can only be used for the
phased.PartitionedArray
and phased.ReplicatedSubarray
System
objects.
Data Types: double
Title
— Plot title
'Array Geometry'
(default) | character vector
Plot title, specified as a character vector.
Example: 'My array plot'
Data Types: char
| string
Output Arguments
hndl
— Handle of array elements plot
scalar
Handle of array elements plot in the figure window, returned as a scalar.
Version History
Introduced in R2021a
