findLobes
Main, back, and side lobe data
Description
Examples
Find Lobes of Isotropic Antenna ULA
Create a 15-element ULA of isotropic antenna with elements spaced one-half wavelength apart. Plot the directivity of the array at 20 GHz. Then, find the mainlobe, sidelobe, and backlobe directions of the array pattern.
fc = 20.0e9; c = physconst('Lightspeed'); lam = c/fc; angs = [-180:1:180]; antenna = phased.IsotropicAntennaElement('FrequencyRange',[1.0e9,100.0e9]); array = phased.ULA('Element',antenna,'NumElements',15,'ElementSpacing',lam/2); a = pattern(array,fc,angs,0); P = polarpattern(angs,a);
L = findLobes(P)
L = struct with fields:
mainLobe: [1x1 struct]
backLobe: [1x1 struct]
sideLobes: [1x1 struct]
FB: 0
SLL: 0
HPBW: 8.0000
FNBW: 16.0000
FBIdx: [181 1]
SLLIdx: [181 361]
HPBWIdx: [357 5]
HPBWAng: [176 -176]
FNBWIdx: [173 189]
Find Lobes of Steered Isotropic Antenna ULA Patterns

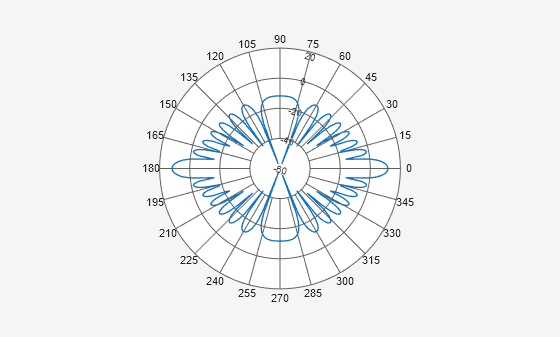

Create a 15-element ULA of isotropic antenna with elements spaced one-half wavelength apart. Plot the directivity of the array at 20 GHz. Then steer the array to 45° azimuth and plot the directivity. Then, find the mainlobe, sidelobe, and backlobe directions of the array pattern.
fc = 20.0e9; c = physconst('Lightspeed'); lam = c/fc; angs = [-180:1:180]; antenna = phased.IsotropicAntennaElement('FrequencyRange',[1.0e9,100.0e9]); array = phased.ULA('Element',antenna,'NumElements',15,'ElementSpacing',lam/2); a = pattern(array,fc,angs,0); P = polarpattern(angs,a);

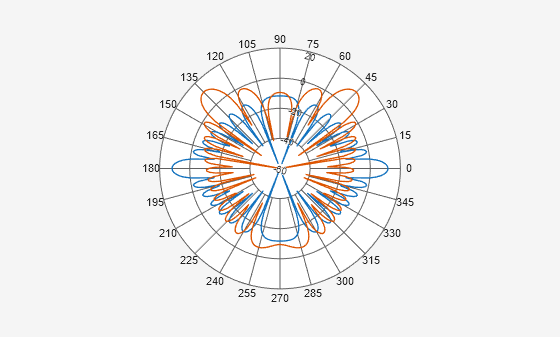

Steer the array to 45° azimuth and add the steered pattern to the polar plot.
steervec = phased.SteeringVector('SensorArray',array,'PropagationSpeed',c); sv = steervec(fc,[45;0]); a1 = pattern(array,fc,angs,0,'Weights',sv); add(P,angs,a1);
Find the lobes of the steered pattern.
L = findLobes(P,2); L.mainLobe
ans = struct with fields:
index: 226
magnitude: 11.7609
angle: 45
extent: [216 238]
Input Arguments
p
— Polar plot
polarpattern
object
Polar plot, specified as a polarpattern
(Antenna Toolbox) object. Set the
CleanData (Antenna Toolbox) property of polarpattern
to
1
to clean the pattern data by removing any
NaN
and Inf
values before running
findLobes
function on the data.
Example: polarpattern
index
— Index of data set
scalar
Index of data set, specified as a scalar.
Example: 1
Output Arguments
L
— Main,back, and side lobe data
structure
Main,back, and side lobe data, returned as a structure.
Data Types: struct
Version History
Introduced in R2016a
See Also
add
| addCursor
| animate
| createLabels
| replace
| showPeaksTable
| showSpan
