# plotResponse

**System object: **phased.RangeResponse

**Package: **phased

Plot range response

## Syntax

## Description

`plotResponse(`

plots
the range response with additional options specified by one or more `response`

,___`,Name,Value`

)`Name,Value`

pair
arguments.

## Input Arguments

`response`

— Range response

`phased.RangeResponse`

System object™

Range response, specified as a `phased.RangeResponse`

System object.

**Example: **`phased.RangeResponse`

`x`

— Input radar data cube

complex-valued *K*-element column vector | complex-valued *K*-by-*L* matrix | complex-valued *K*-by-*N*-by-*L*
array

Input radar data cube, specified as a complex-valued *K*-by-1 column
vector, a *K*-by-*L* matrix, or
*K*-by-*N*-by-*L* array.

*K*is the number of fast-time or range samples.*N*is the number of independent spatial channels such as sensors or directions.*L*is the slow-time dimension that corresponds to the number of pulses or sweeps in the input signal.

See Radar Data Cube.

Each *K*-element fast-time dimension is processed
independently.

For FMCW waveforms with a triangle sweep, the sweeps alternate between positive and
negative slopes. However, `phased.RangeResponse`

is
designed to process consecutive sweeps of the same slope. To apply `phased.RangeResponse`

for a triangle-sweep system, use one
of the following approaches:

Specify a positive

`SweepSlope`

property value, with`x`

corresponding to upsweeps only. After obtaining the Doppler or speed values, divide them by 2.Specify a negative

`SweepSlope`

property value, with`x`

corresponding to downsweeps only. After obtaining the Doppler or speed values, divide them by 2.

The size of the first dimension of the input matrix can vary to simulate a changing signal length. A size change can occur, for example, in the case of a pulse waveform with variable pulse repetition frequency.

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

`xref`

— Reference signal used for dechirping

complex-valued *K*-by-1 column vector

Reference signal used for dechirping, specified as a complex-valued *K*-by-1
column vector. The value of *K* must equal the length
of the first dimension of `x`

.

#### Dependencies

To enable this input argument, set the value of `RangeMethod`

to `'FFT'`

and `DechirpInput`

to `true`

.

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

`coeff`

— Matched filter coefficients

complex-valued *P*-by-1 column vector

Matched filter coefficients, specified as a complex-valued *P*-by-1
column vector. *P* must be less than or equal to *K*,
the length of the fast-time dimension.

#### Dependencies

To enable this input argument, set `RangeMethod`

property
to `'Matched filter'`

.

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

### Name-Value Arguments

Specify optional
comma-separated pairs of `Name,Value`

arguments. `Name`

is
the argument name and `Value`

is the corresponding value.
`Name`

must appear inside quotes. You can specify several name and value
pair arguments in any order as
`Name1,Value1,...,NameN,ValueN`

.

`Unit`

— Vertical axes units

`'db'`

(default) | `'mag'`

| `'pow'`

Units for vertical axis of plot, specified as `'db'`

, `'mag'`

,
or `'pow'`

.

**Example: **`'pow'`

**Data Types: **`char`

## Examples

### Plot Range Response of Three Targets

Plot the radar range response of three targets using the `plotResponse`

method of the `phased.RangeResponse`

System object™. The transmitter and receiver are collocated isotropic antenna elements forming a monostatic radar system. The transmitted signal is a linear FM waveform with a pulse repetition interval of 7.0 μs and a duty cycle of 2%. The operating frequency is 77 GHz and the sample rate is 150 MHz.

```
fs = 150e6;fs = 150e6;
c = physconst('LightSpeed');
fc = 77e9;
pri = 7e-6;
prf = 1/pri;
```

Set up the scenario parameters. The radar transmitter and receiver are stationary and located at the origin. The targets are 500, 530, and 750 meters from the radars on the *x*-axis. The targets move along the *x*-axis at speeds of −60, 20, and 40 m/s. All three targets have a nonfluctuating RCS of 10 dB.

Create the target and radar platforms.

Numtgts = 3; tgtpos = zeros(Numtgts); tgtpos(1,:) = [500 530 750]; tgtvel = zeros(3,Numtgts); tgtvel(1,:) = [-60 20 40]; tgtrcs = db2pow(10)*[1 1 1]; tgtmotion = phased.Platform(tgtpos,tgtvel); target = phased.RadarTarget('PropagationSpeed',c,'OperatingFrequency',fc, ... 'MeanRCS',tgtrcs); radarpos = [0;0;0]; radarvel = [0;0;0]; radarmotion = phased.Platform(radarpos,radarvel);

Create the transmitter and receiver antennas.

txantenna = phased.IsotropicAntennaElement; rxantenna = clone(txantenna);

Set up the transmitter-end signal processing. Construct an upsweep linear FM signal with a bandwidth of half the sample rate. Find the rms bandwidth and rms range resolution.

bw = fs/2; waveform = phased.LinearFMWaveform('SampleRate',fs,... 'PRF',prf,'OutputFormat','Pulses','NumPulses',1,'SweepBandwidth',fs/2,... 'DurationSpecification','Duty cycle','DutyCycle',.02); sig = waveform(); Nr = length(sig); bwrms = bandwidth(waveform)/sqrt(12); rngrms = c/bwrms;

Set up the transmitter and radiator System object properties. The peak output power is 10 W and the transmitter gain is 36 dB.

peakpower = 10; txgain = 36.0; transmitter = phased.Transmitter(... 'PeakPower',peakpower,... 'Gain',txgain,... 'InUseOutputPort',true); radiator = phased.Radiator(... 'Sensor',txantenna,... 'PropagationSpeed',c,... 'OperatingFrequency',fc);

Create a free-space propagation channel in two-way propagation mode.

channel = phased.FreeSpace(... 'SampleRate',fs,... 'PropagationSpeed',c,... 'OperatingFrequency',fc,... 'TwoWayPropagation',true);

Set up the receiver-end processing. The receiver gain is 42 dB and noise figure is 10.

collector = phased.Collector(... 'Sensor',rxantenna,... 'PropagationSpeed',c,... 'OperatingFrequency',fc); rxgain = 42.0; noisefig = 10; receiver = phased.ReceiverPreamp(... 'SampleRate',fs,... 'Gain',rxgain,... 'NoiseFigure',noisefig);

Loop over 128 pulses to build a data cube. For each step of the loop, move the target and propagate the signal. Then put the received signal into the data cube. The data cube contains the received signal per pulse. Ordinarily, a data cube has three dimensions. The last dimension corresponds to antennas or beams. Because only one sensor is used in this example, the cube has only two dimensions.

The processing steps are:

Move the radar and targets.

Transmit a waveform.

Propagate the waveform signal to the target.

Reflect the signal from the target.

Propagate the waveform back to the radar. Two-way propagation mode allows the return propagation to be combined with the outbound propagation.

Receive the signal at the radar.

Load the signal into the data cube.

Np = 128; cube = zeros(Nr,Np); for n = 1:Np [sensorpos,sensorvel] = radarmotion(pri); [tgtpos,tgtvel] = tgtmotion(pri); [tgtrng,tgtang] = rangeangle(tgtpos,sensorpos); sig = waveform(); [txsig,txstatus] = transmitter(sig); txsig = radiator(txsig,tgtang); txsig = channel(txsig,sensorpos,tgtpos,sensorvel,tgtvel); tgtsig = target(txsig); rxcol = collector(tgtsig,tgtang); rxsig = receiver(rxcol); cube(:,n) = rxsig; end

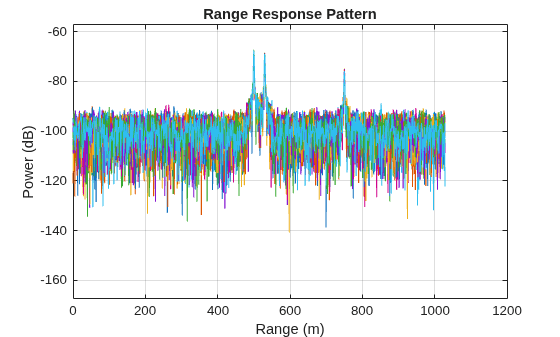

Create a `phased.RangeResponse`

System object in matched filter mode. Then, call the `plotResponse`

method to show the first 20 pulses.

matchcoeff = getMatchedFilter(waveform); rangeresp = phased.RangeResponse('SampleRate',fs,'PropagationSpeed',c); plotResponse(rangeresp,cube(:,1:20),matchcoeff);

**Introduced in R2017a**
