# interpolateMagneticFlux

Interpolate magnetic flux density in magnetostatic result at arbitrary spatial locations

## Syntax

## Description

returns the interpolated magnetic flux density at the 2-D points specified in
`Bintrp`

= interpolateMagneticFlux(`magnetostaticresults`

,`xq`

,`yq`

)`xq`

and `yq`

.

uses 3-D points specified in `Bintrp`

= interpolateMagneticFlux(`magnetostaticresults`

,`xq`

,`yq`

,`zq`

)`xq`

, `yq`

, and
`zq`

.

returns the interpolated magnetic flux density at the points specified in
`Bintrp`

= interpolateMagneticFlux(`magnetostaticresults`

,`querypoints`

)`querypoints`

.

## Examples

### Interpolate Magnetic Flux Density in 2-D Magnetostatic Analysis

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

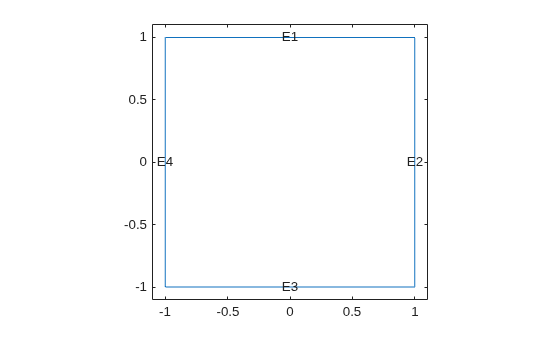

Create a square geometry and include it in the model. Plot the geometry with the edge labels.

R1 = [3,4,-1,1,1,-1,1,1,-1,-1]'; g = decsg(R1,'R1',('R1')'); geometryFromEdges(emagmodel,g); pdegplot(emagmodel,"EdgeLabels","on") xlim([-1.5 1.5]) axis equal

Specify the vacuum permeability in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614E-6;

Specify the relative permeability of the material.

`electromagneticProperties(emagmodel,"RelativePermeability",5000);`

Apply the magnetic potential boundary conditions on the boundaries of the square.

electromagneticBC(emagmodel,"MagneticPotential",0,"Edge",[1 3]); electromagneticBC(emagmodel,"MagneticPotential",0.01,"Edge",[2 4]);

Specify the current density for the entire geometry.

`electromagneticSource(emagmodel,"CurrentDensity",0.5);`

Generate the mesh.

generateMesh(emagmodel);

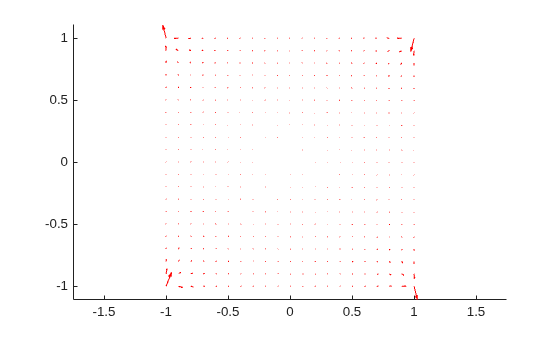

Solve the model and plot the magnetic flux density.

R = solve(emagmodel); pdeplot(emagmodel,"FlowData",[R.MagneticFluxDensity.Bx ... R.MagneticFluxDensity.By]) axis equal

Interpolate the resulting electric flux density to a grid covering the central portion of the geometry, for `x`

and `y`

from `-0.5`

to `0.5`

.

v = linspace(-0.5,0.5,51); [X,Y] = meshgrid(v); Bintrp = interpolateMagneticFlux(R,X,Y)

Bintrp = FEStruct with properties: Bx: [2601x1 double] By: [2601x1 double]

Reshape `Bintrp.Bx`

and `Bintrp.By`

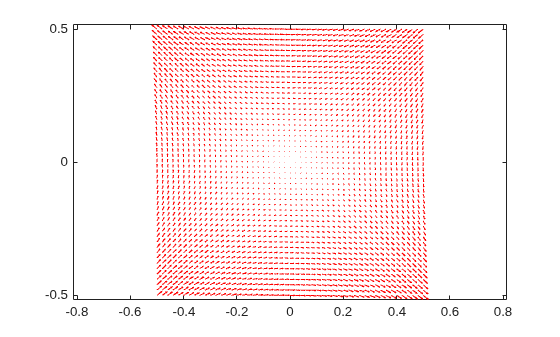

and plot the resulting magnetic flux density.

BintrpX = reshape(Bintrp.Bx,size(X)); BintrpY = reshape(Bintrp.By,size(Y)); figure quiver(X,Y,BintrpX,BintrpY,"Color","red")

Alternatively, you can specify the grid by using a matrix of query points.

querypoints = [X(:),Y(:)]'; Bintrp = interpolateMagneticFlux(R,querypoints);

### Interpolate Magnetic Flux Density in 3-D Magnetostatic Analysis

Create an electromagnetic model for magnetostatic analysis.

emagmodel = createpde("electromagnetic","magnetostatic");

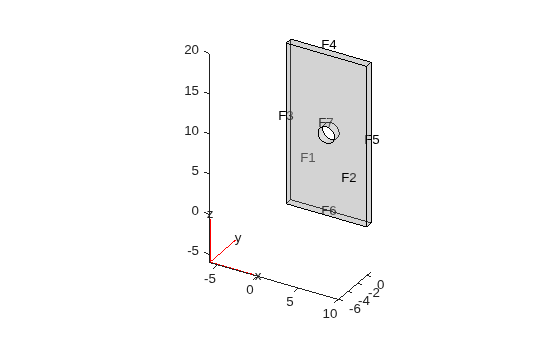

Import and plot the geometry representing a plate with a hole.

importGeometry(emagmodel,"PlateHoleSolid.stl"); pdegplot(emagmodel,"FaceLabels","on","FaceAlpha",0.3)

Specify the vacuum permeability value in the SI system of units.

emagmodel.VacuumPermeability = 1.2566370614E-6;

Specify the relative permeability of the material.

`electromagneticProperties(emagmodel,"RelativePermeability",5000);`

Specify the current density for the entire geometry.

`electromagneticSource(emagmodel,"CurrentDensity",[0;0;0.5]);`

Apply the magnetic potential boundary conditions on the side faces and the face bordering the hole.

electromagneticBC(emagmodel,"MagneticPotential",[0;0;0],"Face",3:6); electromagneticBC(emagmodel,"MagneticPotential",[0;0;0.01],"Face",7);

Generate a mesh.

generateMesh(emagmodel);

Solve the model.

R = solve(emagmodel)

R = MagnetostaticResults with properties: MagneticPotential: [1x1 FEStruct] MagneticField: [1x1 FEStruct] MagneticFluxDensity: [1x1 FEStruct] Mesh: [1x1 FEMesh]

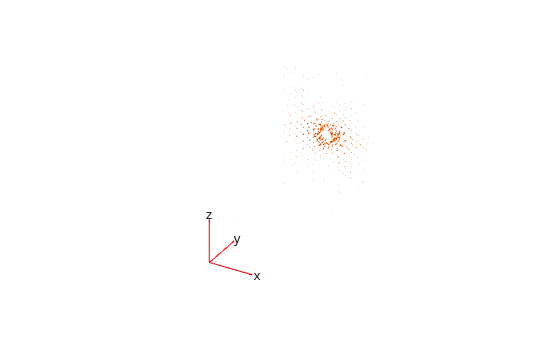

Plot the magnetic flux density.

pdeplot3D(emagmodel,"FlowData",[R.MagneticFluxDensity.Bx ... R.MagneticFluxDensity.By ... R.MagneticFluxDensity.Bz])

Interpolate the resulting magnetic flux density to a grid covering the central portion of the geometry, for `x`

, `y`

, and `z`

.

x = linspace(3,7,5); y = linspace(0,1,5); z = linspace(8,12,5); [X,Y,Z] = meshgrid(x,y,z); Bintrp = interpolateMagneticFlux(R,X,Y,Z)

Bintrp = FEStruct with properties: Bx: [125x1 double] By: [125x1 double] Bz: [125x1 double]

Reshape `Bintrp.Bx`

, `Bintrp.By`

, and `Bintrp.Bz`

.

BintrpX = reshape(Bintrp.Bx,size(X)); BintrpY = reshape(Bintrp.By,size(Y)); BintrpZ = reshape(Bintrp.Bz,size(Z));

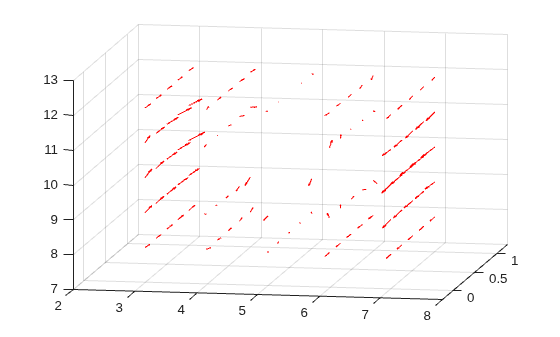

Plot the resulting magnetic flux density.

figure quiver3(X,Y,Z,BintrpX,BintrpY,BintrpZ,"Color","red") view([30 10]) view([10 15])

## Input Arguments

`magnetostaticresults`

— Solution of magnetostatic problem

`MagnetostaticResults`

object

Solution of a magnetostatic problem, specified as a `MagnetostaticResults`

object. Create `magnetostaticresults`

using the `solve`

function.

**Example: **`magnetostaticresults = solve(emagmodel)`

`xq`

— *x*-coordinate query points

real array

*x*-coordinate query points, specified as a real array.
`interpolateMagneticFlux`

evaluates the magnetic flux density at the
2-D coordinate points `[xq(i) yq(i)]`

or at the 3-D coordinate points
`[xq(i) yq(i) zq(i)]`

for every `i`

. Because of
this, `xq`

, `yq`

, and (if present)
`zq`

must have the same number of entries.

`interpolateMagneticFlux`

converts the query points to column
vectors `xq(:)`

and `yq(:)`

. It returns magnetic flux
density as a column vector of the same size. To ensure that the dimensions of the
returned solution are consistent with the dimensions of the original query points, use
`reshape`

. For example, use ```
BintrpX =
reshape(Bintrp.Bx,size(xq))
```

.

**Example: **`xq = [0.5 0.5 0.75 0.75]`

**Data Types: **`double`

`yq`

— *y*-coordinate query points

real array

*y*-coordinate query points, specified as a real array.
`interpolateMagneticFlux`

evaluates the magnetic flux density at the
2-D coordinate points `[xq(i) yq(i)]`

or at the 3-D coordinate points
`[xq(i) yq(i) zq(i)]`

for every `i`

. Because of
this, `xq`

, `yq`

, and (if present)
`zq`

must have the same number of entries.

`interpolateMagneticFlux`

converts the query points to column
vectors `xq(:)`

, `yq(:)`

, and (if present)
`zq(:)`

. It returns magnetic flux density as a column vector of the
same size. To ensure that the dimensions of the returned solution are consistent with
the dimensions of the original query points, use `reshape`

. For
example, use `BintrpY = reshape(Bintrp.By,size(yq))`

.

**Example: **`yq = [1 2 0 0.5]`

**Data Types: **`double`

`zq`

— *z*-coordinate query points

real array

*z*-coordinate query points, specified as a real array.
`interpolateMagneticFlux`

evaluates the magnetic flux density at the
3-D coordinate points `[xq(i) yq(i) zq(i)]`

. Therefore,
`xq`

, `yq`

, and `zq`

must have
the same number of entries.

`interpolateMagneticFlux`

converts the query points to column
vectors `xq(:)`

, `yq(:)`

, and
`zq(:)`

. It returns magnetic flux density values as a column vector of
the same size. To ensure that the dimensions of the returned solution are consistent
with the dimensions of the original query points, use `reshape`

. For
example, use `BintrpZ = reshape(Bintrp.Bz,size(zq))`

.

**Example: **`zq = [1 1 0 1.5]`

**Data Types: **`double`

`querypoints`

— Query points

real matrix

Query points, specified as a real matrix with two rows for 2-D geometry or three
rows for 3-D geometry. `interpolateMagneticFlux`

evaluates the magnetic
flux density at the coordinate points `querypoints(:,i)`

for every
`i`

, so each column of `querypoints`

contains
exactly one 2-D or 3-D query point.

**Example: **For a 2-D geometry, ```
querypoints = [0.5 0.5 0.75 0.75; 1 2 0
0.5]
```

**Data Types: **`double`

## Output Arguments

`Bintrp`

— Magnetic flux density at query points

`FEStruct`

Magnetic flux density at query points, returned as an `FEStruct`

object with the properties representing the spatial components of the magnetic flux
density at the query points. For query points that are outside the geometry,
`Bintrp.Bx(i)`

, `Bintrp.By(i)`

, and
`Bintrp.Bz(i)`

are `NaN`

. Properties of an
`FEStruct`

object are read-only.

## Version History

**Introduced in R2021a**
