findElectromagneticBC

Find electromagnetic boundary conditions assigned to geometric region

    Description

    example

    emBC = findElectromagneticBC(emagmodel.BoundaryConditions,RegionType,RegionID) returns the boundary conditions assigned to the specified region of the specified model.

    Examples

    collapse all

    Create an electromagnetic model for magnetostatic analysis.

    emagmodel = createpde("electromagnetic","magnetostatic");

    Include an L-shaped membrane geometry in the model and plot it with the face labels.

    geometryFromEdges(emagmodel,@lshapeg);
    pdegplot(emagmodel,"FaceLabels","on")
    ylim([-1.1 1.1])
    axis equal

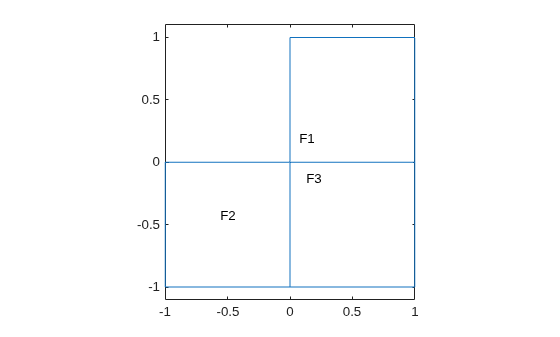

    Figure contains an axes object. The axes object contains 4 objects of type line, text.

    Assign magnetic potential values to edges 1 and 2.

    electromagneticBC(emagmodel,"Edge",1,"MagneticPotential",1);
    electromagneticBC(emagmodel,"Edge",2,"MagneticPotential",0);

    Check the boundary condition specifications for edges 1 and 2.

    emBC = findElectromagneticBC(emagmodel.BoundaryConditions,"Edge",1:2);
    emBC(1)
    ans =
      ElectromagneticBCAssignment with properties:

                 RegionID: 1
               RegionType: 'Edge'
               Vectorized: 'off'
        MagneticPotential: 1


    emBC(2)
    ans =
      ElectromagneticBCAssignment with properties:

                 RegionID: 2
               RegionType: 'Edge'
               Vectorized: 'off'
        MagneticPotential: 0



    Create an electromagnetic model for electrostatic analysis.

    emagmodel = createpde("electromagnetic","electrostatic");

    Import and plot a geometry representing a plate with a hole.

    gm = importGeometry(emagmodel,"PlateHoleSolid.stl");
    pdegplot(gm,"FaceLabels","on","FaceAlpha",0.3)

    Figure contains an axes object. The axes object contains 3 objects of type quiver, patch, line.

    Apply the voltage boundary conditions on the side faces and the face bordering the hole.

    electromagneticBC(emagmodel,"Voltage",0,"Face",3:6);
    electromagneticBC(emagmodel,"Voltage",1000,"Face",7);

    Check the boundary condition specifications for faces 4, 5, and 7.

    emBC = findElectromagneticBC(emagmodel.BoundaryConditions, ...
                                 "Face",[4 5 7]);
    emBC(1)
    ans =
      ElectromagneticBCAssignment with properties:

          RegionID: [3 4 5 6]
        RegionType: 'Face'
        Vectorized: 'off'
           Voltage: 0


    emBC(2)
    ans =
      ElectromagneticBCAssignment with properties:

          RegionID: [3 4 5 6]
        RegionType: 'Face'
        Vectorized: 'off'
           Voltage: 0


    emBC(3)
    ans =
      ElectromagneticBCAssignment with properties:

          RegionID: 7
        RegionType: 'Face'
        Vectorized: 'off'
           Voltage: 1000



    Input Arguments

    collapse all

    Boundary conditions of an electromagnetic model, specified as the BoundaryConditions property of the model.

    Example: findElectromagneticBC(emagmodel.BoundaryConditions,"Edge",1)

    Geometric region type, specified as "Edge" for a 2-D model or "Face" for a 3-D model.

    Data Types: char | string

    Region ID, specified as a vector of positive integers. Find the edge or face IDs by using pdegplot with the "EdgeLabels" or "FaceLabels" name-value argument set to "on".

    Data Types: double

    Output Arguments

    collapse all

    Electromagnetic boundary condition assignment, returned as an ElectromagneticBCAssignment object. For more information, see ElectromagneticBCAssignment Properties.

    Version History

    Introduced in R2021a
