union

Boolean union of 3-D geometries

Since R2025a

Syntax

g3 = union(g1,g2)

g3 = union(gv)

g3 = union(___,KeepBoundaries=boundaries)

Description

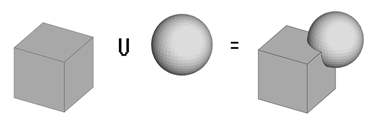

g3 = union(g1,g2) merges the 3-D geometries g1 and g2 into one geometry g3.

In R2026a: g3 = union(gv) merges the 3-D geometries specified by the vector gv into one geometry g3.

g3 = union(___,KeepBoundaries=boundaries) specifies whether the function preserves the boundaries of the geometries when merging them.

Examples

Merge Cylinder and Cuboid

Merge geometries representing a cylinder and a cuboid into one geometry.

Create and plot a hollow cylinder geometry.

gcyl = multicylinder([4 5],10,Void=[true false]);

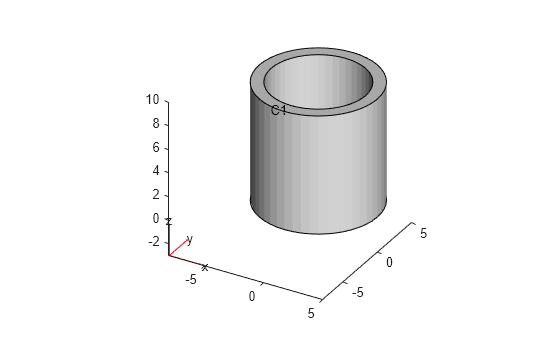

pdegplot(gcyl,CellLabels="on")

Create and plot a single cuboid geometry.

gcube = multicuboid(sqrt(50),sqrt(50),10);

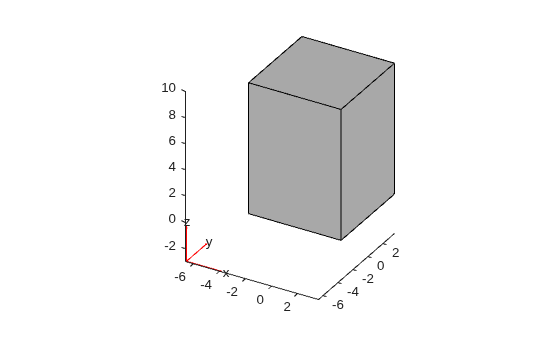

pdegplot(gcube)

Convert both geometries to fegeometry objects.

gcyl = fegeometry(gcyl);
gcube = fegeometry(gcube);

Merge the geometries into one by using the Boolean union operation.

g = union(gcyl,gcube);

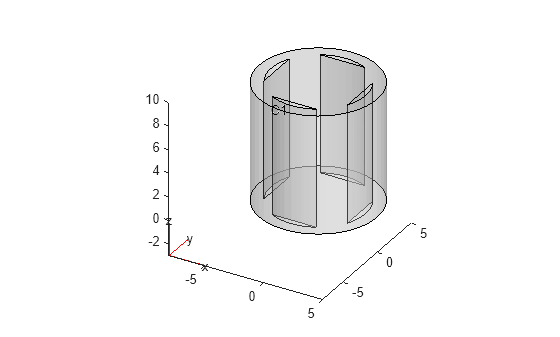

Plot the resulting geometry with cell labels.

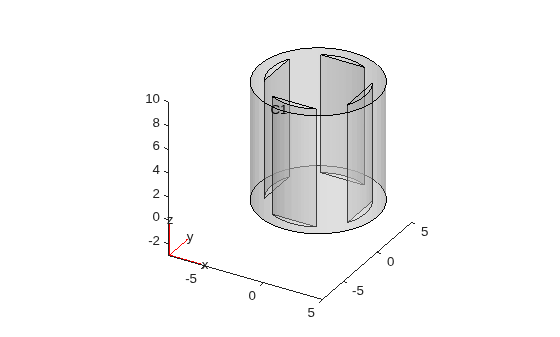

pdegplot(g,CellLabels="on",FaceAlpha=0.3)

Create Heat Sink Geometry

Create a geometry representing a heat sink with a base plate and 12 cylindrical fins.

First, create and plot a geometry of the base.

gBase = multicuboid(0.01,0.008,0.0005);
gBase = translate(gBase,[0.005,0.004,0]);
gBase = fegeometry(gBase);

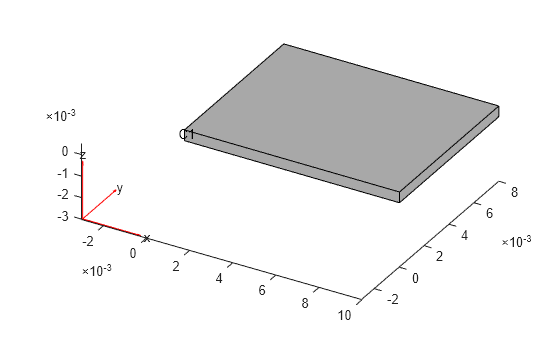

pdegplot(gBase,CellLabels="on")

Create a geometry representing one fin.

gFin = multicylinder(0.0005,0.005);
gFin = fegeometry(gFin);

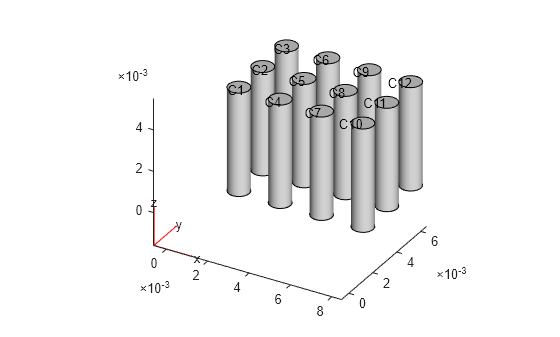

Now, create geometries representing 12 fins by shifting the original fin to locations on top of the base.

g = fegeometry;
k = 0;
for i = 0.002:0.002:0.008
   for j = 0.002:0.002:0.006
       k = k + 1;
       gFinT(k) = translate(gFin,[i,j,0.0005]);
   end
end

Merge the geometry of the base with the geometries of the fins by using the Boolean union operation.

g = union(gBase,gFinT);

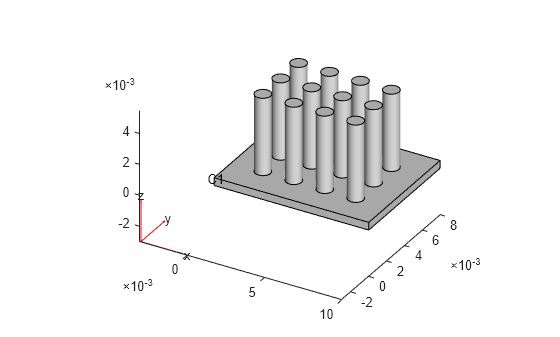

Plot the resulting heat sink geometry with cell labels.

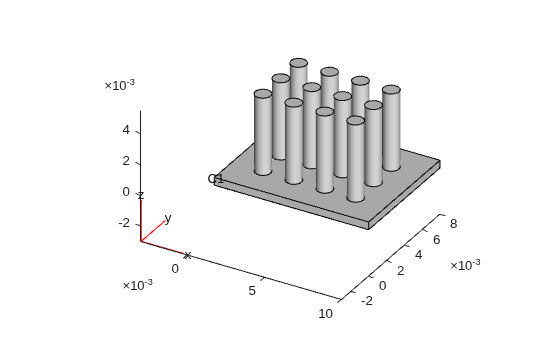

pdegplot(g,CellLabels="on")

Preserve Boundaries

Merge two cubes into one geometry while preserving the original boundaries.

Create a geometry of a unit cube.

g1 = fegeometry(multicuboid(1,1,1));

Create the second cube by moving the original cube along the z-axis.

g2 = translate(g1,[0 0 0.7]);

Merge the two geometries into one by using the Boolean union operation. By default, the union function does not preserve any boundaries that become internal in the merged geometry. Plot the resulting geometry with cell labels.

g = union(g1,g2);

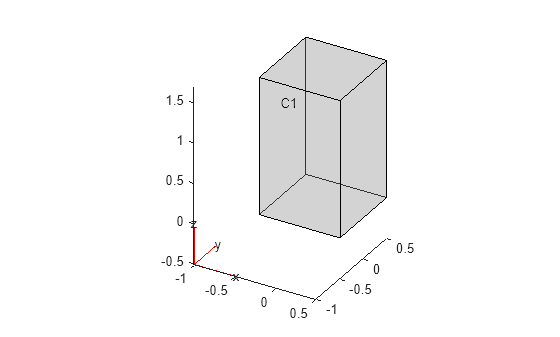

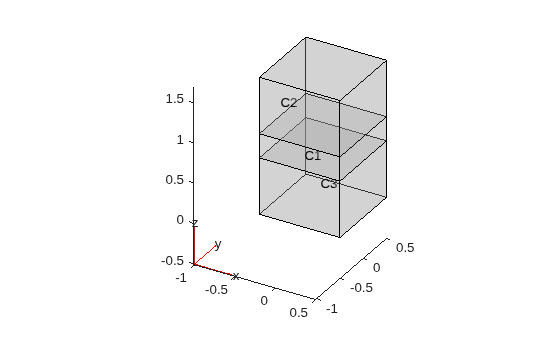

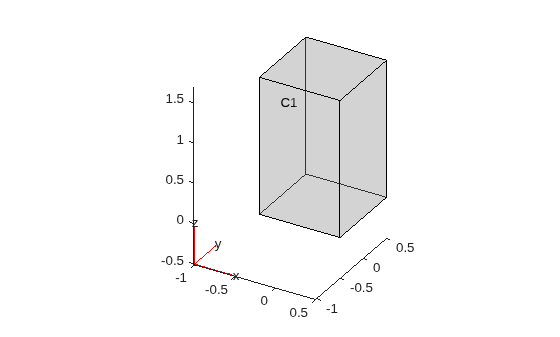

pdegplot(g,FaceAlpha=0.3,CellLabels="on")

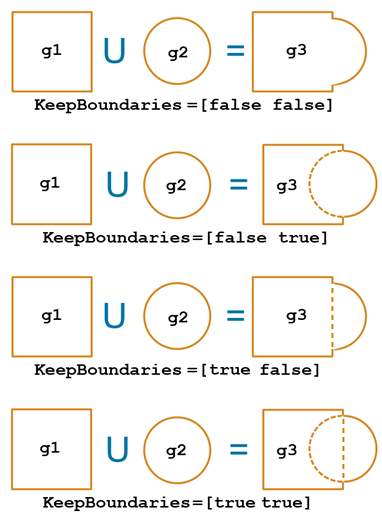

Merge the same two geometries, but this time use the KeepBoundaries argument to preserve all boundaries of both geometries. Plot the resulting geometries.

g = union(g1,g2,KeepBoundaries=[true true]);

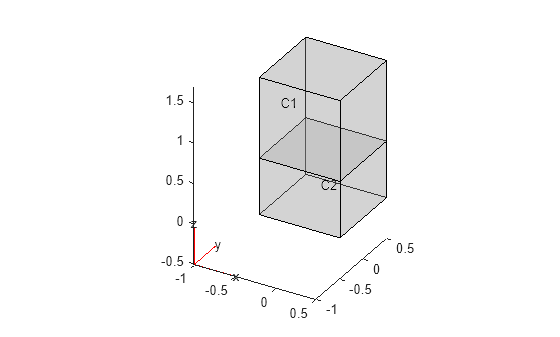

pdegplot(g,FaceAlpha=0.3,CellLabels="on")

Merge the geometries again. This time, specify that the merged geometry must preserve all boundaries of the second geometry (g2) but not the boundaries of the first geometry (g1) that become internal in the merged geometry. Plot the resulting geometry.

g = union(g1,g2,KeepBoundaries=[false true]);
pdegplot(g,FaceAlpha=0.3,CellLabels="on")

Combine Multiple Geometries

Since R2026a

Combine multiple cubes in one geometry.

Create a geometry representing a unit cube.

gmcube = fegeometry(multicuboid(1,1,1));

Create a vector of geometries by rotating the cube by 30 and 60 degrees.

angle = [0 30 60];
for k = 1:numel(angle)
    gv(k) = rotate(gmcube,angle(k));
end

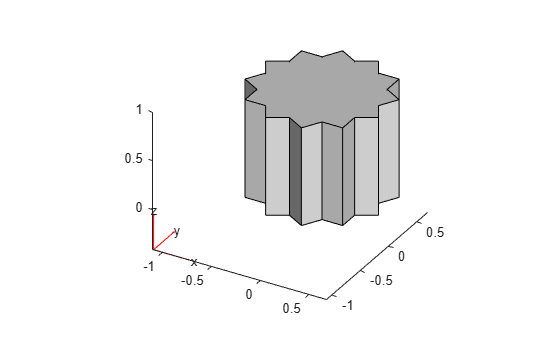

Combine the geometries and plot the result.

gm = union(gv);
pdegplot(gm)

Now, combine the geometries while preserving the original boundaries of each cube.

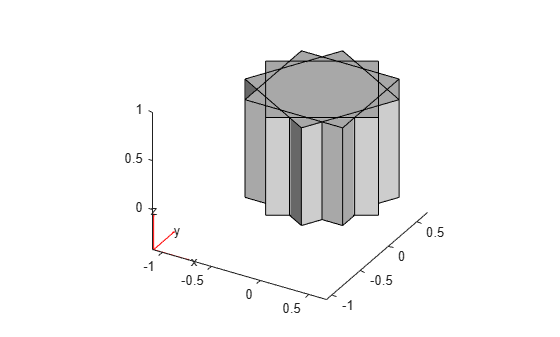

gm = union(gv,KeepBoundaries=true);
pdegplot(gm)

Input Arguments

g1 — 3-D geometry

fegeometry object | vector of fegeometry objects

3-D geometry, specified as an fegeometry object or a vector of fegeometry objects.

g2 — 3-D geometry

fegeometry object | vector of fegeometry objects

3-D geometry, specified as an fegeometry object or a vector of fegeometry objects.

gv — 3-D geometries to merge

vector of fegeometry objects

Since R2026a

3-D geometries to merge, specified as a vector of fegeometry objects.

boundaries — Geometry boundaries to preserve

vector of false values (default) | true | false | vector of logical values

Geometry boundaries to preserve, specified as true, false, or a vector of logical values.

The values indicate whether the boundaries of the original geometries must appear in the merged geometry. For example, when you merge two geometries, g1 and g2, KeepBoundaries=[false true] specifies that the merged geometry must preserve all boundaries of the second geometry (g2) but not the boundaries of the first geometry (g1) that become internal in the merged geometry.

If you specify true or false, the function expands the specified value into a vector or two vectors of the required length.

For the syntax with one argument, gv, boundaries must be true, false, or a vector of length equal to the number of the merging geometries. For the syntax with two arguments, g1 and g2, boundaries must be true, false, or a two-element vector whose first element applies to all geometries specified in g1, and whose second element applies to all geometries specified in g2.

Output Arguments

g3 — Merged geometry

fegeometry object

Merged geometry, returned as an fegeometry object.

Limitations

• union works only on 3-D geometries. Use decsg to merge 2-D geometries.

Tips

• When creating a geometry, union uses the default threshold of 44 degrees for the dihedral angle between adjacent triangles. If the angle between the triangles exceeds the threshold, the edge becomes a topological (feature) edge separating two faces. If the angle does not exceed the threshold, union does not create a topological edge with two separate faces, unless the function can create the edge based on other criteria. Instead, union creates one face.

  To use a different feature angle value, create a triangulation object from the resulting geometry g3, and then convert the object back to an fegeometry object. Set the value of the FeatureAngle argument as a number between 10 and 90. The specified FeatureAngle value represents degrees.

  tr = triangulation(g3);
  g3 = fegeometry(tr,FeatureAngle=15)

  The triangulation function accepts only single-domain geometries, so g3 must have one cell.

Version History

Introduced in R2025a

R2026a: Merge several geometries

The union function accepts one or two vectors of geometries to merge.
