edgeLoad
Description
An edgeLoad
object contains a description of a load on an edge
of a geometry. An femodel
object contains
an array of edgeLoad
objects in its EdgeLoad
property.
Creation
Description
model.EdgeLoad(
creates an EdgeID
) = edgeLoad(Name=Value)edgeLoad
object and sets properties using one
or more name-value arguments. This syntax assigns the specified structural, thermal, or
electromagnetic load to the specified edges of the geometry stored in the
femodel
object model
. For example,
model.EdgeLoad([1 2]) = edgeLoad(SurfaceTraction=[0 100])
specifies
the surface traction on edges 1 and 2.
Input Arguments
EdgeID
— Edge IDs
vector of positive integers
Edge IDs, specified as a vector of positive integers. Find the edge IDs using
pdegplot
with the
EdgeLabels
value set to "on"
.
Data Types: double
Properties
Heat
— Heat source term
real number | function handle
Heat source term, specified as a real number or function handle. Use a function handle to specify an internal heat source that depends on space, time, or temperature. For details, see Nonconstant Parameters of Finite Element Model.
Pressure
— Pressure normal to boundary
real number | function handle
Pressure normal to the boundary, specified as a real number or function handle. A positive-value pressure acts into the boundary (for example, compression), while a negative-value pressure acts away from the boundary (for example, suction).
If you specify Pressure
as a function handle, the function must
return a row vector where each column corresponds to the value of pressure at the
boundary coordinates provided by the solver. For a transient structural model,
Pressure
also can be a function of time. For a frequency response
structural model, Pressure
can be a function of frequency (when
specified as a function handle) or a constant pressure with the same magnitude for a
broad frequency spectrum. For details, see Nonconstant Parameters of Finite Element Model.
Data Types: double
| function_handle
ConvectionCoefficient
— Convection to ambient boundary condition
real number | function handle
Convection to ambient boundary condition, specified as a real number or function handle. Use a function handle to specify a convection coefficient that depends on space and time. For details, see Nonconstant Parameters of Finite Element Model.
Specify ambient temperature using the AmbientTemperature
property. The value of ConvectionCoefficient
is positive for heat
convection into the ambient environment.
Data Types: double
| function_handle
AmbientTemperature
— Ambient temperature
real number
Ambient temperature, specified as a real number. The ambient temperature value is required for specifying convection and radiation boundary conditions.
Data Types: double
Emissivity
— Radiation emissivity coefficient
number in the range (0, 1)
Radiation emissivity coefficient, specified as a number in the range (0, 1).
Specify ambient temperature using the AmbientTemperature
property
and the Stefan-Boltzmann constant using the femodel
properties. The value of Emissivity
is positive for heat radiation
into the ambient environment.
Data Types: double
SurfaceTraction
— Normal and tangential distributed forces on boundary
vector | function handle
Normal and tangential distributed forces on the boundary (in the global Cartesian coordinate system), specified as a vector of two elements or a function handle.
If you specify SurfaceTraction
as a function handle, the function
must return a two-row matrix. Each column of the matrix corresponds to the surface
traction vector at the boundary coordinates provided by the solver. For a transient or
frequency response analysis, surface traction also can be a function of time or
frequency, respectively. For details, see Nonconstant Parameters of Finite Element Model.
Data Types: double
| function_handle
TranslationalStiffness
— Distributed spring stiffness
vector | function handle
Distributed spring stiffness for each translational direction used to model an elastic foundation, specified as a vector of two elements or a function handle.
If you specify TranslationalStiffness
as a function handle, the
function must return a two-row matrix. Each column of the matrix corresponds to the
stiffness vector at the boundary coordinates provided by the solver. For a transient or
frequency response analysis, translational stiffness also can be a function of time or
frequency, respectively. For details, see Nonconstant Parameters of Finite Element Model.
Data Types: double
| function_handle
SurfaceCurrentDensity
— Surface current density
real number | function handle
Surface current density in the direction normal to the boundary, specified as a real number or function handle. The solver uses a surface current density boundary condition for a DC conduction analysis. Use a function handle to specify a surface current density that depends on the coordinates. For details, see Nonconstant Parameters of Finite Element Model.
Data Types: double
| function_handle
Examples
Heat Coming Through Edge of Square
Specify a heat flux through the edge of a square for an femodel
object representing a thermal problem.
Create an femodel
object for solving a steady-state thermal problem, and assign the unit square geometry to the model.
model = femodel(AnalysisType="thermalSteady", ... Geometry=@squareg);

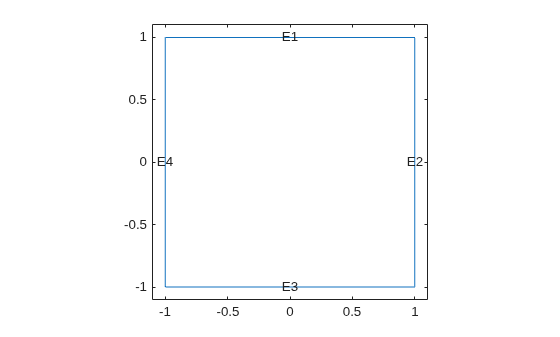

Plot the geometry with the edge labels.
pdegplot(model.Geometry,EdgeLabels="on");
xlim([-1.1 1.1])
ylim([-1.1 1.1])
Specify the heat flux boundary load on edge 3.
model.EdgeLoad(3) = edgeLoad(Heat=20); model.EdgeLoad
ans = 1x4 edgeLoad array Properties for analysis type: thermalSteady Index Heat 1 [] 2 [] 3 20 4 [] Show all properties
Version History
Introduced in R2023a
