# Work with Remote GPUs

*Since R2024a*

This example shows how to run MATLAB® code on multiple remote GPUs in a cluster.

If you have access to a cluster with GPU computing resources, you can use parallel language to access and use those GPUs for computation. This example shows how to access and use GPU resources even if your local machine does not have a supported GPU.

### Develop Your Algorithm

Start by prototyping your algorithm on your local machine. This example calculates the standard map, though the steps of setting up a cluster and running code on remote GPUs can be used to accelerate any code that runs on a GPU.

The standard map shows the angular position and angular momentum of a rotator after it has received a number of kicks. The rotator is a stick which can rotate frictionlessly about one of its ends, and which is periodically kicked on the other tip. The motion of a kicked rotator and is defined by

$${\mathit{p}}_{\mathit{n}+1}={\mathit{p}}_{\mathit{n}}+\mathit{K}\cdot \mathrm{sin}\left({\theta}_{\mathit{n}}\text{\hspace{0.17em}}\right)$$

$$\theta {\text{\hspace{0.17em}}}_{\mathit{n}+1}=\theta {\text{\hspace{0.17em}}}_{\mathit{n}}+{\mathit{p}}_{\mathit{n}+1}$$

where $\theta {\text{\hspace{0.17em}}}_{\mathit{n}}$ and ${\mathit{p}}_{\mathit{n}}$ determine the angular position and angular momentum of the rotator after the $\mathit{n}$th kick and the constant $\mathit{K}$ is the intensity of the kicks on the rotator. $\theta {\text{\hspace{0.17em}}}_{\mathit{n}}$ and ${\mathit{p}}_{\mathit{n}}$ are taken modulo $2\pi $.

Define the number of kicks to simulate over, and the number of ${\theta \text{\hspace{0.17em}}}_{0}$ and ${\mathit{p}}_{0}$ values to simulate over.

numKicks = 500; numThetaValues = 100000; numPValues = 10;

Run the simulation on your local machine for `K=0`

. This simulates a free rotator whose angular momentum `p`

remains constant, demonstrating the initial conditions of each simulation. The `simulateRotator`

function is defined at the end of this example and calculates $\theta {\text{\hspace{0.17em}}}_{\mathit{n}}$ and ${\mathit{p}}_{\mathit{n}}$. If you have a GPU on your local machine, convert K to a `gpuArray`

. The `simulateRotator`

function uses the `"like"`

syntax of the `zeros`

function to allocate arrays and perform the simulations on the GPU if `K`

is a `gpuArray`

. Otherwise, the function performs the simulations on the CPU. For information on supported GPU devices, see GPU Computing Requirements.

K = 0; if canUseGPU K = gpuArray(K); end [pN,thetaN] = simulateRotator(numKicks,numThetaValues,numPValues,K);

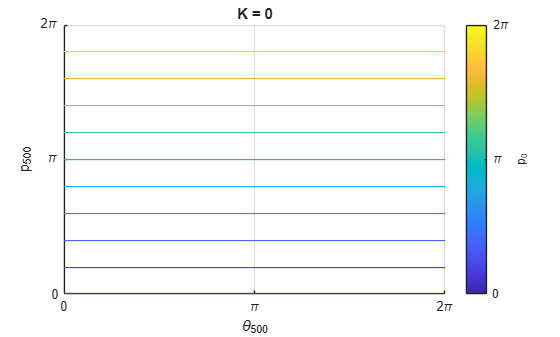

Plot the results of the simulations. The function `plotMap`

is defined at the end of this example.

figure plotMap(numKicks,pN,thetaN,K)

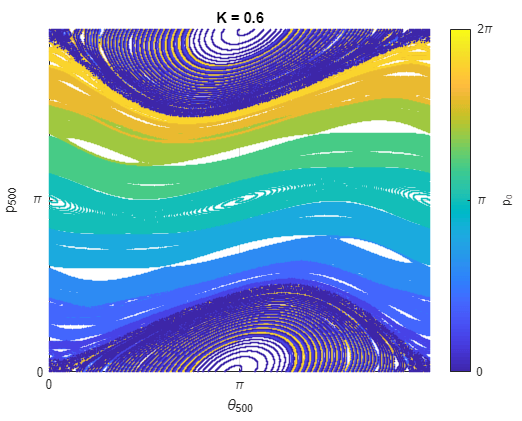

Run the simulations on your local machine for `K=0.6`

and plot the results.

K = 0.6; if canUseGPU K = gpuArray(K); end [pN,thetaN] = simulateRotator(numKicks,numThetaValues,numPValues,K); figure plotMap(numKicks,pN,thetaN,K)

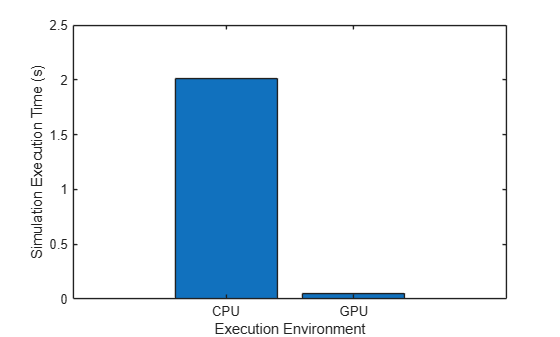

If you have a GPU on your local machine, check whether the simulations run faster on the GPU by timing the execution on the GPU and the CPU using the `gputimeit`

and `timeit`

functions respectively.

if canUseGPU gpu = gpuDevice; disp(gpu.Name + " GPU selected.") tGPU = gputimeit(@() simulateRotator(numKicks,numThetaValues,numPValues,K)) K = gather(K); tCPU = timeit(@() simulateRotator(numKicks,numThetaValues,numPValues,K)) disp("Speedup when running the simulations on a GPU compared to CPU: " + round(tCPU/tGPU) + "x") figure executionEnvironment = ["CPU" "GPU"]; bar(executionEnvironment,[tCPU tGPU]) xlabel("Execution Environment") ylabel("Simulation Execution Time (s)") end

NVIDIA RTX A5000 GPU selected.

tGPU = 0.0517

tCPU = 2.3159

Speedup when running the simulations on a GPU compared to CPU: 45x

### Setup Cluster

This example uses a MATLAB Parallel Server cluster created using Cloud Center. Cloud Center provides an easy way to create and manage cloud computing resources and access them through MATLAB. Once you have created a cluster, you can discover it by using the **Discover Clusters** button. For more information on creating MATLAB Parallel Server clusters using Cloud Center, see Create and Discover Clusters.

Create a cluster object. In this example, the Cloud Center cluster is named `cloudCenterCluster`

and has four machines, each with a single GPU.

`c = parcluster("cloudCenterCluster");`

### Create Pool and Check GPUs

Create a parallel pool a number of workers equal to the number of GPUs in the cluster. Alternatively, to use a batch workflow to offload work to the cluster, for example using `batch`

, you do not need to create a parallel pool.

gpusInCluster = 4; pool = parpool(c,gpusInCluster);

Starting parallel pool (parpool) using the 'cloudCenterCluster' profile ... Connected to parallel pool with 4 workers.

You can use the `gpuDevice`

and `gpuDeviceTable`

functions to inspect GPUs on your local machine. If your local machine does not have a supported GPU, calls to `gpuDevice`

error and calls to `gpuDeviceTable`

return an empty table. To run these functions on the cluster machines, you can run them inside an `spmd`

block (or another parallel language feature that runs code on multiple workers, such as `parfor`

, or `parfeval`

). Verify that the parallel pool has access to the GPUs.

spmd gpu = gpuDevice; worker = getCurrentWorker; disp("Host: " + worker.Host) disp("Using an " + gpu.Name + " GPU") end

Worker 1: Host: ec2-xxxxxxx-240.eu-west-1.compute.amazonaws.com Using an A10G GPU Worker 2: Host: ip-xxxxxxxxx-152.eu-west-1.compute.internal Using an A10G GPU Worker 3: Host: ip-xxxxxxxxx-92.eu-west-1.compute.internal Using an A10G GPU Worker 4: Host: ip-xxxxxxxxx-240.eu-west-1.compute.internal Using an A10G GPU

### Run Simulations on Remote GPUs

After you have created a parallel pool, you can use any of the interactive parallel language constructs provided by MATLAB, for example, `parfor`

, `parfeval`

, and `spmd`

. As each simulation is independent of all of the others in this example, `parfor`

is a good a choice. For more information on choosing between parallel computing language features, see Parallel Language Decision Tables.

Use a `parfor`

-loop to offload the simulation calculation to the parallel workers and return the simulation results to the client session and time the `parfor`

-loop.

K = 0:0.1:3; KTrials = numel(K); parfor idx = 1:KTrials gpuK = gpuArray(K(idx)); [pN,thetaN] = simulateRotator(numKicks,numThetaValues,numPValues,gpuK); pOut(:,:,idx) = pN; thetaOut(:,:,idx) = thetaN; end

Analyzing and transferring files to the workers ...done.

The output arrays `pOut`

and `thetaOut`

contain `gpuArray`

data. If your local machine has a supported GPU, you can immediately access and use this data in the client MATLAB session. If your local machine does not have a supported GPU, call `gather`

before using it in subsequent code.

pOut = gather(pOut); thetaOut = gather(thetaOut);

### Plot Results

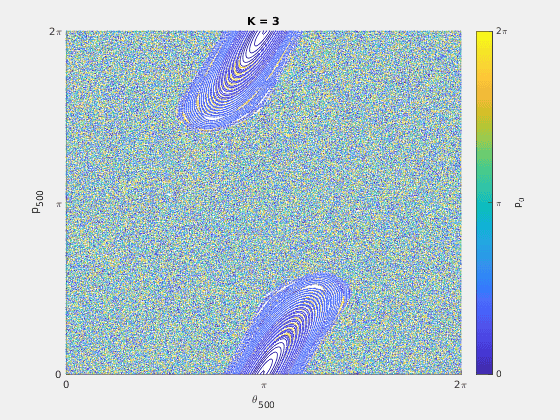

Plot the results for each value of `K`

and capture each plot in a frame.

F(KTrials) = struct("cdata",[],"colormap",[]); fig = figure(Visible="off"); parfor idx=1:KTrials plotMap(numKicks,pOut(:,:,idx),thetaOut(:,:,idx),K(idx)) F(idx) = getframe(fig); end

Play the sequence of frames.

```
fig = figure(Visible="on");
movie(fig,F)
```

### Supporting Functions

`simulateRotator`

The `simulateRotator`

function simulates a kicked rotator for `numKicks`

kicks of intensity `K`

, for a number of initial angular position and angular moment values `numThetaValues`

and `numPValues`

. If `K`

is a `gpuArray`

, then the function performs the simulations on the GPU. Otherwise, the function performs the simulations on the CPU.

function [pN,thetaN] = simulateRotator(numKicks,numThetaValues,numPValues,K) % Create initial values of p and theta. If K is a gpuArray, create p and theta on the GPU. zero = zeros(like=K); p = linspace(zero,(numPValues-1)*2*pi/numPValues,numPValues); theta = linspace(zero,2*pi,numThetaValues); [p,theta] = ndgrid(p,theta); for i=1:numKicks p = p + K*sin(theta); theta = theta + p; end % Modulo 2pi. p = mod(p,2*pi); theta = mod(theta,2*pi); % Convert the final values p and theta to single. pN = single(p); thetaN = single(theta); end

`plotMap`

The `plotMap`

function plots $\theta {\text{\hspace{0.17em}}}_{\mathit{n}}$ and ${\mathit{p}}_{\mathit{n}}$, and colors each point according to its initial angular momentum ${\mathit{p}}_{0}$.

function plotMap(numKicks,p,theta,K) % Color points by initial value of p. [numPValues,numThetaValues] = size(p); c = linspace(0,2*pi,numPValues+1); c(end) = []; c = repmat(c,1,numThetaValues); % Plot final p and theta in a scatter plot. scatter(theta(:),p(:),1,c(:),"filled") % Add title and axes labels. title("K = " + gather(K)) xlabel("\theta_{"+numKicks+"}") ylabel("p_{"+numKicks+"}") xticks([0 pi 2*pi]) yticks([0 pi 2*pi]) xticklabels(["0" "\pi" "2\pi"]) yticklabels(["0" "\pi" "2\pi"]) xlim([0 2*pi]) ylim([0 2*pi]) grid on % Add color bar. cBar = colorbar(Ticks=[0 pi 2*pi],TickLabels={"0" "\pi" "2\pi"}); cBar.Label.String = "p_0"; clim([0 2*pi]) end
