extractEmbeddings

Extract image embeddings from Medical Segment Anything Model (MedSAM) encoder

Since R2024b

    Description

    embeddings = extractEmbeddings(medsam,I) extracts the embeddings of the input medical image I from the encoder of a Medical Segment Anything Model (MedSAM), medsam, by running a forward pass on the image encoder.

    Note

    This functionality requires Deep Learning Toolbox™, Computer Vision Toolbox™, and the Medical Imaging Toolbox™ Model for Medical Segment Anything Model. You can install the Medical Imaging Toolbox Model for Medical Segment Anything Model from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

    example

    Examples

    collapse all

    Create a Medical Segment Anything Model (MedSAM) object.

    medsam = medicalSegmentAnythingModel;

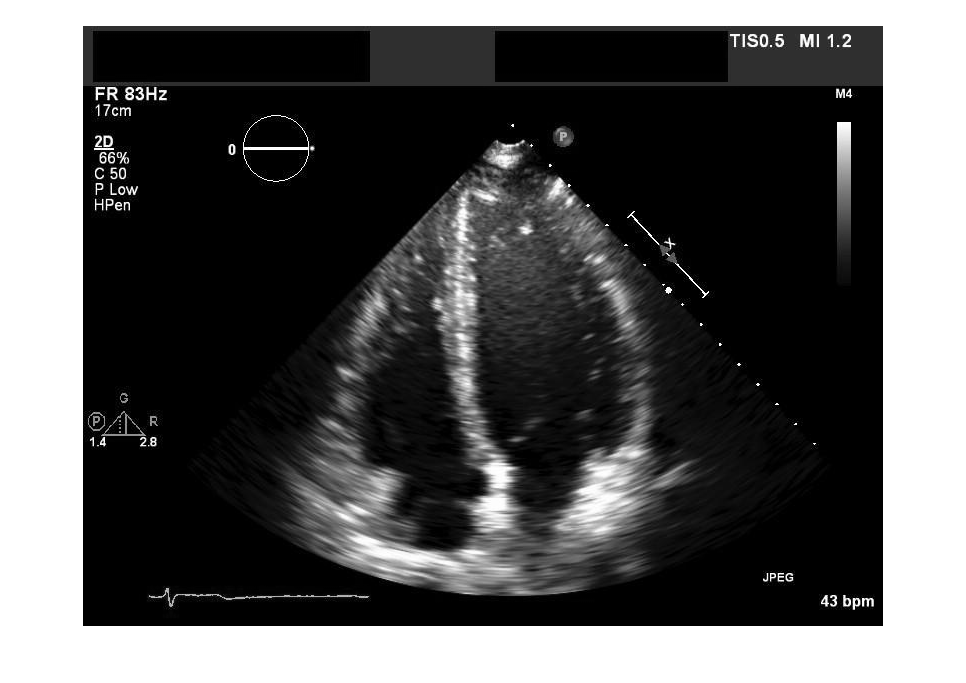

    Load a heart ultrasound image into the workspace. Visualize the image.

    img = imread("heartUltrasoundImage.png");
    figure
    imshow(img,[])

    Extract the image embeddings from the heart ultrasound image.

    embeddings = extractEmbeddings(medsam,img);

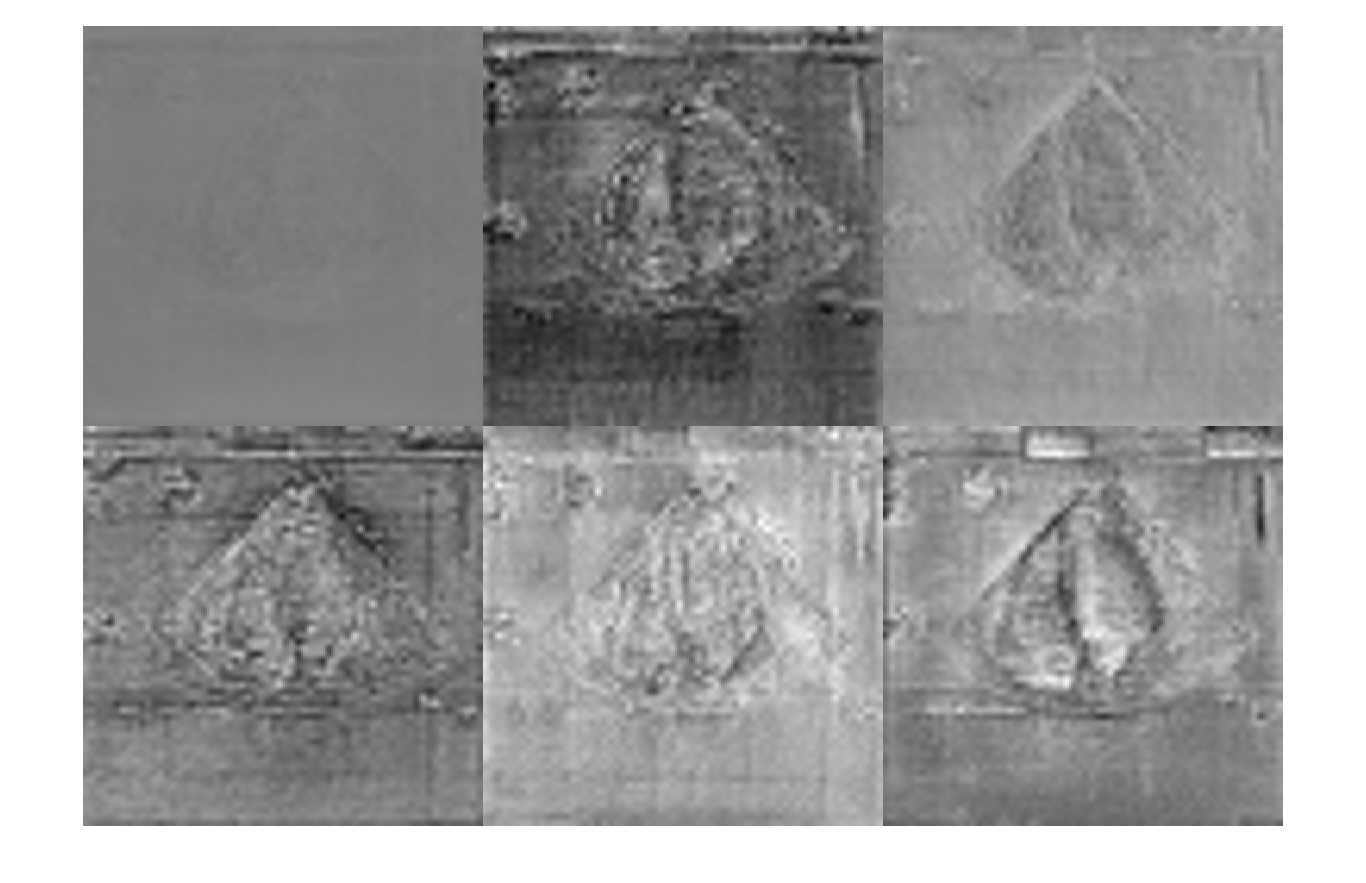

    Visualize some of the embeddings, which capture the features of the image.

    figure
    montage(embeddings(:,:,1:6),DisplayRange=[])

    Input Arguments

    collapse all

    Medical Segment Anything Model, specified as a medicalSegmentAnythingModel object.

    Image or batch of images from which to extract embeddings, specified as a 2-D numeric matrix, 3-D numeric array, or 4-D numeric array depending on the type and number of images.

    Type of ImageNumber of ImagesData Format
    Grayscale imageSingle 2-D image2-D numeric matrix of size H-by-W
    Grayscale imageBatch of B 2-D images4-D numeric array of size H-by-W-by-1-by-B
    RGB imageSingle 2-D image3-D numeric array of size H-by-W-by-3
    RGB imageBatch of B 2-D images4-D numeric array of size H-by-W-by-3-by-B

    H and W are the height and width, respectively, of the input image I. To run the segmentation on a GPU, specify the input image I explicitly as a gpuArray (Parallel Computing Toolbox).

    Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

    Output Arguments

    collapse all

    Image embeddings extracted from the Medical Segment Anything Model encoder, returned as a 64-by-64-by-256 or 64-by-64-by-256-by-B numeric array, depending on the type and number of input images.

    Number of ImagesEmbeddings Format
    Single grayscale or RGB image64-by-64-by-256 array
    Batch of B grayscale or RGB images64-by-64-by-256-by-B array

    The image embeddings are representations of corresponding input images that encode the spatial information, features, and context of the input images.

    Extended Capabilities

    Version History

    Introduced in R2024b
