extractFrame
Description
Examples
Extract Frame from Medical Image Series
Specify the name of an echocardiogram series stored as a DICOM file.
fileName = "heartUltrasoundSequence.dcm";
Create a medical image object for the echocardiogram series.
medImage = medicalImage(fileName);
Check the NumFrames
property value to determine the number of frames in the series. medImage
contains three frames.
numFrames = medImage.NumFrames
numFrames = 3

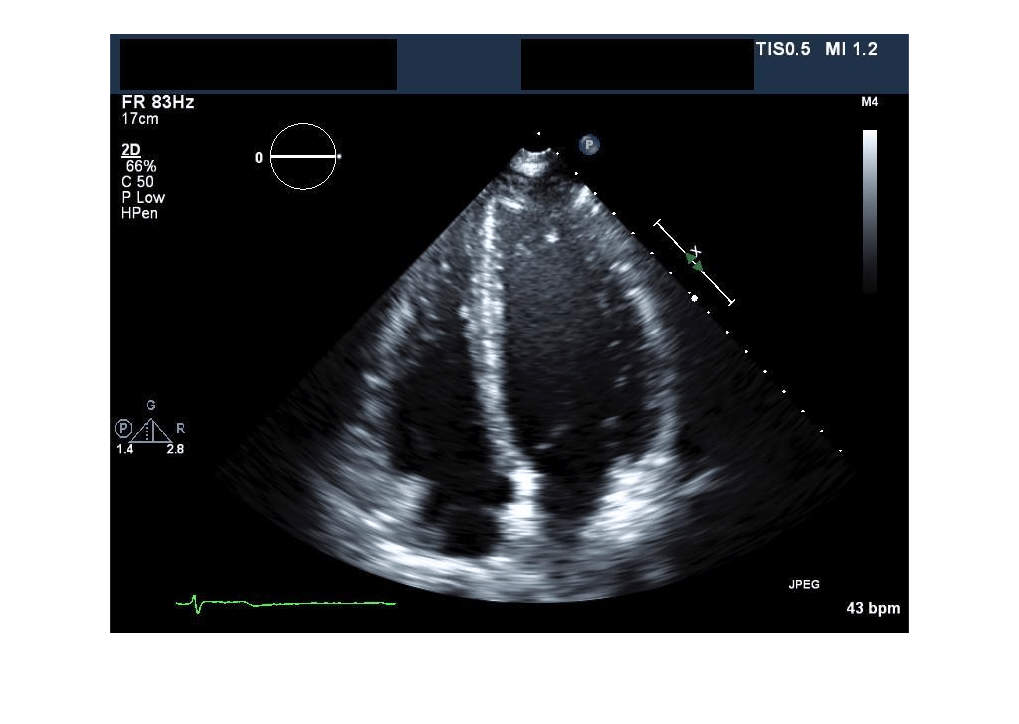

Extract the second frame in the image series. Display the extracted frame image.
X = extractFrame(medImage,2); imshow(X)
Input Arguments
medImage
— Medical image
medicalImage
object
Medical image, specified as a medicalImage
object.
frame
— Frame index
positive integer scalar in range [1, numFrames]
Frame index, specified as a positive integer scalar in the range [1,
numFrames], where numFrames is the number of
frames in the image or series of images in medImage
. The number of
frames is specified by the NumFrames
property of
medImage
.
Data Types: double
Output Arguments
X
— Pixel data of extracted frame
m-by-n numeric matrix
Pixel data of the extracted frame, returned as an
m-by-n numeric matrix, where
m and n are the first two dimensions of the
image frame extracted from medImage
. The X
output matrix is the same data type as the Pixels
property of
medImage
.
Version History
Introduced in R2022b
