reset

Reset graphics object properties

collapse all in page

    Syntax

    reset(h)

    Description

    example

    reset(h) resets all of the properties of the specified graphics object to their default values. Properties that do not have default values are not reset.

    MATLAB® does not reset the Position or Units properties for any graphics object. In addition, if h is a Figure object, then MATLAB does not reset the WindowStyle or PaperUnits properties.

    Examples

    collapse all

    Open Live Script

    Reset the properties of the current axes and the current figure.

    reset(gca)
reset(gcf)

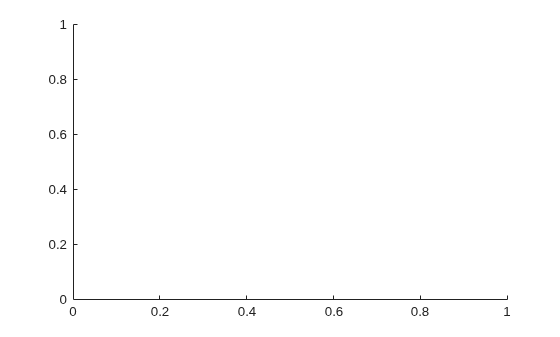

    Figure contains an axes object. The axes object is empty.

    Input Arguments

    collapse all

    Graphics objects, specified as a single object or a vector of objects.

    Limitations

    • The reset function is not supported in app building workflows.

    Version History

    Introduced before R2006a
