convexHull

Convex hull of Delaunay triangulation

Syntax

C = convexHull(DT)

[C,v] = convexHull(DT)

Description

C = convexHull(DT) returns the vertices of the convex hull of a Delaunay triangulation.

[C,v] = convexHull(DT) also returns the area or volume bounded by the convex hull.

Examples

2-D Delaunay Triangulation

Compute and plot the convex hull of a 2-D Delaunay triangulation.

Create a Delaunay triangulation from a set of 2-D points.

rng default;
x = rand([10,1]);
y = rand([10,1]);
DT = delaunayTriangulation(x,y);

Compute the convex hull.

C = convexHull(DT);

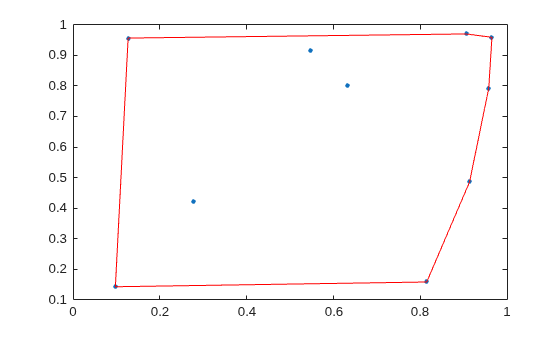

Plot the triangulation and highlight the convex hull in red.

plot(DT.Points(:,1),DT.Points(:,2),'.','MarkerSize',10)
hold on
plot(DT.Points(C,1),DT.Points(C,2),'r')

3-D Delaunay Triangulation

Compute and plot the convex hull of a 3-D Delaunay Triangulation.

Create a Delaunay triangulation from a 3-D set of points.

rng('default');
P = rand([25,3]);
DT = delaunayTriangulation(P);

Compute the convex hull and the volume bounded by the convex hull.

[C,v] = convexHull(DT);

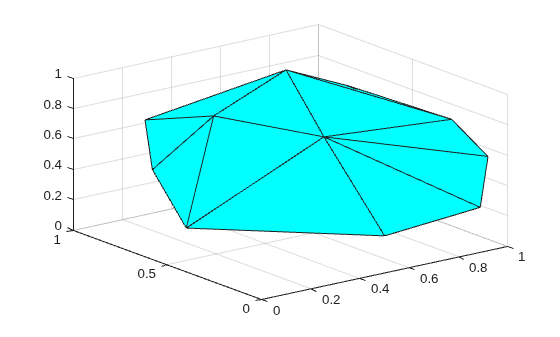

Display the volume and plot the convex hull.

v

v = 0.3943

trisurf(C,DT.Points(:,1),DT.Points(:,2),DT.Points(:,3), ...
       'FaceColor','cyan')

Input Arguments

DT — Delaunay triangulation

scalar

Delaunay triangulation, specified as a scalar delaunayTriangulation object.

Data Types: delaunayTriangulation

Output Arguments

C — Convex hull vertices

column vector | matrix

Convex hull vertices, returned as a column vector or matrix of vertex IDs.

• When DT is a 2-D triangulation, C is a column vector containing the sequence of vertex IDs around the convex hull. The vertex IDs are the row numbers of the vertices in the Points property.

• When DT is 3-D triangulation, C is a 3-column matrix containing the connectivity list of triangle vertices in the convex hull.

Data Types: double

v — Area or volume

scalar

Area or volume of the convex hull, returned as a scalar.

Data Types: double

Version History

Introduced in R2013a
