# bubblelegend

Create legend for bubble chart

Since R2020b

## Syntax

``bubblelegend``
``bubblelegend(titletext)``
``bubblelegend(___,Name,Value)``
``bubblelegend(ax,___)``
``blgd = bubblelegend(___)``

## Description

````bubblelegend` creates a bubble legend in the current axes. Bubble legends are useful for showing the relationship between the bubbles and the size data for charts you create with the `bubblechart`, `bubblechart3`, and `polarbubblechart` functions.```
````bubblelegend(titletext)` specifies a title for the legend. Specify `titletext` as a character vector, cell array of character vectors, or a string array.```

example

````bubblelegend(___,Name,Value)` sets bubble legend properties using one or more name-value pair arguments. Specify the properties after all other input arguments.```

example

````bubblelegend(ax,___)` creates the legend in the specified target axes `ax`. Specify the axes before all other input arguments.```
````blgd = bubblelegend(___)` returns the `BubbleLegend` object. Use `blgd` to modify properties of the legend after creating it. For a list of properties, see BubbleLegend Properties.```

example

## Examples

collapse all

Create a bubble chart and add a bubble legend.

```x = 1:10; y = exp(-0.5*x) + .05 * randn(1,10); sz = randi([20 500],[1,10]); bubblechart(x,y,sz) bubblelegend('Population')```

Create a bubble chart and add a bubble legend. Specify the `'telescopic'` style for a more compact presentation.

```x = 1:15; y = exp(-0.5*x) + .1 * randn(1,15); sz = randi([20 500],[1,15]); bubblechart(x,y,sz) bubblelegend('Population','Style','telescopic');```

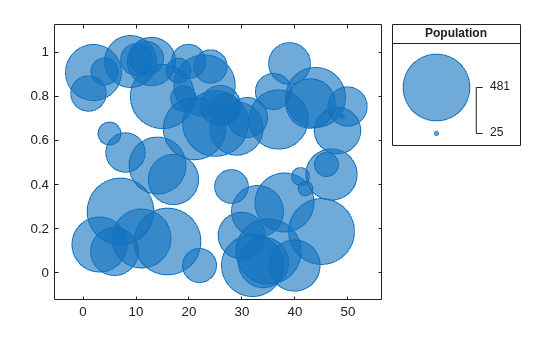

Create a bubble chart. Then call the `bubblelegend` function with a return argument to store the `BubbleLegend` object as `blgd`. Move the legend outside the plot box by setting the `Location` property on the object to `'northeastoutside'`. Display two bubbles instead of three by setting the `NumBubbles` property to `2`.

```x = 1:50; y = rand(1,50); sz = randi([20 500],[1,50]); bubblechart(x,y,sz) % Create bubble legend and set properties blgd = bubblelegend('Population'); blgd.Location = 'northeastoutside'; blgd.NumBubbles = 2;```

When you display multiple data sets with different colors or different types of plot objects, you can include multiple legends. To manage the alignment of the legends, create your chart in a tiled chart layout.

Create two sets of data, and plot them together in the same axes object within a tiled chart layout.

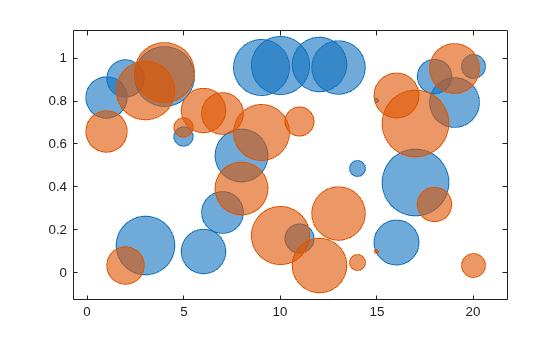

```x = 1:20; y1 = rand(1,20); y2 = rand(1,20); sz1 = randi([20 500],[1,20]); sz2 = randi([20 500],[1,20]); % Plot data in a tiled chart layout t = tiledlayout(1,1); nexttile bubblechart(x,y1,sz1) hold on bubblechart(x,y2,sz1) hold off```

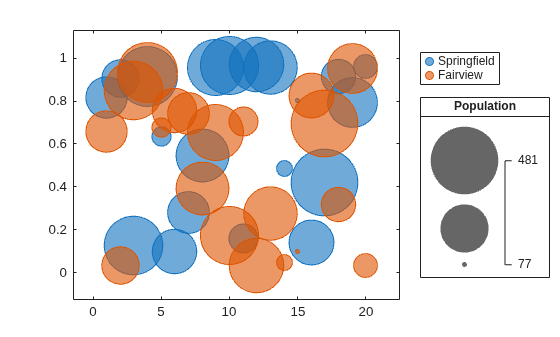

Add a bubble legend for illustrating the bubble sizes, and add another legend for illustrating the colors. Call the `bubblelegend` and `legend` functions using a return argument to store the legend objects. Move the legends to the east tile by setting the `Layout.Tile` property on each object to `'east'`. Placing the legends together in a tile keeps them aligned.

```blgd = bubblelegend('Population'); lgd = legend('Springfield','Fairview'); blgd.Layout.Tile = 'east'; lgd.Layout.Tile = 'east';```

## Input Arguments

collapse all

Title text, specified as a character vector, cell array of character vectors, or string array. To create a multiline title, specify a cell array of character vectors or a string array.

Example: `bubblelegend('My Legend')`

Target axes, specified as an `Axes`, `PolarAxes`, or `GeographicAxes` object. If you do not specify the axes, MATLAB® plots into the current axes, or it creates an `Axes` object if one does not exist.

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `bubblelegend('Style','telescopic')` creates a telescopic legend.

Note

The properties listed here are only a subset. For a complete list, see BubbleLegend Properties.

Location with respect to the axes, specified as one of the location values listed in this table.

ValueDescription
`'north'`Inside top edge of the axes.
`'south'`Inside bottom edge of the axes.
`'east'`Inside right edge of the axes.
`'west'`Inside left edge of the axes.
`'northeast'`Inside top-right corner of the axes.
`'northwest'`Inside top-left corner of the axes.
`'southeast'`Inside bottom-right corner of the axes.
`'southwest'`Inside bottom-left corner of the axes.
`'northoutside'`Above the axes.
`'southoutside'`Below the axes.
`'eastoutside'`To the right of the axes.
`'westoutside'`To the left of the axes.
`'northeastoutside'`Outside top-right corner of the axes.
`'northwestoutside'`Outside top-left corner of the axes.
`'southeastoutside'`Outside bottom-right corner of the axes.
`'southwestoutside'`Outside bottom-left corner of the axes
`'layout'`A tile in a tiled chart layout. To move the legend to a different tile, set the `Layout` property.
`'none'`A location determined by the `Position` property. Use the `Position` property to specify a custom location.

Legend style, specified as one of the values from the table. The images in the table show how a legend with three bubbles looks with the different styles.

Style ValueAppearance
`'vertical'`

`'horizontal'`

`'telescopic'`

Number of bubbles to display in the legend, specified as `2` or `3`. This table shows how a vertical bubble legend looks with 2 and 3 bubbles.

NumBubbles ValueAppearance
`2`

`3`

Limit labels, specified as a two- or three-element cell array of character vectors or string array. The first label appears next to the smallest bubble in the legend, and the last label appears next to the largest bubble. If you specify three labels, the second label does not display when the legend is horizontal or if the legend only has two bubbles. This table shows some common scenarios.

ExampleResult

Create a vertical legend with three bubbles, and specify three limit labels.

```blgd = bubblelegend; blgd.LimitLabels = {'Shortage','Abundance','Surplus'};```

Create a telescopic legend with three bubbles, and specify three limit labels.

```blgd = bubblelegend('Style','telescopic'); blgd.LimitLabels = {'Shortage','Abundance','Surplus'};```

Create a vertical legend with two bubbles, and specify three limit labels.

```blgd = bubblelegend('NumBubbles',2); blgd.LimitLabels = {'Shortage','Abundance','Surplus'};```

Create a horizontal legend with three bubbles, and specify three limit labels.

```blgd = bubblelegend('Style','horizontal'); blgd.LimitLabels = {'Shortage','Abundance','Surplus'};```

Order of the bubble sizes, specified as one of the values from the table. The table shows the effect of the different values on a vertical legend that has three bubbles.

BubbleSizeOrder ValueAppearance
`'descending'`

`'ascending'`
