Create axesm-based map for United States of America

Description

usamap state and

usamap(state) create an empty axesm-based map (previously referred to as map axes) with a Lambert Conformal Conic projection and map limits covering a U.S. state or group of states specified by state. The axesm-based map is created in the current axes and the axis limits are set tight around the map frame.

example

usamap 'conus' and

usamap('conus') create an empty axesm-based map for the conterminous 48 states (that is, all states excluding Alaska and Hawaii).

usamap with no arguments presents a menu from which you can select a single state, the District of Columbia, the conterminous 48 states, or all states.

example

usamap(latlim,lonlim) creates an empty Lambert Conformal axesm-based map for a region of the U.S. defined by its latitude and longitude limits in degrees.

usamap(Z,R) derives the map limits from the extent of a regular data grid, Z, georeferenced by R.

h = usamap(___) returns the handle of the axesm-based map.

h = usamap('all') constructs three empty axesm-based maps, inset within a single figure, for the conterminous states, Alaska, and Hawaii, with a spherical Earth model and other projection parameters suggested by the U.S. Geological Survey. The maps in the three axes are shown at approximately the same scale. The handles for the three axesm-based maps are returned in h.

usamap('allequal') is the same as usamap('all'), but usage of 'allequal' will be removed in a future release.

example

Examples

collapse all

Make a map of the state of Alabama only.

figure
usamap("Alabama")

states = readgeotable("usastatehi.shp");
row = states.Name == "Alabama";
alabama = states(row,:);

geoshow(alabama,"FaceColor",[0.3 1.0, 0.675])

Label the state by adding text.

textm(alabama.LabelLat,alabama.LabelLon,alabama.Name, ...
  "HorizontalAlignment","center")

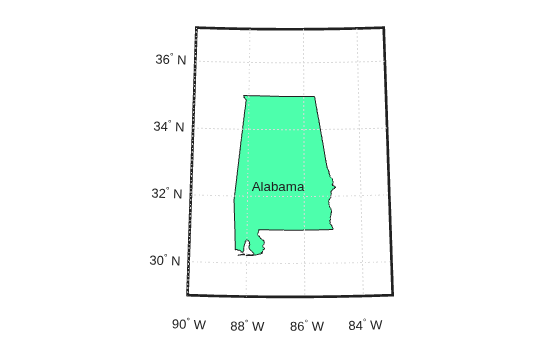

Figure contains an axes object. The hidden axes object contains 13 objects of type patch, line, text.

Create a map of a contiguous landmass that contains California and Montana.

figure
ax = usamap({'CA','MT'});
set(ax,'Visible','off')

states = readgeotable('usastatehi.shp');
geoshow(states, 'FaceColor', [0.5 0.5 1])

Add labels to the states that are within the map limits.

latlim = getm(ax,'MapLatLimit');
lonlim = getm(ax,'MapLonLimit');

lat = states.LabelLat;
lon = states.LabelLon;
tf = ingeoquad(lat,lon,latlim,lonlim);
textm(lat(tf),lon(tf),states.Name(tf), ...
   'HorizontalAlignment','center')

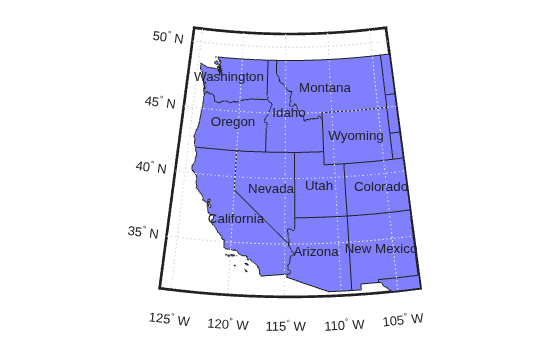

Figure contains an axes object. The hidden axes object contains 39 objects of type patch, line, text.

Map the conterminous United States. Color each state using a random, muted color.

figure
usamap("conus");

states = readgeotable("usastatelo.shp");
rows = states.Name ~= "Alaska" & states.Name ~= "Hawaii";
states = states(rows,:);

h = height(states);
faceColors = makesymbolspec("Polygon",...
    {'INDEX',[1 h],'FaceColor',polcmap(h)});

geoshow(states,"DisplayType","polygon","SymbolSpec",faceColors)

Set optional display settings.

framem off
gridm off
mlabel off
plabel off

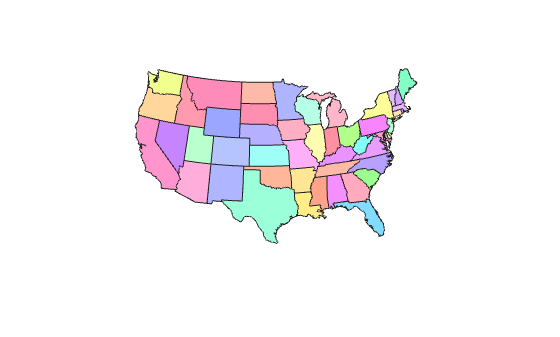

Figure contains an axes object. The hidden axes object contains 49 objects of type patch.

Read a shapefile, containing polygon shapes for each of the US states and the District of Columbia, into a geospatial table. Find the table rows for the conterminous USA, Alaska, and Hawaii.

states = readgeotable("usastatelo.shp");
rowConus = states.Name ~= "Hawaii" & states.Name ~= "Alaska";
rowAlaska = states.Name == "Alaska";
rowHawaii = states.Name == "Hawaii";

Display each of the three regions on separate axes.

figure
ax = usamap("all");
set(ax,"Visible","off")
stateColor = [0.5 1 0.5];

geoshow(ax(1),states(rowConus,:), "FaceColor",stateColor)
geoshow(ax(2),states(rowAlaska,:),"FaceColor",stateColor)
geoshow(ax(3),states(rowHawaii,:),"FaceColor",stateColor)

Hide the frame.

for k = 1:3
    setm(ax(k),"Frame","off","Grid","off",...
      "ParallelLabel","off","MeridianLabel","off")
end

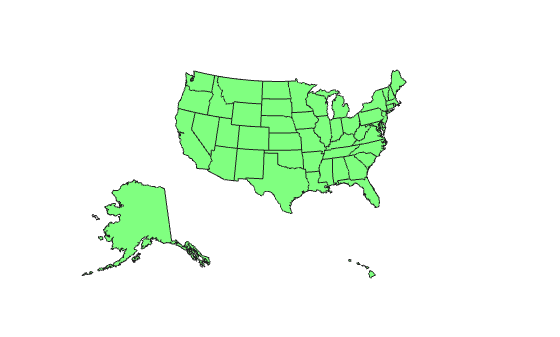

Figure contains 3 axes objects. Hidden axes object 1 contains 49 objects of type patch. Hidden axes object 2 contains an object of type patch. Hidden axes object 3 contains an object of type patch.

Input Arguments

collapse all

State to display, specified as a string scalar, string array, character vector or cell array of character vectors. Permissible values include names of states, standard two-letter U.S. Postal Service abbreviations for states, and 'District of Columbia'.

Example: usamap({'Maine','Florida'}) sets the map limits to cover the region spanning from Maine to Florida.

Latitude limits, specified as a two-element vector of the form [southern_limit northern_limit].

Longitude limits, specified as a two-element vector of the form [western_limit eastern_limit].

Data grid, specified as an M-by-N array. Z is a regular data grid associated with a geographic reference R.

Geographic reference, specified as one of the following.

TypeDescription
Geographic raster reference object

GeographicCellsReference or GeographicPostingsReference geographic raster reference object. The RasterSize property must be consistent with the size of the data grid, size(Z).

Vector

1-by-3 numeric vector with elements:

[cells/degree northern_latitude_limit western_longitude_limit]
Matrix

3-by-2 numeric matrix that transforms raster row and column indices to or from geographic coordinates according to:

[lon lat] = [row col 1] * R

R defines a (non-rotational, non-skewed) relationship in which each column of the data grid falls along a meridian and each row falls along a parallel.

For more information about referencing vectors and matrices, see Georeferenced Raster Data.

Output Arguments

collapse all

Handle of the axesm-based map, returned as a handle object.

If you use the syntax h = usamap('all'), then h is array of handle objects. h(1) is for the conterminous states, h(2) is for Alaska, and h(3) is for Hawaii.

Tips

  • All axes created with usamap are initialized with a spherical Earth model having a radius of 6,371,000 meters.

  • In some cases, usamap uses tightmap to adjust the axis limits tight around the map. If you change the projection, or just want more white space around the map frame, use tightmap again or axis auto.

  • axes(h(n)), where n = 1, 2, or 3, makes the desired axes current.

  • set(h,'Visible','on') makes the axes visible.

  • axesscale(h(1)) resizes the axes containing Alaska and Hawaii to the same scale as the conterminous states.
