# Point Properties

Geographic point appearance and behavior

`Point` properties control the appearance and behavior of a `Point` object. By changing property values, you can modify certain aspects of the point. Use dot notation to query and set properties.

```shape = geopointshape(1:10,1:10); p = geoplot(shape); c = p.Marker; p.Marker = "*";```

## Markers

expand all

Marker symbol, specified as one of the options listed in this table:

MarkerDescriptionResulting Marker
`"o"`Circle

`"+"`Plus sign

`"*"`Asterisk

`"."`Point

`"x"`Cross

`"_"`Horizontal line

`"|"`Vertical line

`"square"`Square

`"diamond"`Diamond

`"^"`Upward-pointing triangle

`"v"`Downward-pointing triangle

`">"`Right-pointing triangle

`"<"`Left-pointing triangle

`"pentagram"`Pentagram

`"hexagram"`Hexagram

`"none"`No markersNot applicable

Marker size, specified as a positive value in points, where 1 point = 1/72 of an inch.

Marker outline color, specified as `'flat'`, an RGB triplet, a hexadecimal color code, a color name, or a short name. The `'flat'` option uses colors from the `ColorData` property. When the `geoplot` function sets the `ColorData` property, MATLAB® updates this property to `'flat'`.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range `[0,1]`, for example, ```[0.4 0.6 0.7]```.

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (`#`) followed by three or six hexadecimal digits, which can range from `0` to `F`. The values are not case sensitive. Therefore, the color codes `"#FF8800"`, `"#ff8800"`, `"#F80"`, and `"#f80"` are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
`"red"``"r"``[1 0 0]``"#FF0000"`

`"green"``"g"``[0 1 0]``"#00FF00"`

`"blue"``"b"``[0 0 1]``"#0000FF"`

`"cyan"` `"c"``[0 1 1]``"#00FFFF"`

`"magenta"``"m"``[1 0 1]``"#FF00FF"`

`"yellow"``"y"``[1 1 0]``"#FFFF00"`

`"black"``"k"``[0 0 0]``"#000000"`

`"white"``"w"``[1 1 1]``"#FFFFFF"`

`"none"`Not applicableNot applicableNot applicableNo color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

`[0 0.4470 0.7410]``"#0072BD"`

`[0.8500 0.3250 0.0980]``"#D95319"`

`[0.9290 0.6940 0.1250]``"#EDB120"`

`[0.4940 0.1840 0.5560]``"#7E2F8E"`

`[0.4660 0.6740 0.1880]``"#77AC30"`

`[0.3010 0.7450 0.9330]``"#4DBEEE"`

`[0.6350 0.0780 0.1840]``"#A2142F"`

Example: `[0.5 0.5 0.5]`

Example: `'blue'`

Example: `'#D2F9A7'`

Marker fill color, specified as `'flat'`, an RGB triplet, a hexadecimal color code, a color name, or a short name. The `'flat'` option use colors from the `ColorData` property.

For a custom color, specify an RGB triplet or a hexadecimal color code.

• An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range `[0,1]`, for example, ```[0.4 0.6 0.7]```.

• A hexadecimal color code is a character vector or a string scalar that starts with a hash symbol (`#`) followed by three or six hexadecimal digits, which can range from `0` to `F`. The values are not case sensitive. Therefore, the color codes `"#FF8800"`, `"#ff8800"`, `"#F80"`, and `"#f80"` are equivalent.

Alternatively, you can specify some common colors by name. This table lists the named color options, the equivalent RGB triplets, and hexadecimal color codes.

Color NameShort NameRGB TripletHexadecimal Color CodeAppearance
`"red"``"r"``[1 0 0]``"#FF0000"`

`"green"``"g"``[0 1 0]``"#00FF00"`

`"blue"``"b"``[0 0 1]``"#0000FF"`

`"cyan"` `"c"``[0 1 1]``"#00FFFF"`

`"magenta"``"m"``[1 0 1]``"#FF00FF"`

`"yellow"``"y"``[1 1 0]``"#FFFF00"`

`"black"``"k"``[0 0 0]``"#000000"`

`"white"``"w"``[1 1 1]``"#FFFFFF"`

`"none"`Not applicableNot applicableNot applicableNo color

Here are the RGB triplets and hexadecimal color codes for the default colors MATLAB uses in many types of plots.

`[0 0.4470 0.7410]``"#0072BD"`

`[0.8500 0.3250 0.0980]``"#D95319"`

`[0.9290 0.6940 0.1250]``"#EDB120"`

`[0.4940 0.1840 0.5560]``"#7E2F8E"`

`[0.4660 0.6740 0.1880]``"#77AC30"`

`[0.3010 0.7450 0.9330]``"#4DBEEE"`

`[0.6350 0.0780 0.1840]``"#A2142F"`

Example: `[0.3 0.2 0.1]`

Example: `'green'`

Example: `'#D2F9A7'`

Marker outline transparency, specified as a scalar in the range `[0,1]`. A value of `1` is opaque and `0` is completely transparent. Values between `0` and `1` are semitransparent.

Marker fill transparency, specified as a scalar in the range `[0,1]`. A value of `1` is opaque and `0` is completely transparent. Values between `0` and `1` are semitransparent.

## Color Data

expand all

Marker colors, specified as a numeric vector that linearly maps to the colors in the current colormap. The plot uses a different color for each element of `ShapeData`. Specify `ColorData` as a vector the same length as `ShapeData`.

The `ColorData` property controls the fill colors of the markers when the `MarkerFaceColor` property has a value of `'flat'`. The `ColorData` property also controls the outline colors of the markers when the `MarkerEdgeColor` property has a value of `'flat'`.

Control how the `ColorData` property is set, specified as one of these values:

• `'auto'` — MATLAB controls the value of the `ColorData` property.

• `'manual'` — You manually control the value of the `ColorData` property. When you set the `ColorData` property, MATLAB sets this property to `'manual'`.

To specify colors using the `ColorVariable` property, this property must have a value of `'auto'`.

Series index, specified as a non-negative integer. This property is useful for reassigning the marker colors of several `Point` objects so that they match each other. By default, the `SeriesIndex` property of a `Point` object is a number that corresponds to the order of creation of the object, starting at `1`.

MATLAB uses the number to calculate indices for assigning colors when you call plotting functions. The indices refer to the rows of the arrays stored in the `ColorOrder` property of the axes.

MATLAB automatically updates the marker color of the `Point` object when you change its `SeriesIndex`, or when you change the `ColorOrder` property on the axes. However, the following conditions must be true for the changes to have any effect:

• The `ColorDataMode` property on the `Point` object has a value of `'auto'`.

• Either the `MarkerEdgeColor` or `MarkerFaceColor` property on the `Point` object has a value of `'flat'`.

• The `SeriesIndex` property on the `Point` object is greater than `0`.

• The `NextSeriesIndex` property on the axes object is greater than `0`.

## Shape Data

expand all

Point shapes, specified as a `geopointshape` or `mappointshape` object or as a vector of `geopointshape` or `mappointshape` objects. For `mappointshape` objects, the value of the `ProjectedCRS` property must not be empty.

When you pass shape objects or a geospatial table to the `geoplot` function, the `geoplot` function sets the value of `ShapeData`.

Control how the `ShapeData` property is set, specified as one of these values:

• `'auto'` — MATLAB automatically updates the `ShapeData` property based on the `SourceTable` and `ShapeVariable` properties. When you pass a geospatial table to the `geoplot` function, MATLAB sets this property to `'auto'`.

• `'manual'` — You manually control the value of the `ShapeData` property. When you set the `ShapeData` property or pass shape objects to the `geoplot` function, MATLAB sets this property to `'manual'`.

## Table Data

expand all

Source table containing the data to plot, specified as a geospatial table. A geospatial table is a `table` or `timetable` object that contains a `Shape` variable and attribute variables. For more information about geospatial tables, see Create Geospatial Tables.

Table variable containing the shape objects, specified as a table variable index. The table variable must contain `geopointshape` or `mappointshape` objects. For `mappointshape` objects, the value of the `ProjectedCRS` property must not be empty.

When you pass a geospatial table to the `geoplot` function, the value of this property is `'Shape'`. When you set this property, MATLAB updates the `ShapeData` property.

This table lists the different indexing schemes you can use to specify the table variable.

Indexing SchemeExamples

Variable name:

• A string scalar or character vector.

• A `pattern` object. The pattern object must refer to only one variable.

• `"A"` or `'A'` — A variable called `A`

• `"Var"+digitsPattern(1)` — The variable with the name `"Var"` followed by a single digit

Variable index:

• An index number that refers to the location of a variable in the table.

• A logical vector. Typically, this vector is the same length as the number of variables, but you can omit trailing `0` or `false` values.

• `3` — The third variable from the table

• `[false false true]` — The third variable

Variable type:

A `vartype` subscript that selects a table variable of a specified type. The subscript must refer to only one variable.

• `vartype("double")` — The variable containing values of type `double`

Table variable containing the color data, specified as a variable index into the source table.

#### Specifying the Table Index

Use any of these indexing schemes to specify the desired variable.

Indexing SchemeExamples

Variable name:

• A string scalar or character vector.

• A `pattern` object. The pattern object must refer to only one variable.

• `"A"` or `'A'` — A variable called `A`

• `"Var"+digitsPattern(1)` — The variable with the name `"Var"` followed by a single digit

Variable index:

• An index number that refers to the location of a variable in the table.

• A logical vector. Typically, this vector is the same length as the number of variables, but you can omit trailing `0` or `false` values.

• `3` — The third variable from the table

• `[false false true]` — The third variable

Variable type:

A `vartype` subscript that selects a table variable of a specified type. The subscript must refer to only one variable.

• `vartype("double")` — The variable containing values of data type `double`

#### Specifying Color Data

The `ColorVariable` property controls the fill colors of the markers when the `MarkerFaceColor` property has a value of `'flat'`. The `ColorVariable` property also controls the outline colors of the markers when the `MarkerEdgeColor` property has a value of `'flat'`.

Specify the color data values as a numeric vector that linearly maps to the colors in the current colormap. The plot uses a different color for each element of `ShapeData`.

When you set the `ColorVariable` property, MATLAB updates the `ColorData` property.

## Legend

expand all

Legend label, specified as a character vector or string scalar. The legend does not display until you call the `legend` command. If you do not specify the text, then `legend` sets the label using the form `'dataN'`.

Control for including or excluding the object from a legend, returned as an `Annotation` object. Set the underlying `IconDisplayStyle` property to one of these values:

• `'on'` — Include the object in the legend (default).

• `'off'` — Do not include the object in the legend.

For example, to exclude a graphics object, `go`, from the legend set the `IconDisplayStyle` property to `'off'`.

```go.Annotation.LegendInformation.IconDisplayStyle = 'off'; ```

Alternatively, you can control the items in a legend using the `legend` function. Specify the first input argument as a vector of the graphics objects to include. If you do not specify an existing graphics object in the first input argument, then it does not appear in the legend. However, graphics objects added to the axes after the legend is created do appear in the legend. Consider creating the legend after creating all the plots to avoid extra items.

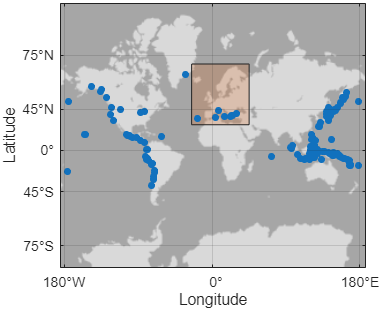

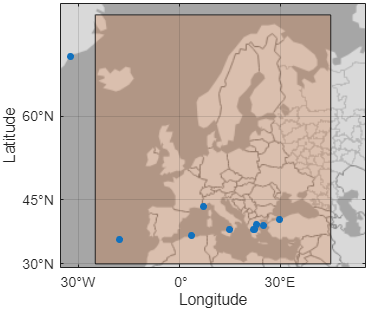

## Interactivity

expand all

State of visibility, specified as `'on'` or `'off'`, or as numeric or logical `1` (`true`) or `0` (`false`). A value of `'on'` is equivalent to `true`, and `'off'` is equivalent to `false`. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

• `'on'` — Display the object.

• `'off'` — Hide the object without deleting it. You still can access the properties of an invisible object.

Context menu, specified as a `ContextMenu` object. Use this property to display a context menu when you right-click the object. Create the context menu using the `uicontextmenu` function.

Note

If the `PickableParts` property is set to `'none'` or if the `HitTest` property is set to `'off'`, then the context menu does not appear.

Selection state, specified as `'on'` or `'off'`, or as numeric or logical `1` (`true`) or `0` (`false`). A value of `'on'` is equivalent to true, and `'off'` is equivalent to `false`. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

• `'on'` — Selected. If you click the object when in plot edit mode, then MATLAB sets its `Selected` property to `'on'`. If the `SelectionHighlight` property also is set to `'on'`, then MATLAB displays selection handles around the object.

• `'off'` — Not selected.

Display of selection handles when selected, specified as `'on'` or `'off'`, or as numeric or logical `1` (`true`) or `0` (`false`). A value of `'on'` is equivalent to true, and `'off'` is equivalent to `false`. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

• `'on'` — Display selection handles when the `Selected` property is set to `'on'`.

• `'off'` — Never display selection handles, even when the `Selected` property is set to `'on'`.

## Callbacks

expand all

Mouse-click callback, specified as one of these values:

• Function handle

• Cell array containing a function handle and additional arguments

• Character vector that is a valid MATLAB command or function, which is evaluated in the base workspace (not recommended)

Use this property to execute code when you click the object. If you specify this property using a function handle, then MATLAB passes two arguments to the callback function when executing the callback:

• Clicked object — Access properties of the clicked object from within the callback function.

• Event data — Empty argument. Replace it with the tilde character (`~`) in the function definition to indicate that this argument is not used.

For more information on how to use function handles to define callback functions, see Create Callbacks for Graphics Objects.

Note

If the `PickableParts` property is set to `'none'` or if the `HitTest` property is set to `'off'`, then this callback does not execute.

Object creation function, specified as one of these values:

• Function handle.

• Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.

• Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.

For more information about specifying a callback as a function handle, cell array, or character vector, see Create Callbacks for Graphics Objects.

This property specifies a callback function to execute when MATLAB creates the object. MATLAB initializes all property values before executing the `CreateFcn` callback. If you do not specify the `CreateFcn` property, then MATLAB executes a default creation function.

Setting the `CreateFcn` property on an existing component has no effect.

If you specify this property as a function handle or cell array, you can access the object that is being created using the first argument of the callback function. Otherwise, use the `gcbo` function to access the object.

Object deletion function, specified as one of these values:

• Function handle.

• Cell array in which the first element is a function handle. Subsequent elements in the cell array are the arguments to pass to the callback function.

• Character vector containing a valid MATLAB expression (not recommended). MATLAB evaluates this expression in the base workspace.

For more information about specifying a callback as a function handle, cell array, or character vector, see Create Callbacks for Graphics Objects.

This property specifies a callback function to execute when MATLAB deletes the object. MATLAB executes the `DeleteFcn` callback before destroying the properties of the object. If you do not specify the `DeleteFcn` property, then MATLAB executes a default deletion function.

If you specify this property as a function handle or cell array, you can access the object that is being deleted using the first argument of the callback function. Otherwise, use the `gcbo` function to access the object.

## Callback Execution Control

expand all

Callback interruption, specified as `'on'` or `'off'`, or as numeric or logical `1` (`true`) or `0` (`false`). A value of `'on'` is equivalent to `true`, and `'off'` is equivalent to `false`. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

This property determines if a running callback can be interrupted. There are two callback states to consider:

• The running callback is the currently executing callback.

• The interrupting callback is a callback that tries to interrupt the running callback.

MATLAB determines callback interruption behavior whenever it executes a command that processes the callback queue. These commands include `drawnow`, `figure`, `uifigure`, `getframe`, `waitfor`, and `pause`.

If the running callback does not contain one of these commands, then no interruption occurs. MATLAB first finishes executing the running callback, and later executes the interrupting callback.

If the running callback does contain one of these commands, then the `Interruptible` property of the object that owns the running callback determines if the interruption occurs:

• If the value of `Interruptible` is `'off'`, then no interruption occurs. Instead, the `BusyAction` property of the object that owns the interrupting callback determines if the interrupting callback is discarded or added to the callback queue.

• If the value of `Interruptible` is `'on'`, then the interruption occurs. The next time MATLAB processes the callback queue, it stops the execution of the running callback and executes the interrupting callback. After the interrupting callback completes, MATLAB then resumes executing the running callback.

Note

Callback interruption and execution behave differently in these situations:

• If the interrupting callback is a `DeleteFcn`, `CloseRequestFcn`, or `SizeChangedFcn` callback, then the interruption occurs regardless of the `Interruptible` property value.

• If the running callback is currently executing the `waitfor` function, then the interruption occurs regardless of the `Interruptible` property value.

• If the interrupting callback is owned by a `Timer` object, then the callback executes according to schedule regardless of the `Interruptible` property value.

Note

When an interruption occurs, MATLAB does not save the state of properties or the display. For example, the object returned by the `gca` or `gcf` command might change when another callback executes.

Callback queuing, specified as `'queue'` or `'cancel'`. The `BusyAction` property determines how MATLAB handles the execution of interrupting callbacks. There are two callback states to consider:

• The running callback is the currently executing callback.

• The interrupting callback is a callback that tries to interrupt the running callback.

The `BusyAction` property determines callback queuing behavior only when both of these conditions are met:

Under these conditions, the `BusyAction` property of the object that owns the interrupting callback determines how MATLAB handles the interrupting callback. These are possible values of the `BusyAction` property:

• `'queue'` — Puts the interrupting callback in a queue to be processed after the running callback finishes execution.

• `'cancel'` — Does not execute the interrupting callback.

Ability to capture mouse clicks, specified as one of these values:

• `'visible'` — Capture mouse clicks when visible. The `Visible` property must be set to `'on'` and you must click a part of the `Point` object that has a defined color. You cannot click a part that has an associated color property set to `'none'`. If the plot contains markers, then the entire marker is clickable if either the edge or the fill has a defined color. The `HitTest` property determines if the `Point` object responds to the click or if an ancestor does.

• `'none'` — Cannot capture mouse clicks. Clicking the `Point` object passes the click to the object below it in the current view of the figure window. The `HitTest` property of the `Point` object has no effect.

Response to captured mouse clicks, specified as `'on'` or `'off'`, or as numeric or logical `1` (`true`) or `0` (`false`). A value of `'on'` is equivalent to true, and `'off'` is equivalent to `false`. Thus, you can use the value of this property as a logical value. The value is stored as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

• `'on'` — Trigger the `ButtonDownFcn` callback of the `Point` object. If you have defined the `ContextMenu` property, then invoke the context menu.

• `'off'` — Trigger the callbacks for the nearest ancestor of the `Point` object that has one of these:

• `HitTest` property set to `'on'`

• `PickableParts` property set to a value that enables the ancestor to capture mouse clicks

Note

The `PickableParts` property determines if the `Point` object can capture mouse clicks. If it cannot, then the `HitTest` property has no effect.

Deletion status, returned as an on/off logical value of type `matlab.lang.OnOffSwitchState`.

MATLAB sets the `BeingDeleted` property to `'on'` when the `DeleteFcn` callback begins execution. The `BeingDeleted` property remains set to `'on'` until the component object no longer exists.

Check the value of the `BeingDeleted` property to verify that the object is not about to be deleted before querying or modifying it.

## Parent/Child

expand all

Parent, specified as a `GeographicAxes` object.

The object has no children. You cannot set this property.

Visibility of the object handle in the `Children` property of the parent, specified as one of these values:

• `'on'` — Object handle is always visible.

• `'off'` — Object handle is invisible at all times. This option is useful for preventing unintended changes by another function. Set the `HandleVisibility` to `'off'` to temporarily hide the handle during the execution of that function.

• `'callback'` — Object handle is visible from within callbacks or functions invoked by callbacks, but not from within functions invoked from the command line. This option blocks access to the object at the command line, but permits callback functions to access it.

If the object is not listed in the `Children` property of the parent, then functions that obtain object handles by searching the object hierarchy or querying handle properties cannot return it. Examples of such functions include the `get`, `findobj`, `gca`, `gcf`, `gco`, `newplot`, `cla`, `clf`, and `close` functions.

Hidden object handles are still valid. Set the root `ShowHiddenHandles` property to `'on'` to list all object handles regardless of their `HandleVisibility` property setting.

## Identifiers

expand all

Type of graphics object, returned as `'point'`. Use this property to find all objects of a given type within a plotting hierarchy, for example, searching for the type using `findobj`.

Object identifier, specified as a character vector or string scalar. You can specify a unique `Tag` value to serve as an identifier for an object. When you need access to the object elsewhere in your code, you can use the `findobj` function to search for the object based on the `Tag` value.

User data, specified as any MATLAB array. For example, you can specify a scalar, vector, matrix, cell array, character array, table, or structure. Use this property to store arbitrary data on an object.

If you are working in App Designer, create public or private properties in the app to share data instead of using the `UserData` property. For more information, see Share Data Within App Designer Apps.

## Version History

Introduced in R2022a
