# smileMetric

Compute spectral smile metrics of hyperspectral data

## Description

`[`

computes the column mean derivatives, and their standard deviations, for the oxygen and
carbon-dioxide absorption features of a hyperspectral data set. You can use these values to
detect the spectral smile effect in the hyperspectral data set. For more information, see
Smile Indicators.`oxystd`

,`carbonstd`

,`oxyderiv`

,`carbonderiv`

] = smileMetric(`hcube`

)

**Note**

This function requires the Image Processing Toolbox™ Hyperspectral Imaging Library. You can install the Image Processing Toolbox Hyperspectral Imaging Library from Add-On Explorer. For more information about installing add-ons, see Get and Manage Add-Ons.

## Examples

### Compute Derivative Values for Oxygen and Carbon-Dioxide Absorption Features

Load the hyperspectral data into the workspace.

`hcube = hypercube('EO1H0440342002212110PY_cropped.dat');`

Compute the column mean derivative values, and their standard deviations, for the oxygen and carbon-dioxide absorption features of the hyperspectral dataset `hcube`

.

[oxystd,carbonstd,oxyderiv,carbonderiv] = smileMetric(hcube);

Perform spectral smile reduction using the maximum noise fraction (MNF) transform-based method.

correctedData = reduceSmile(hcube,'Method','MNF');

Compute the column mean derivative values, and their standard deviations, for the oxygen and carbon-dioxide absorption features of the smile-corrected hyperspectral dataset `correctedData`

.

[noxystd,ncarbonstd,noxyderiv,ncarbonderiv] = smileMetric(correctedData);

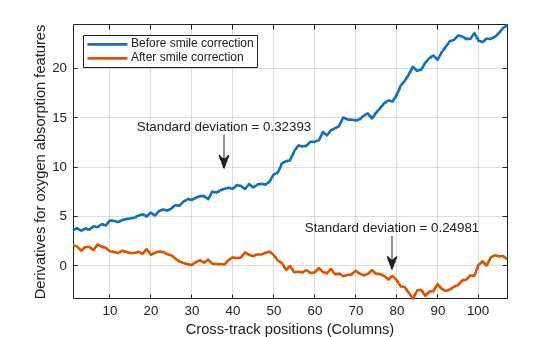

Plot the column mean derivative values of the oxygen absorption feature for both the uncorrected hypercube `hcube`

and the smile-corrected hypercube `correctedData`

, and display their standard deviations.

figure plot(oxyderiv,'LineWidth',2) hold on plot(noxyderiv,'LineWidth',2) hold off axis tight grid on xlabel('Cross-track positions (Columns)') ylabel('Derivatives for oxygen absorption features') legend({'Before smile correction','After smile correction'},'Location','northwest'); annotation(gcf,'textarrow',[0.4 0.4],[0.6 0.5],... 'String',['Standard deviation = ' num2str(oxystd)]); annotation(gcf,'textarrow',[0.7 0.7],[0.3 0.2],... 'String',['Standard deviation = ' num2str(noxystd)]);

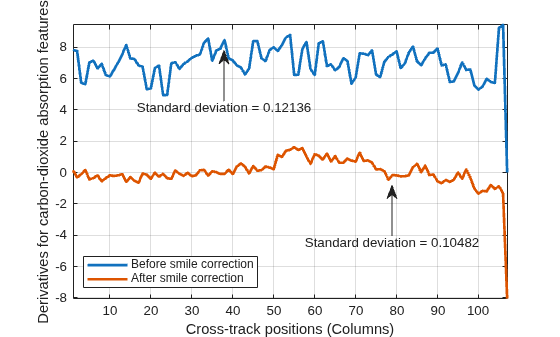

Plot the column mean derivative values of the carbon-dioxide absorption feature for both the uncorrected hypercube `hcube`

and the smile-corrected hypercube `correctedData`

, and display their standard deviations.

figure plot(carbonderiv,'LineWidth',2) hold on plot(ncarbonderiv,'LineWidth',2) hold off axis tight grid on xlabel('Cross-track positions (Columns)') ylabel('Derivatives for carbon-dioxide absorption features') legend({'Before smile correction','After smile correction'},'Location','southwest'); annotation(gcf,'textarrow',[0.4 0.4],[0.7 0.85],... 'String',['Standard deviation = ' num2str(carbonstd)]); annotation(gcf,'textarrow',[0.7 0.7],[0.3 0.45],... 'String',['Standard deviation = ' num2str(ncarbonstd)]);

## Input Arguments

`hcube`

— Input hyperspectral data

`hypercube`

object

Input hyperspectral data, specified as a `hypercube`

object. The `DataCube`

property of the `hypercube`

object stores the hyperspectral data cube. To calculate the column mean of oxygen and
carbon-dioxide absorption feature derivatives, the `hypercube`

object must have the full width half maximum (`FWHM`

) values in the
`Metadata`

property.

**Note**

To compute the column mean of oxygen absorption feature derivatives, the input hyperspectral data must contain data in the visible and near-infrared (VNIR) wavelength range 760 - 785 nm.

To compute the column mean of carbon-dioxide absorption feature derivatives, the input hyperspectral data must contain data in the short-wave-infrared (SWIR) wavelength range 2010 - 2025 nm.

## Output Arguments

`oxyderiv`

— Column mean derivatives for oxygen absorption features

*N*-element row vector

Column mean derivatives for the oxygen absorption features, returned as a
*N*-element row vector. *N* is the number of columns
in the input hyperspectral data cube. If the input hyperspectral data cube is of type
`double`

, then the output vector is of data type
`double`

. Otherwise, the data type of the output vector is
`single`

.

`carbonderiv`

— Column mean derivative for carbon-dioxide absorption features

*N*-element row vector

Column mean derivatives for the carbon-dioxide absorption features, returned as a
*N*-element row vector. *N* is the number of columns
in the input hyperspectral data cube. If the input hyperspectral data cube is of type
`double`

, then the output vector is of data type
`double`

. Otherwise, the data type of the output vector is
`single`

.

`oxystd`

— Standard deviation of column mean derivatives for oxygen absorption features

scalar

Standard deviation of the column mean derivatives for oxygen absorption features,
returned as a scalar. You can use this scalar to detect the presence of the spectral
smile effect in hyperspectral data. If the value of `oxystd`

is low,
then the chances of the data having a smile effect is less in the VNIR range.

`carbonstd`

— Standard deviation of column mean derivatives for carbon-dioxide absorption features

scalar

Standard deviation of the column mean derivatives for carbon-dioxide absorption
features, returned as a scalar. You can use this scalar to detect the presence of the
spectral smile effect in hyperspectral data. If the value of
`carbonstd`

is low, then the chances of the data having a smile
effect is less in the SWIR range.

## More About

### Smile Indicators

The smile effect occurs when hyperspectral data contains significant cross-track curvature with nonlinear disturbances along the spectral dimension. These nonlinear disturbances occur only in data captured using push-broom hyperspectral sensors, such as the Hyperion EO-1 and SEBASS. Based on [1], you can detect cross-track variation in the oxygen and carbon-dioxide absorption features, due to a possible smile effect, by calculating the first derivatives of the oxygen and carbon-dioxide band images. The first derivative of the adjacent bands $${B}^{\text{'}}$$ is calculated using the absorption band image $${B}_{1}$$ and the image of the subsequent band $${B}_{2}$$, using the equation:

$${B}^{\text{'}}=\frac{{B}_{2}-{B}_{1}}{\overline{FWHM}},$$

where, $$\overline{FWHM}$$ is the average FWHM of the two bands $${B}_{1}$$ and $${B}_{2}$$. This derivative calculation is applicable to both the oxygen and carbon-dioxide absorption band images. The column mean values of the oxygen and carbon-dioxide derivatives can indicate cross-track nonlinearity caused by the spectral smile effect.

The nonlinear, cross-track column mean of oxygen absorption feature derivative values indicates a spectral smile effect in the VNIR spectrum.

The nonlinear, cross-track column mean of carbon-dioxide absorption feature derivative values indicates a spectral smile effect in the SWIR spectrum.

## References

[1] Dadon, Alon, Eyal Ben-Dor, and
Arnon Karnieli. “Use of Derivative Calculations and Minimum Noise Fraction Transform for
Detecting and Correcting the Spectral Curvature Effect (Smile) in Hyperion Images.”
*IEEE Transactions on Geoscience and Remote Sensing* 48, no. 6 (June
2010): 2603–12. https://doi.org/10.1109/TGRS.2010.2040391.

## Version History

**Introduced in R2021a**
