imoverlay
Burn binary mask into 2-D image
Description
Examples
Burn Binary Image into Grayscale Image
Read a grayscale image into the workspace.
A = imread('cameraman.tif');
Read a binary image into the workspace.
BW = imread('text.png');
Burn the binary image into the grayscale image, specifying the color to be used for the binary mask.
B = imoverlay(A,BW,'yellow');

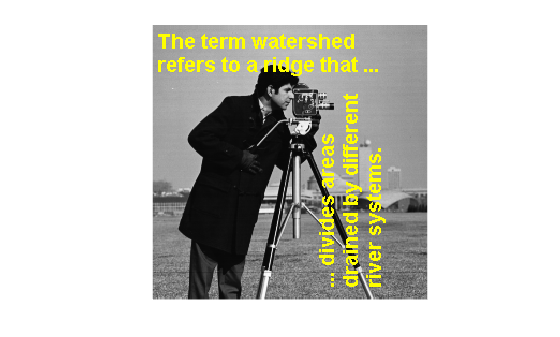

Display the result.
imshow(B)
Burn Binary Image into RGB Image
Read an RGB image into the workspace.
RGB = imread('peppers.png');
Read a binary image into the workspace.
BW = imread('text.png');
Crop the RGB image to make it the same size as the binary mask.
RGB_cropped = imcrop(RGB,[64,128,255,255]);
Burn the binary image into the cropped RGB image, choosing the color to be used.
B = imoverlay(RGB_cropped,BW,'red');

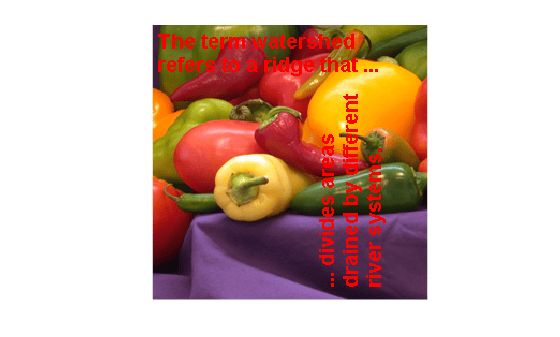

Display the result.
figure imshow(B)
Input Arguments
A
— Input image
2-D grayscale image | 2-D RGB image
Input image, specified as a 2-D grayscale image or 2-D RGB image.
Data Types: single
| double
| int16
| uint8
| uint16
| logical
BW
— Mask image
2-D binary matrix | 2-D numeric matrix
Mask image, specified 2-D binary matrix or 2-D numeric matrix of the same size as the first
two dimensions of image A
.
For numeric input,
any nonzero pixels are considered to be 1
(true
).
Data Types: single
| double
| int8
| int16
| int32
| uint8
| uint16
| uint32
| logical
color
— Color used for overlay
"yellow"
(default) | RGB triplet | color name | short color name
Color used for the overlay, specified as an RGB triplet, a color name, or a short color name.
You can specify any color using an RGB triplet. An RGB triplet is a 3-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities must be in the range [0, 1].
You can specify some common colors by name as a string scalar or character vector. This table lists the named color options and the equivalent RGB triplets.
Color Name | Short Name | RGB Triplet | Appearance |
---|---|---|---|
"red" | "r" | [1 0 0] |
|
"green" | "g" | [0 1 0] |
|
"blue" | "b" | [0 0 1] |
|
"cyan"
| "c" | [0 1 1] |
|
"magenta" | "m" | [1 0 1] |
|
"yellow" | "y" | [1 1 0] |
|
"black" | "k" | [0 0 0] |
|
"white" | "w" | [1 1 1] |
|
Here are the RGB triplets for the default colors that MATLAB® uses in many types of plots.
RGB Triplet | Appearance |
---|---|
[0 0.4470 0.7410] |
|
[0.8500 0.3250 0.0980] |
|
[0.9290 0.6940 0.1250] |
|
[0.4940 0.1840 0.5560] |
|
[0.4660 0.6740 0.1880] |
|
[0.3010 0.7450 0.9330] |
|
[0.6350 0.0780 0.1840] |
|
Example: 'r'
Example: 'green'
Example: [0 0.4470
0.7410]
Output Arguments
B
— Output image
2-D RGB image
Output image, returned as a 2-D RGB image.
Data Types: uint8
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Usage notes and limitations:
imoverlay
supports the generation of C code (requires MATLAB Coder™). For more information, see Code Generation for Image Processing.When generating code, if you specify
color
as a character vector, then the value must be a compile-time constant.
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
When generating code, if you specify
color
as a character vector, then the value must be a compile-time constant.
Version History
Introduced in R2016a
