imcolordiff

Color difference based on CIE94 or CIE2000 standard

Syntax

dE = imcolordiff(I1,I2)

dE = imcolordiff(I1,I2,Name,Value)

Description

dE = imcolordiff(I1,I2) calculates the color difference between two RGB images or color maps using the CIE94 standard.

dE = imcolordiff(I1,I2,Name,Value) specifies additional aspects of the computation, such as the input color space and the CIE standard, using one or more name-value pair arguments.

Examples

Calculate Color Difference of Images Using CIE94 Standard

Read a color image into the workspace.

I1 = imread('peppers.png');
imshow(I1)

Alter the local color contrast in the image.

I2 = localcontrast(I1);
imshow(I2)

Calculate the color difference of the images using the default color standard, CIE94.

dE = imcolordiff(I1,I2);

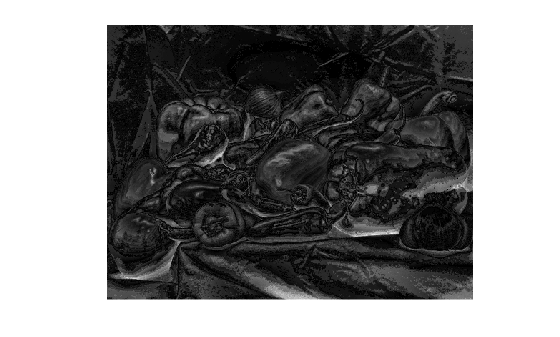

Display the color difference as an image. Scale the display range to use the full range of pixel values in dE.

imshow(dE,[])

Calculate Color Difference of L*a*b* Images using CIE94 Standard

Read and display an image of tissue stained with hemotoxylin and eosin (H&E).

he = imread('hestain.png');
imshow(he)

Convert the image to the L*a*b* color space.

lab = rgb2lab(he);

Make a copy of the image, then increase the signal of the a* channel. Red tones in the image become more saturated while the image overall brightness and the blue tones are unchanged.

lab2 = lab;
scaleFactor = 1.1;
lab2(:,:,2) = scaleFactor*lab(:,:,2);

Calculate the color difference of the original and enhanced image in the L*a*b* color space.

dE = imcolordiff(lab,lab2,'isInputLab',true);

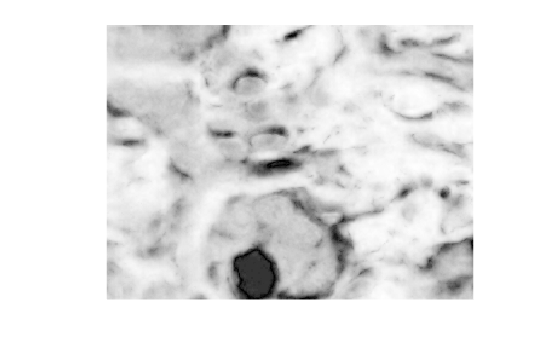

Display the color difference as an image. Scale the display range to match the range of pixel values in dE. Bright regions indicate the greatest color difference and correspond with the pink regions of tissue.

imshow(dE,[])

Calculate Color Difference of Two Colors using CIEDE2000 Standard

Specify two RGB color values.

pureRed = uint8([255,0,0]);
darkRed = uint8([255,10,50]);

Calculate the color difference of the colors using the CIEDE2000 standard.

dE = imcolordiff(pureRed,darkRed,"Standard","CIEDE2000")

dE = single
    7.4449

Calculate Color Difference using Textile Weighting Factors

Read and display an RGB image of fabric.

fabric = imread('fabric.png');
imshow(fabric)

Simulate a second image of fabric by altering the local color contrast in the image.

fabric2 = localcontrast(fabric);
imshow(fabric2)

Calculate the color difference of the two images using the CIEDE2000 standard. Specify a luminance coefficient and K1 and K2 weighting factors appropriate for textiles.

dE = imcolordiff(fabric,fabric2,'Standard','CIEDE2000', ...
    'kL',2,'K1',0.048,'K2',0.014);

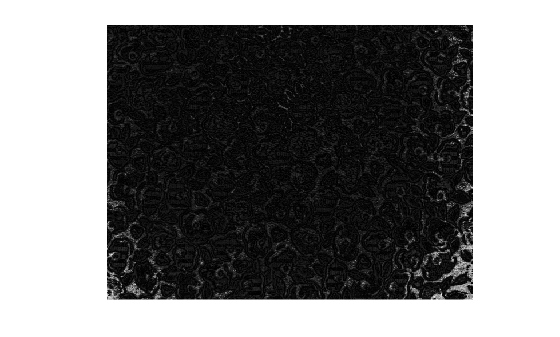

Display the color difference. Scale the display range to the full range of pixel values in dE.

imshow(dE,[])

Input Arguments

I1 — First set of color data

m-by-n-by-3 numeric array | c-by-3 numeric matrix

First set of color data, specified as an m-by-n-by-3 numeric array representing an image or a c-by-3 numeric matrix representing a set of c colors. I1 and I2 must be the same size with values in the same color space.

By default, the imcolordiff function interprets the color data as RGB color values. To calculate the color difference in the L*a*b* color space, specify the 'isInputLab' argument as true. L*a*b* color values can be of data type single or double only.

Data Types: single | double | uint8 | uint16

I2 — Second set of color data

m-by-n-by-3 numeric array | c-by-3 numeric matrix

Second set of color data, specified as an m-by-n-by-3 numeric array representing an image or a c-by-3 numeric matrix representing a set of c colors. I1 and I2 must be the same size with values in the same color space.

By default, imcolordiff interprets the color data as RGB color values. To calculate the difference of colors in the L*a*b* color space, specify the 'isInputLab' argument as true. L*a*b* color values can be of data type single or double only.

Data Types: single | double | uint8 | uint16

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'Standard',"CIEDE2000" calculates the color difference between two RGB images using the CIEDE2000 standard.

Standard — CIE standard

"CIE94" (default) | "CIEDE2000"

CIE standard used to compute the color difference value, specified as the comma-separated pair consisting of 'Standard' and one of these values:

Value	Description
"CIE94"	The CIE94 standard. This standard improves the perceptual non-uniformities of the CIE76 standard implemented in the deltaE function.
"CIEDE2000"	The CIEDE2000 standard. This standard further improves the perceptual uniformity through five additional corrections: a hue rotation term, compensation for neutral colors, and compensation for lightness, chroma, and hue.

Data Types: char | string

isInputLab — Color values are in L*a*b* color space

false or 0 (default) | true or 1

Color values are in the L*a*b* color space, specified as the comma-separated pair consisting of 'isInputLab' and a numeric or logical 0 (false) or 1 (true).

kL — Luminance coefficient

1 (default) | numeric scalar

Luminance coefficient, specified as the comma-separated pair consisting of 'kL' and a numeric scalar. The luminance coefficient is typically 1 for applications in graphic arts and 2 for applications in textiles.

K1 — K1 weighting factor

0.045 (default) | numeric scalar

K1 weighting factor, specified as the comma-separated pair consisting of 'K1' and a numeric scalar. The K1 weighting factor is typically 0.045 for applications in graphic arts and 0.048 for applications in textiles.

K2 — K2 weighting factor

0.015 (default) | numeric scalar

K2 weighting factor, specified as the comma-separated pair consisting of 'K2' and a numeric scalar. The K2 weighting factor is typically 0.015 for applications in graphic arts and 0.014 for applications in textiles.

Output Arguments

dE — Color difference

m-by-n matrix | c-element column vector

Color difference (delta E), returned as one of the following.

• An m-by-n matrix when the input color data I1 and I2 represent images

• A c-element column vector when I1 and I2 represent a set of c colors

If I1 or I2 is of data type double, then dE is of data type double. Otherwise, dE is of data type single.

Data Types: single | double

Tips

• To calculate color differences following the CIE76 standard, use the deltaE function. This function is faster than the imcolordiff function, but less precise.

References

[1] Sharma, Gaurav, Wencheng Wu, and Edul N. Dalal, "The CIEDE2000 Color-Difference Formula: Implementation Notes, Supplementary Test Data, and Mathematical Observations". Color Research and Application 30, no. 1 (February 2005): 21–30. https://doi.org/10.1002/col.20070.
