write

(Removed) Write bigimage object content to new file

The write function of the bigimage object has been removed (since R2026a). Use the write function associated with the blockedImage object instead. For more information, see Version History.

Syntax

write(bigimg,filename)

write(bigimg,filename,'TIFFCompression',compression)

write(bigimg,dirname)

write(___,Name,Value)

Description

write(bigimg,filename) writes a formatted version of big image bigimg to a TIFF file named filename. This syntax does not preserve the spatial referencing information of the big image.

write(bigimg,filename,'TIFFCompression',compression) also specifies the compression scheme for writing a formatted version of big image bigimg to a TIFF file named filename. This syntax does not preserve the spatial referencing information of the big image.

write(bigimg,dirname) writes a formatted version of big image bigimg to the directory named dirname. This syntax preserves the spatial referencing information of the big image.

write(___,Name,Value) specifies additional options when writing categorical data using name-value pair arguments.

Examples

Write Big Image Data to Disk

Create a bigimage from the sample image "tumor_091R.tif".

bim = bigimage("tumor_091R.tif");

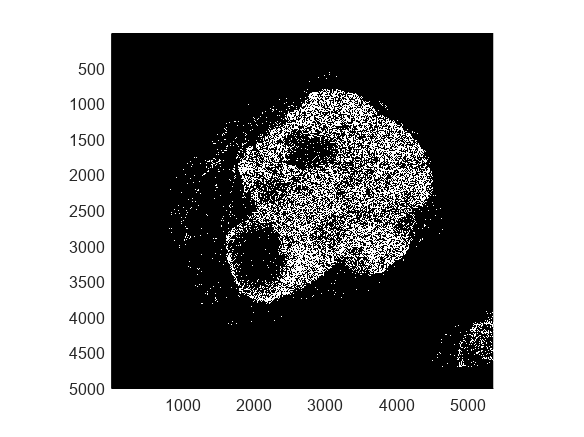

Create a mask image from the coarsest resolution level, 3. The mask is 1 (true) for each pixel whose grayscale value is less than 100.

mask = apply(bim,3,@(im)im2gray(im)<100);

Write the mask image to a directory called "maskDir". The directory must not already exist. Before writing the mask image, check if the directory already exists, and if it does, delete it.

imageDir = "maskDir";
if exist(imageDir,"dir")
    rmdir maskDir s;
end
write(mask,imageDir);

Input Arguments

bigimg — Big image

bigimage object

Big image, specified as a bigimage object.

filename — File name

string | character vector

File name of written big image data, specified as a string or character vector. Supported file extensions are '.tif' and '.tiff'.

Data Types: string

dirname — Directory name

string | character vector

Directory name of written big image data, specified as a string or character vector.

Data Types: string

compression — TIFF compression scheme

"LZW" (default) | "PackBits" | "Deflate" | "JPEG" | "None"

TIFF compression scheme, specified as one of the following.

Compression Scheme	Description
"LZW"	Lempel-Ziv-Welch lossless compression
"PackBits"	PackBits lossless compression
"Deflate"	Adobe DEFLATE lossless compression
"JPEG"	JPEG-based lossy compression
"None"	No compression

Data Types: string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: write(bigimg,filename,Classes=["sky" "vegetation" "building"],PixelLabelIDs=[1 2 3]) writes a categorical bigimage with three classes

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: write(bigimg,filename,'Classes',["sky" "vegetation" "building"],'PixelLabelIDs',[1 2 3]) writes a categorical bigimage with three classes

Classes — Class names

string array | cell array of character vectors

Class names of categorical data, specified as a string array or a cell array of character vectors. The default value is the value of the Classes property of the big image bigimg.

If a class has multiple pixel values in PixelLabelIDs, then write writes all instances of that class using the first pixel value.

Data Types: char | string

PixelLabelIDs — Pixel label IDs

d-element numeric vector | d-by-3 numeric array of data type uint8

Pixel label IDs that map pixel label values to categorical class names, specified as one of the following.

• d-element numeric vector, where d is the number of classes

• d-by-3 numeric array of data type uint8. Each row contains a 3-element vector representing the RGB pixel value to associate with each class name. Use this format when the pixel label data is stored as an RGB image.

The data type of the written pixels matches the data type of PixelLabelIDs. The default value is the value of the PixelLabelIDs property of the big image bigimg.

If a class has multiple pixel values in PixelLabelIDs, then write writes all instances of that class using the first pixel value.

UndefinedID — Pixel label value for <undefined> categorical class

0 (default) | numeric scalar | 1-by-3 numeric vector

Pixel label value for the <undefined> categorical class and pixel values that do not exist in PixelLabelIDs, specified as a numeric scalar or a 1-by-3 numeric vector. Do not specify this value as any of the values in PixelLabelIDs. The default value is the value of the UndefinedID property of the big image bigimg.

Version History

Introduced in R2019b

R2026a: Removed

The write function has been removed. Use the write function of the blockedImage object instead.

Code Updates

To update your code, first create a blockedImage object to read your image data. Then, follow these steps:

• If you want to apply TIFF compression, create a TIFF adapter and set the Compression property of the adapter using dot notation. If you want to write categorical data, then instead use a MATBlocks adapter.

• Replace the first input argument of the write function with the blockedImage object. Specify the optional adapter using the Adapter name-value argument.

Removed	Recommended
This example uses the write function with a bigimage object to write the image data to a file. filename = "tumor_091R.tif"; bigIm = bigimage(filename); newFilename = "tumor_091R_copy.tif"; write(bigIm,newFilename);	Here is equivalent code using a blockedImage object. filename = "tumor_091R.tif"; blockedIm = blockedImage(filename); newFilename = "tumor_091R_copy.tif"; write(blockedIm,newFilename);
This example writes the file with TIFF compression. write(bigIm,newFilename,"TIFFCompression","None");	Here is equivalent code using a blockedImage object. adaptor = images.blocked.TIFF; adaptor.Compression = Tiff.Compression.None; write(blockedIm,newFilename,Adapter=adapter);

R2024b: Warns

The write function issues a warning that it will be removed in a future release.

R2023b: To be removed

The bigimage object and this function will be removed in a future release.

R2021a: Not recommended

The write function of the bigimage object is not recommended. Use the write function of the blockedImage object instead. The blockedImage object offers several advantages including extension to N-D processing, a simpler interface, and custom support for reading and writing nonstandard image formats.
