Adaptive image threshold using local first-order statistics


T = adaptthresh(I)
T = adaptthresh(I,sensitivity)
T = adaptthresh(___,Name,Value)



T = adaptthresh(I) computes a locally adaptive threshold for 2-D grayscale image or 3-D grayscale volume I. The adaptthresh function chooses the threshold based on the local mean intensity (first-order statistics) in the neighborhood of each pixel. The threshold T can be used with the imbinarize function to convert the grayscale image to a binary image.


T = adaptthresh(I,sensitivity) computes a locally adaptive threshold with sensitivity factor specified by sensitivity. sensitivity is a scalar in the range [0,1] that indicates sensitivity towards thresholding more pixels as foreground.


T = adaptthresh(___,Name,Value) computes a locally adaptive threshold using name-value pairs to control aspects of the thresholding.


collapse all

Read image into the workspace.

I = imread('rice.png');

Use adaptthresh to determine threshold to use in binarization operation.

T = adaptthresh(I, 0.4);

Convert image to binary image, specifying the threshold value.

BW = imbinarize(I,T);

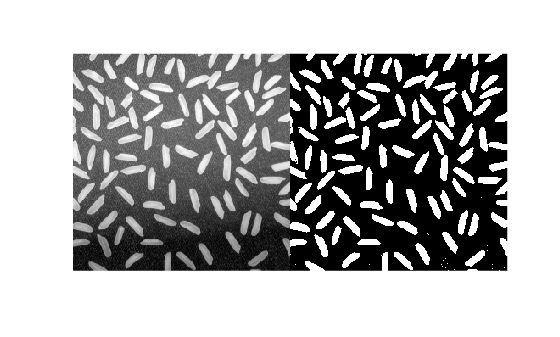

Display the original image with the binary version, side-by-side.

imshowpair(I, BW, 'montage')

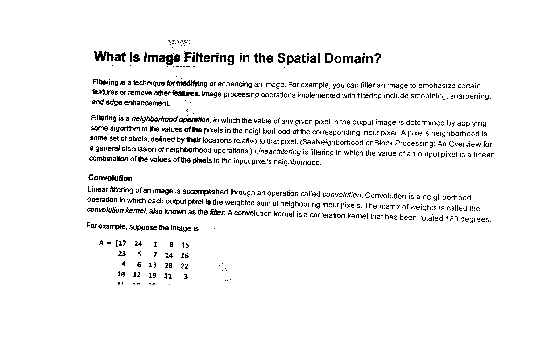

Read image into the workspace.

I = imread('printedtext.png');

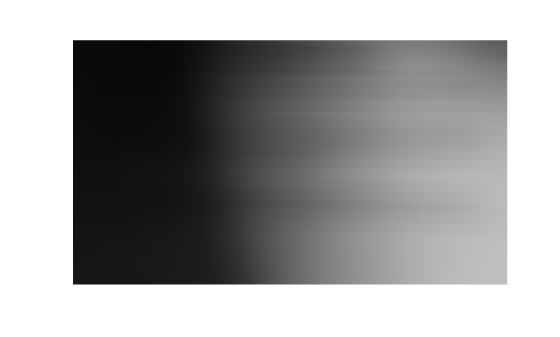

Using adaptthresh compute adaptive threshold and display the local threshold image. This represents an estimate of average background illumination.

T = adaptthresh(I,0.4,'ForegroundPolarity','dark');

Binarize image using locally adaptive threshold

BW = imbinarize(I,T);

Load 3-D volume into the workspace.

load mristack;
V = mristack;

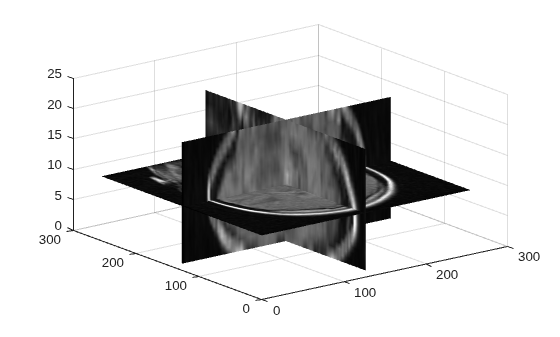

Display the data.

colormap gray
shading interp

Calculate the threshold.

J = adaptthresh(V,'neigh',[3 3 3],'Fore','bright');

Display the threshold.

colormap gray
shading interp

Input Arguments

collapse all

Grayscale image or volume, specified as a 2-D numeric matrix or 3-D numeric array.

If the image contains Infs or NaNs, the behavior of adaptthresh is undefined. Propagation of Infs or NaNs might not be localized to the neighborhood around Inf or NaN pixels.

Data Types: single | double | int8 | int16 | int32 | uint8 | uint16 | uint32

Determine which pixels get thresholded as foreground pixels, specified as a number in the range [0, 1]. High sensitivity values lead to thresholding more pixels as foreground, at the risk of including some background pixels.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Name-Value Pair Arguments

Specify optional comma-separated pairs of Name,Value arguments. Name is the argument name and Value is the corresponding value. Name must appear inside quotes. You can specify several name and value pair arguments in any order as Name1,Value1,...,NameN,ValueN.

Example: T = adaptthresh(I,0.4,'ForegroundPolarity','dark');

Size of neighborhood used to compute local statistic around each pixel, specified as a positive odd integer or a 2-element vector of positive odd integers.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Determine which pixels are considered foreground pixels, specified using one of the following:




The foreground is brighter than the background.


The foreground is darker than the background

Data Types: char | string

Statistic used to compute local threshold at each pixel, specified as one of the following:




The local mean intensity in the neighborhood. This technique is also called Bradley’s method [1].


The local median in the neighborhood. Computation of this statistic can be slow. Consider using a smaller neighborhood size to obtain faster results.


The Gaussian weighted mean in the neighborhood.

Data Types: char | string

Output Arguments

collapse all

Normalized intensity values, returned as a numeric matrix or numeric array of the same size as the input image or volume, I. Values are normalized to the range [0, 1].

Data Types: double


[1] Bradley, D., G. Roth, "Adapting Thresholding Using the Integral Image," Journal of Graphics Tools. Vol. 12, No. 2, 2007, pp.13–21.

Extended Capabilities

Introduced in R2016a
