Image Type Conversion

Convert between the image types, such as RGB (truecolor), binary, grayscale, and indexed.

Image Processing Toolbox™ supports binary, indexed, grayscale, and truecolor image types. In each image type, pixels are stored in different formats. For example, truecolor images represent a pixel as a triplet of red, green, and blue values, whereas grayscale image represent a pixel as a single intensity value. Pixels value can be stored in floating-point, signed and unsigned integers, or logical data types. Toolbox functions enable you to convert between the image types and data types.

Functions

expand all

Convert Between Image Types

`gray2ind`	Convert grayscale or binary image to indexed image
`ind2gray`	Convert indexed image to grayscale image
`mat2gray`	Convert matrix to grayscale image
`rgb2gray`	Convert RGB image or colormap to grayscale
`rgb2lightness`	Convert RGB color values to lightness values
`rgb2ind`	Convert RGB image to indexed image
`ind2rgb`	Convert indexed image to RGB image
`label2rgb`	Convert label matrix into RGB image
`demosaic`	Convert Bayer pattern encoded image to truecolor image
`imsplit`	Split multichannel image into its individual channels

Convert to Binary Image Using Thresholding

`imbinarize`	Binarize 2-D grayscale image or 3-D volume by thresholding
`adaptthresh`	Adaptive image threshold using local first-order statistics
`otsuthresh`	Global histogram threshold using Otsu's method
`graythresh`	Global image threshold using Otsu's method

Convert to Indexed Image Using Quantization

`imquantize`	Quantize image using specified quantization levels and output values
`multithresh`	Multilevel image thresholds using Otsu’s method
`grayslice`	Convert grayscale image to indexed image using multilevel thresholding

Convert Between Data Types

`im2double`	Convert image to double precision
`im2int16`	Convert image to 16-bit signed integers
`im2java2d`	Convert image to Java buffered image
`im2single`	Convert image to single precision
`im2uint16`	Convert image to 16-bit unsigned integers
`im2uint8`	Convert image to 8-bit unsigned integers

Topics

Image Types in the Toolbox

Image types determine how MATLAB^® interprets data matrix elements as pixel intensity values. The toolbox supports binary, indexed, grayscale, and truecolor image types.

Binary Images

In a binary image, each pixel assumes one of only two discrete values: 1 or 0.

Indexed Images

An indexed image consists of an array and a colormap matrix.

Grayscale Images

A grayscale image (also called gray-scale, gray scale, or gray-level) is a data matrix whose values represent intensities within some range.

Truecolor Images

A truecolor image is an image in which each pixel is specified by three values — one each for the red, blue, and green components of the pixel's color.

Convert Between Image Types

Certain image processing operations support only a subset of the image types. You can convert images between the image types to suit the operation.

Convert Image Data Between Classes

You can convert image data between classes using functions that automatically rescale and offset the original data.

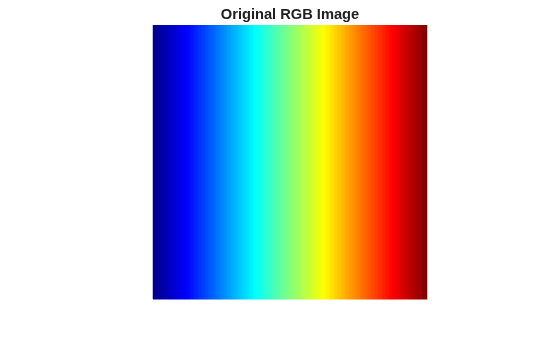

Display Separated Color Channels of an RGB Image

This example creates a simple truecolor image and then separates the color channels (planes).
