Fault Analysis
R2026bFault analysis examples in multiple
Simscape™
Fluids™ domains
In this section, you can find examples of fault analysis in multiple Simscape Fluids domains.
Featured Examples

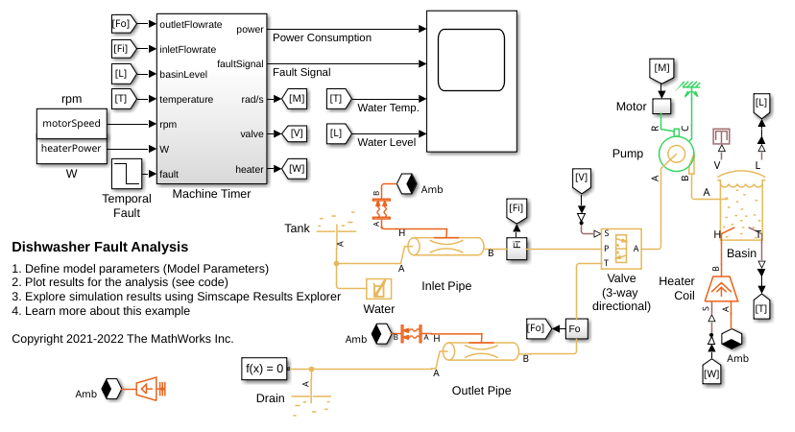

Dishwasher Fault Analysis
Model a dishwasher and introduce a fault in its operation. Observe the system response when a fault occurs in the water heater during operation. The electric motor switches off, and the dishwasher aborts operation.

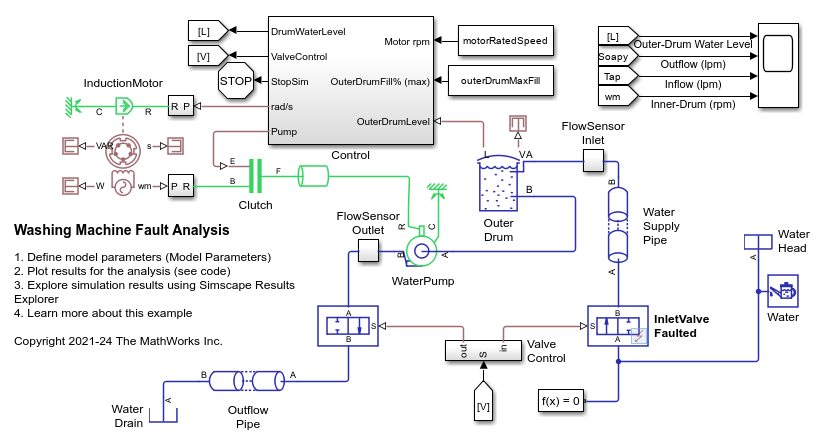

Washing Machine Fault Analysis
Model a washing machine and introduce a fault in its operation. The machine water supply faults at a specific time and this example models the system response under this scenario. The electric motor switches off and the machine operation is aborted by discharging the partially filled outer drum.
