hdlHardwareSetup

Open the Hardware Setup tool

Since R2025a

collapse all in page

    Syntax

    hdlHardwareSetup

    Description

    hdlHardwareSetup opens the Hardware Setup tool. Use this app to set up hardware boards supported by HDL Coder. The Hardware Setup tool guides you through the process of registering, configuring, and connecting to your hardware board.

    example

    Examples

    collapse all

    Use the Hardware Setup tool to configure your target AMD®, Intel® and Microchip hardware board for the hardware-software co-design workflow.

    hdlHardwareSetup

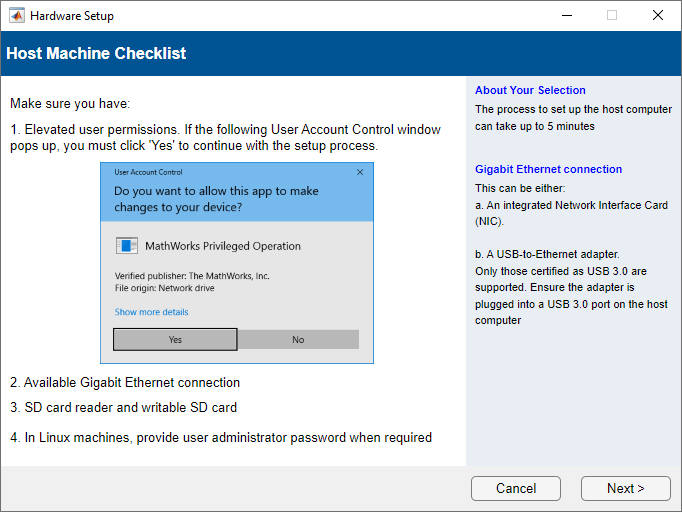

    Host Machine Checklist

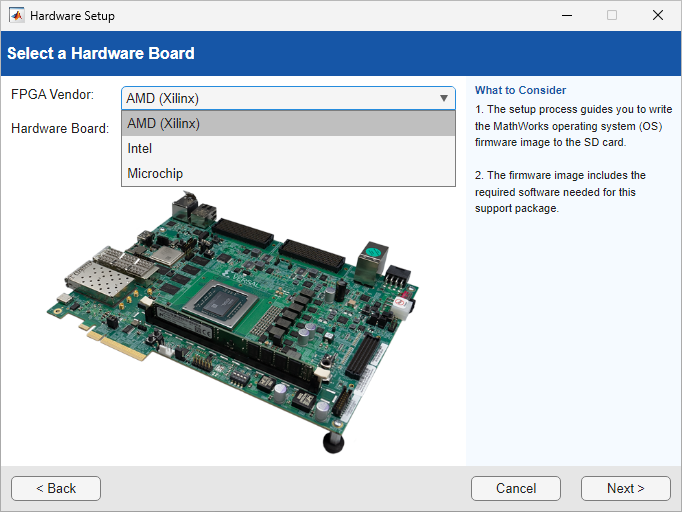

    You can use the Hardware Setup tool to select an FPGA vendor and hardware board, configure your hardware, download third-party tools, establish an Ethernet connection, and write the firmware image. In the Select a Hardware Board step of the Hardware Setup tool, you can specify your FPGA vendor as AMD, Intel or Microchip, and then select the desired hardware boards from the list.

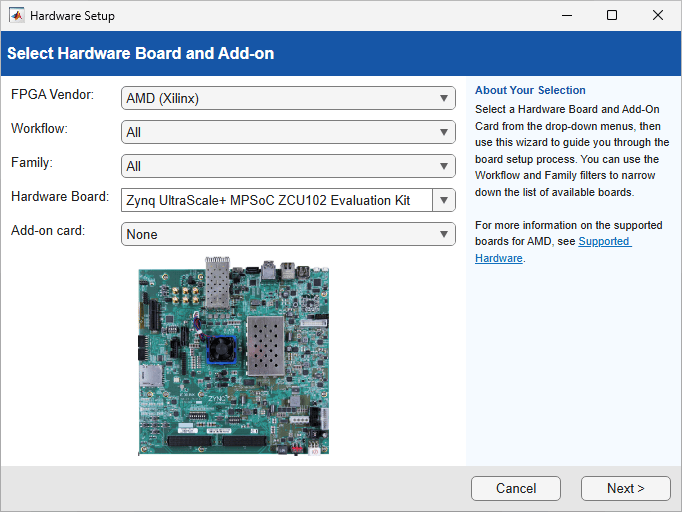

    Select a Hardware Board

    To learn more about the supported hardware boards, see HDL Coder Supported Hardware.

    Version History

    Introduced in R2025a
