This example shows how the range analysis narrows the derived range for the Outport block. This range is based on the range derived for the Add block using the design ranges specified on the two Inport blocks and the design range specified for the Add block.
Open the model. At the MATLAB command line, enter:

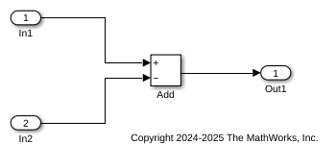

Update the diagram to display the specified design minimum and maximum values for each block.
In1 design range is
In2 design range is
Add block design range is
From the Simulink® Apps tab, select Fixed-Point Tool.
In the Fixed-Point Tool, under New workflow, select
Iterative Fixed-Point Conversion.
Under System Under Design (SUD), select
ex_derived_min_max_1 as the system you want to
Under Range Collection Mode, select Derived ranges.
Click the Collect Ranges button.
To calculate the derived range at the Add block input, the
software uses the design minimum and maximum values specified for the
[-50..35]. The derived range at the
Add block input is
When the analysis is complete, the Fixed-Point Tool displays the derived and design minimum and maximum values for the blocks in the selected system in the spreadsheet.
The derived range for the Add block output
signal is narrowed to
[-85..55]. This derived
range is the intersection of the range derived from the block
[-85..150], and the design minimum
and maximum values specified for the block output,
The derived range for the Outport block
same as the Add block output.
To display design ranges in your model, in the Debug tab, select Information Overlays > Signal Data Ranges.
