Price European or American spread options using finite difference method

## Syntax

``Price = spreadbyfd(RateSpec,StockSpec1,StockSpec2,Settle,Maturity,OptSpec,Strike,Corr)``
``Price = spreadbyfd(___,Name,Value)``
``````[Price,PriceGrid,AssetPrice1,AssetPrice2,Times] = spreadbyfd(RateSpec,StockSpec1,StockSpec2,Settle,Maturity,OptSpec,Strike,Corr)``````
``````[Price,PriceGrid,AssetPrice1,AssetPrice2,Times] = spreadbyfd(___,Name,Value)``````

## Description

````Price = spreadbyfd(RateSpec,StockSpec1,StockSpec2,Settle,Maturity,OptSpec,Strike,Corr)` returns the price of European or American call or put spread options using the Alternate Direction Implicit (ADI) finite difference method. The spread is between the asset defined in `StockSpec1` minus the asset defined in `StockSpec2`.```

example

````Price = spreadbyfd(___,Name,Value)` adds optional name-value pair arguments.```
``````[Price,PriceGrid,AssetPrice1,AssetPrice2,Times] = spreadbyfd(RateSpec,StockSpec1,StockSpec2,Settle,Maturity,OptSpec,Strike,Corr)``` returns the `Price`, `PriceGrid`, `AssetPrice1`, `AssetPrice2`, and `Times` for a European or American call or put spread options using the Alternate Direction Implicit (ADI) finite difference method. The spread is between the asset defined in `StockSpec1` minus the asset defined in `StockSpec2`.```
``````[Price,PriceGrid,AssetPrice1,AssetPrice2,Times] = spreadbyfd(___,Name,Value)``` returns the `Price`, `PriceGrid`, `AssetPrice1`, `AssetPrice2`, and `Times` and adds optional name-value pair arguments.```

## Examples

collapse all

```Settle = datetime(2012,1,1); Maturity = datetime(2012,4,1);```

Define asset 1. Price and volatility of RBOB gasoline

``` Price1gallon = 2.85; % \$/gallon Price1 = Price1gallon * 42; % \$/barrel Vol1 = 0.29;```

Define asset 2. Price and volatility of WTI crude oil

``` Price2 = 93.20; % \$/barrel Vol2 = 0.36;```

Define the correlation between the underlying asset prices of asset 1 and asset 2.

`Corr = 0.42;`

```OptSpec = 'call'; Strike = 20;```

Define the `RateSpec`.

```rates = 0.05; Compounding = -1; Basis = 1; RateSpec = intenvset('ValuationDate', Settle, 'StartDates', Settle, ... 'EndDates', Maturity, 'Rates', rates, ... 'Compounding', Compounding, 'Basis', Basis)```
```RateSpec = struct with fields: FinObj: 'RateSpec' Compounding: -1 Disc: 0.9876 Rates: 0.0500 EndTimes: 0.2500 StartTimes: 0 EndDates: 734960 StartDates: 734869 ValuationDate: 734869 Basis: 1 EndMonthRule: 1 ```

Define the `StockSpec` for the two assets.

`StockSpec1 = stockspec(Vol1, Price1)`
```StockSpec1 = struct with fields: FinObj: 'StockSpec' Sigma: 0.2900 AssetPrice: 119.7000 DividendType: [] DividendAmounts: 0 ExDividendDates: [] ```
`StockSpec2 = stockspec(Vol2, Price2)`
```StockSpec2 = struct with fields: FinObj: 'StockSpec' Sigma: 0.3600 AssetPrice: 93.2000 DividendType: [] DividendAmounts: 0 ExDividendDates: [] ```

Compute the spread option price based on the Alternate Direction Implicit (ADI) finite difference method.

```[Price, PriceGrid, AssetPrice1, AssetPrice2, Times] = ... spreadbyfd(RateSpec, StockSpec1, StockSpec2, Settle, ... Maturity, OptSpec, Strike, Corr);```

Display the price.

`Price`
```Price = 11.1998 ```

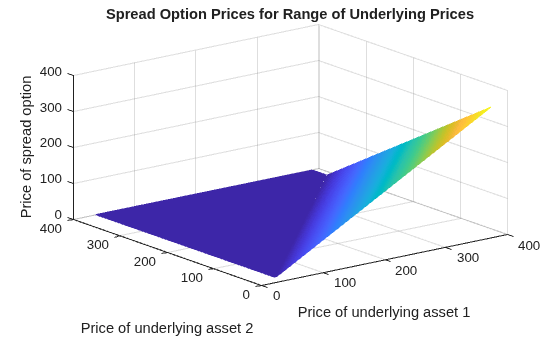

Plot the finite difference grid.

```mesh(AssetPrice1, AssetPrice2, PriceGrid(:, :, 1)'); title('Spread Option Prices for Range of Underlying Prices'); xlabel('Price of underlying asset 1'); ylabel('Price of underlying asset 2'); zlabel('Price of spread option');```

## Input Arguments

collapse all

Interest-rate term structure (annualized and continuously compounded), specified by the `RateSpec` obtained from `intenvset`. For information on the interest-rate specification, see `intenvset`.

Data Types: `struct`

Stock specification for underlying asset 1. For information on the stock specification, see `stockspec`.

`stockspec` can handle other types of underlying assets. For example, for physical commodities the price is represented by `StockSpec.Asset`, the volatility is represented by `StockSpec.Sigma`, and the convenience yield is represented by `StockSpec.DividendAmounts`.

Data Types: `struct`

Stock specification for underlying asset 2. For information on the stock specification, see `stockspec`.

`stockspec` can handle other types of underlying assets. For example, for physical commodities the price is represented by `StockSpec.Asset`, the volatility is represented by `StockSpec.Sigma`, and the convenience yield is represented by `StockSpec.DividendAmounts`.

Data Types: `struct`

Settlement dates for the spread option, specified as a `NINST`-by-`1` vector using a datetime array, string array, or date character vectors.

To support existing code, `spreadbyfd` also accepts serial date numbers as inputs, but they are not recommended.

Maturity date for spread option, specified as a `NINST`-by-`1` vector using a datetime array, string array, or date character vectors.

To support existing code, `spreadbyfd` also accepts serial date numbers as inputs, but they are not recommended.

Definition of option as `'call'` or `'put'`, specified as a `NINST`-by-`1` cell array of character vectors.

Data Types: `char` | `cell`

Option strike price values, specified as an integer using a `NINST`-by-`1` vector of strike price values.

Data Types: `double`

Correlation between underlying asset prices, specified as an integer using a `NINST`-by-`1` vector.

Data Types: `double`

### Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: ```[Price,PriceGrid,AssetPrice1,AssetPrice2,Times] = spreadbyfd(RateSpec,StockSpec1,StockSpec2,Settle,Maturity,OptSpec,Strike,Corr,'AssetPriceMin','AssetPriceMax','PriceGridSize','TimeGridSize','AmericanOpt',0)```

Minimum price for price grid boundary, specified as the comma-separated pair consisting of `'AssetPriceMin'` and a `1`-by-`2` array. The first entry in the array corresponds to the first asset defined by `StockSpec1` and the second entry corresponds to the second asset defined by `StockSpec2`.

For the finite difference method, the composition of the grid affects the quality of the output and the execution time. It is highly recommended to use the optional arguments `AssetPriceMin`, `AssetPriceMax`, `PriceGridSize`, and `TimeGridSize` to control the composition of the grid to ensure the quality of the output and a reasonable execution time.

Data Types: `single` | `double`

Maximum price for price grid boundary, specified as the comma-separated pair consisting of `'AssetPriceMax'` and a `1`-by-`2` array. The first entry in the array corresponds to the first asset defined by `StockSpec1` and the second entry corresponds to the second asset defined by `StockSpec2`.

For the finite difference method, the composition of the grid affects the quality of the output and the execution time. It is highly recommended to use the optional arguments `AssetPriceMin`, `AssetPriceMax`, `PriceGridSize`, and `TimeGridSize` to control the composition of the grid to ensure the quality of the output and a reasonable execution time.

Data Types: `single` | `double`

Size for finite difference grid, specified as the comma-separated pair consisting of `'PriceGridSize'` and a `1`-by-`2` array. The first entry corresponds to the first asset defined by `StockSpec1` and the second entry corresponds to the second asset defined by `StockSpec2`.

For the finite difference method, the composition of the grid affects the quality of the output and the execution time. It is highly recommended to use the optional arguments`AssetPriceMax`, `PriceGridSize`, and `TimeGridSize` to control the composition of the grid to ensure the quality of the output and a reasonable execution time.

Data Types: `single` | `double`

Size of the time grid for finite difference grid, specified as the comma-separated pair consisting of `'TimeGridSize'` and a nonnegative integer.

For the finite difference method, the composition of the grid affects the quality of the output and the execution time. It is highly recommended to use the optional arguments`AssetPriceMax`, `PriceGridSize`, and `TimeGridSize` to control the composition of the grid to ensure the quality of the output and a reasonable execution time.

Data Types: `single` | `double`

Option type, specified as the comma-separated pair consisting of `'AmericanOpt'` and `NINST`-by-`1` positive integer scalar flags with values:

• `0` — European

• `1` — American

Data Types: `single` | `double`

## Output Arguments

collapse all

Expected prices of the spread option, returned as a `NINST`-by-`1` vector.

Grid containing prices calculated by finite difference method, returned as a 3-D grid with a size of `PriceGridSize(1)` * `PriceGridSize(2)` * `TimeGridSize`. The price for `t` = 0 is contained in `PriceGrid(:, :, 1)`.

Prices for first asset defined by `StockSpec1`, corresponding to the first dimension of `PriceGrid`, returned as a vector.

Prices for second asset defined by `StockSpec2`, corresponding to the second dimension of `PriceGrid`, returned as a vector.

Times corresponding to third dimension of `PriceGrid`, returned as a vector.

collapse all

A spread option is an option written on the difference of two underlying assets.

For example, a European call on the difference of two assets X1 and X2 would have the following pay off at maturity:

`$\mathrm{max}\left(X1-X2-K,0\right)$`

where:

K is the strike price.

## References

[1] Carmona, R., Durrleman, V. “Pricing and Hedging Spread Options.” SIAM Review. Vol. 45, No. 4, pp. 627–685, Society for Industrial and Applied Mathematics, 2003.

[2] Villeneuve, S., Zanette, A. “Parabolic ADI Methods for Pricing American Options on Two Stocks.” Mathematics of Operations Research. Vol. 27, No. 1, pp. 121–149, INFORMS, 2002.

[3] Ikonen, S., Toivanen, J. Efficient Numerical Methods for Pricing American Options Under Stochastic Volatility. Wiley InterScience, 2007.

## Version History

Introduced in R2013b
