chaikosc

Chaikin oscillator

collapse all in page

Syntax

chosc = chaikosc(Data)

Description

chosc = chaikosc(Data) calculates the Chaikin oscillator.

example

Examples

collapse all

Open Live Script

Load the file SimulatedStock.mat, which provides a timetable (TMW) for financial data for TMW stock.

load SimulatedStock.mat
oscillator = chaikosc(TMW);
plot(oscillator.Time, oscillator.ChaikinOscillator)
title('Chaikin Oscillator for TMW')

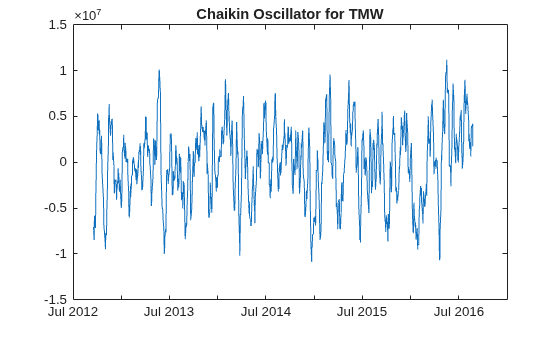

Figure contains an axes object. The axes object with title Chaikin Oscillator for TMW contains an object of type line.

Input Arguments

collapse all

Data with high, low, close, and volume information, specified as a matrix, table, or timetable. For matrix input, Data is an M-by-4 matrix of high, low, close prices and volume. Timetables and tables with M rows must contain variables named 'High', 'Low', 'Close', and 'Volume' (case insensitive).

Data Types: double | table | timetable

Output Arguments

collapse all

Chaikin oscillator, returned with the same number of rows (M) and type (matrix, table, or timetable) as the input Data.

References

[1] Achelis, S. B. Technical Analysis from A to Z. Second Edition. McGraw-Hill, 1995, pp. 91–94.

Version History

Introduced before R2006a
