This example shows how to forecast a stationary AR(12) process using `forecast`

. Evaluate the asymptotic convergence of the forecasts, and compare forecasts made with and without using presample data.

Specify the model

$${y}_{t}=3+0.7{y}_{t-1}+0.25{y}_{t-12}+{\epsilon}_{t},$$

where the innovations are Gaussian with variance 2. Generate a realization of length 300 from the process. Discard the first 250 observations as burn-in.

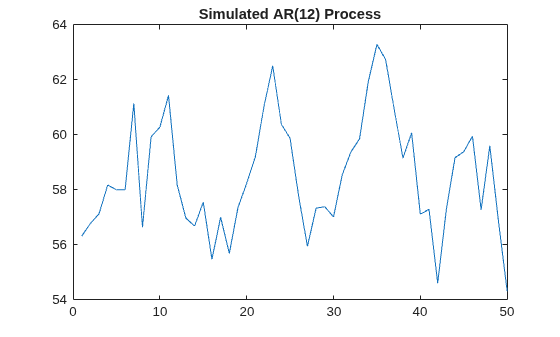

Mdl = arima('Constant',3,'AR',{0.7,0.25},'ARLags',[1,12],... 'Variance',2); rng('default') Y = simulate(Mdl,300); Y = Y(251:300); figure plot(Y) xlim([0,50]) title('Simulated AR(12) Process')

Generate forecasts (and forecast errors) for a 150-step time horizon. Use the simulated series as presample data.

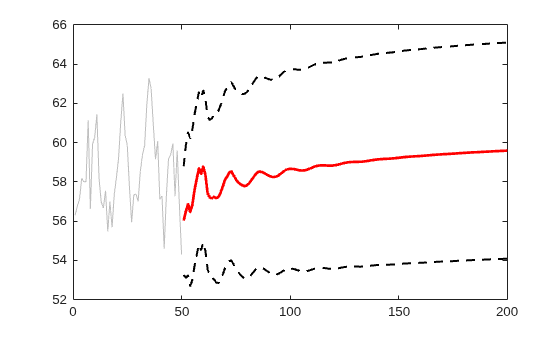

[Yf,YMSE] = forecast(Mdl,150,Y); upper = Yf + 1.96*sqrt(YMSE); lower = Yf - 1.96*sqrt(YMSE); figure plot(Y,'Color',[.75,.75,.75]) hold on plot(51:200,Yf,'r','LineWidth',2) plot(51:200,[upper,lower],'k--','LineWidth',1.5) xlim([0,200]) hold off

The MMSE forecast sinusoidally decays, and begins converging to the unconditional mean, given by

$$\mu =\frac{c}{\left(1-{\varphi}_{1}-{\varphi}_{12}\right)}=\frac{3}{(1-0.7-0.25)}=60.$$

The MSE of the process converges to the unconditional variance of the process ($${\sigma}_{\epsilon}^{2}=2$$). You can calculate the variance using the impulse response function. The impulse response function is based on the infinite-degree MA representation of the AR(2) process.

The last few values of `YMSE`

show the convergence toward the unconditional variance.

ARpol = LagOp({1,-.7,-.25},'Lags',[0,1,12]); IRF = cell2mat(toCellArray(1/ARpol)); sig2e = 2; variance = sum(IRF.^2)*sig2e % Display the variance

variance = 7.9938

`YMSE(145:end) % Display the forecast MSEs`

`ans = `*6×1*
7.8870
7.8899
7.8926
7.8954
7.8980
7.9006

Convergence is not reached within 150 steps, but the forecast MSE is approaching the theoretical unconditional variance.

Repeat the forecasting without using any presample data.

```
[Yf2,YMSE2] = forecast(Mdl,150);
upper2 = Yf2 + 1.96*sqrt(YMSE2);
lower2 = Yf2 - 1.96*sqrt(YMSE2);
YMSE2(145:end) % Display the forecast MSEs
```

`ans = `*6×1*
7.8870
7.8899
7.8926
7.8954
7.8980
7.9006

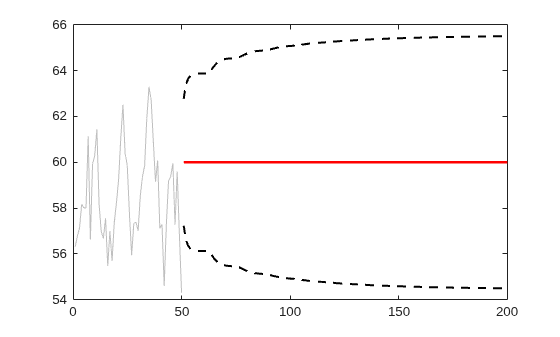

figure plot(Y,'Color',[.75,.75,.75]) hold on plot(51:200,Yf2,'r','LineWidth',2) plot(51:200,[upper2,lower2],'k--','LineWidth',1.5) xlim([0,200]) hold off

The convergence of the forecast MSE is the same without using presample data. However, all MMSE forecasts are the unconditional mean. This is because `forecast`

initializes the AR model with the unconditional mean when you do not provide presample data.

`arima`

| `forecast`

| `LagOp`

| `simulate`

| `toCellArray`
