Air-Fuel Ratio Control System with Fixed-Point Data

This example uses:

This example shows how to generate and optimize the code for a fixed-point air-fuel ratio control system designed with Simulink® and Stateflow®. For a detailed explanation of the model, see Model Fault-Tolerant Fuel Control System.

The example uses the Embedded Coder® system target file (ert.tlc).

Relevant Portions of the Model

Figures 1-4 show relevant portions of the sldemo_fuelsys model, which is a closed-loop system containing a plant subsystem and a controller subsystem. The plant allows engineers to validate the controller through simulation early in the design cycle. In this example, generate code for the relevant controller subsystem, fuel_rate_control. Figure 1 shows the top-level simulation model.

% Open |sldemo_fuelsys|, set the parameters and update the model diagram
% to view the signal data types.
close_system('sldemo_fuelsys',0)
load_system('sldemo_fuelsys');
coder.example.configure('sldemo_fuelsys','ERT','fixed');
sldemo_fuelsys_data('sldemo_fuelsys','switch_data_type','fixed');
sldemo_fuelsys_data('sldemo_fuelsys','top_level_logging','on');
set_param('sldemo_fuelsys','ShowPortDataTypes','on');
set_param('sldemo_fuelsys','SampleTimeColors','on');
set_param('sldemo_fuelsys','Dirty','off');
sldemo_fuelsys([],[],[],'compile');
sldemo_fuelsys([],[],[],'term');

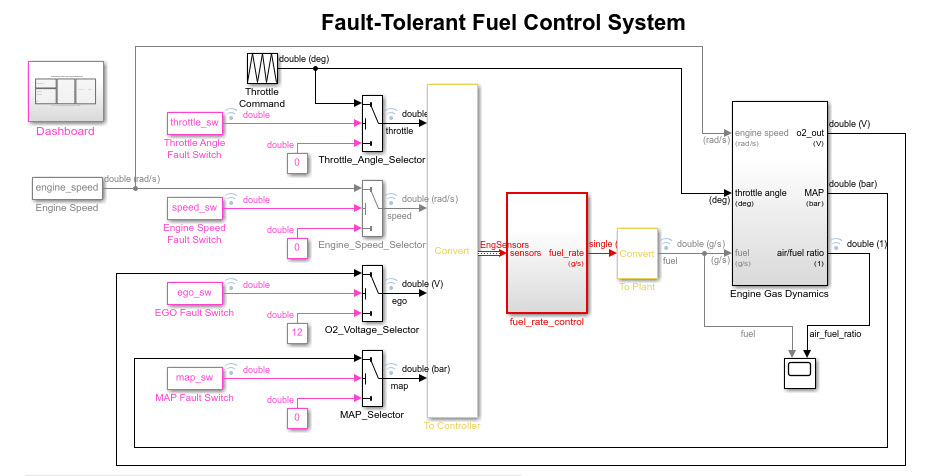

Figure 1: Top-level model of the plant and controller

The air-fuel ratio control system is composed of Simulink and Stateflow blocks. It is the portion of the model for which to generate code.

open_system('sldemo_fuelsys/fuel_rate_control');

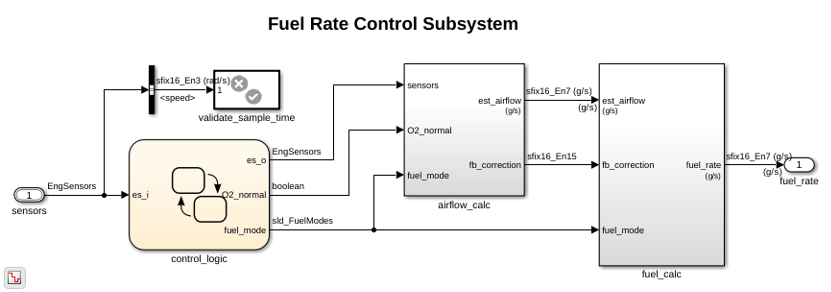

Figure 2: The air-fuel ratio controller subsystem

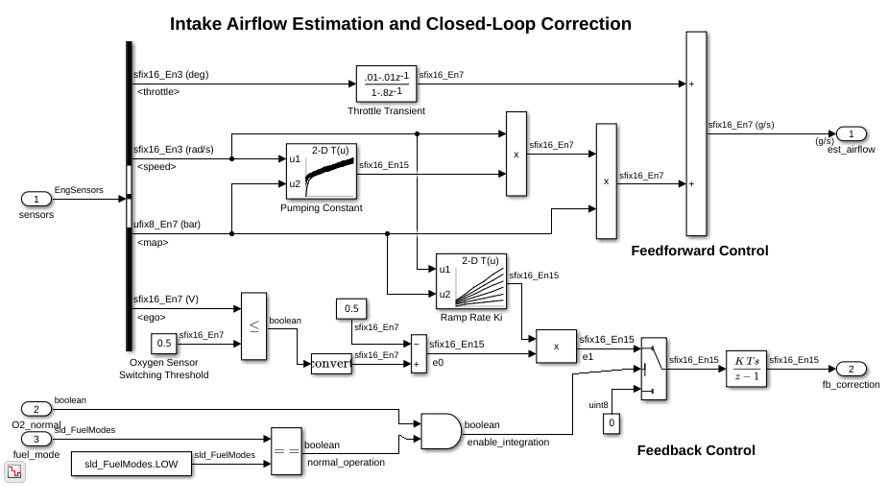

The intake airflow estimation and closed loop correction system contains two lookup tables, Pumping Constant and Ramp Rate Ki.

open_system('sldemo_fuelsys/fuel_rate_control/airflow_calc');

Figure 3: The airflow_calc subsystem

The control logic is a Stateflow chart that specifies the different modes of operation.

open_system('sldemo_fuelsys/fuel_rate_control/control_logic');

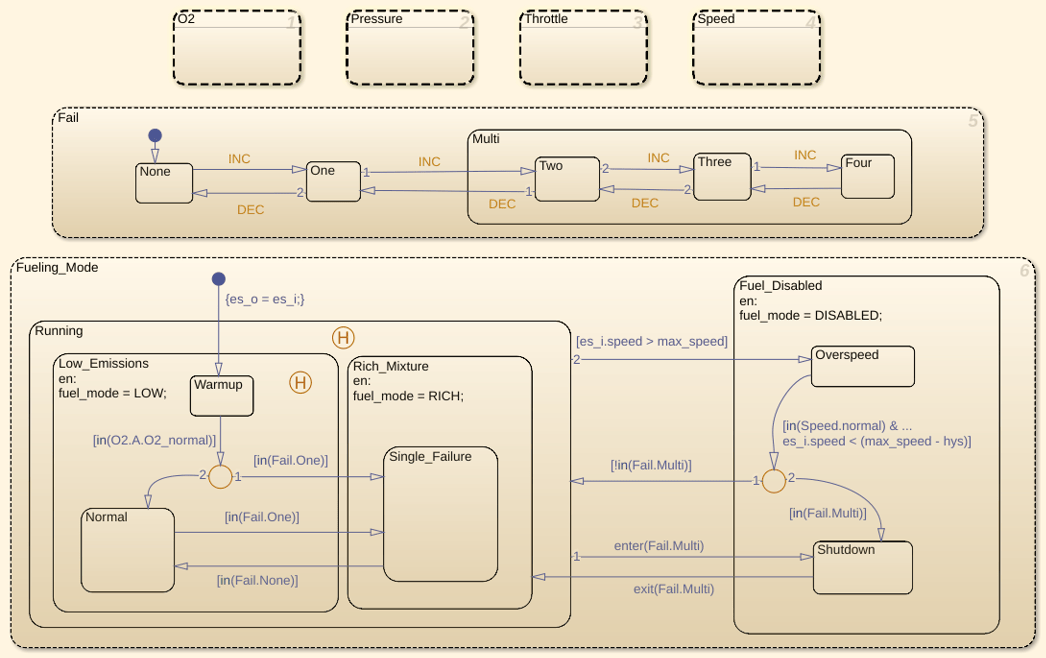

Figure 4: Fuel ratio controller logic

Remove the window clutter.

close_system('sldemo_fuelsys/fuel_rate_control/airflow_calc');
close_system('sldemo_fuelsys/fuel_rate_control/fuel_calc');
close_system('sldemo_fuelsys/fuel_rate_control/control_logic');
hDemo.rt=sfroot;hDemo.m=hDemo.rt.find('-isa','Simulink.BlockDiagram');
hDemo.c=hDemo.m.find('-isa','Stateflow.Chart','-and','Name','control_logic');
hDemo.c.visible=false;
close_system('sldemo_fuelsys/fuel_rate_control');

Build the air-fuel ratio control system only. Once the code generation process is complete, an HTML report detailing the generated code is displayed. The main body of the code is located in fuel_rate_control.c.

slbuild('sldemo_fuelsys/fuel_rate_control');

### Starting build procedure for: fuel_rate_control
### Successful completion of build procedure for: fuel_rate_control

Build Summary

Top model targets:

Model              Build Reason                                         Status                        Build Duration
====================================================================================================================
fuel_rate_control  Information cache folder or artifacts were missing.  Code generated and compiled.  0h 0m 16.908s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 17.324s

Figure 5 shows snippets of the generated code for the lookup table Pumping Constant.

To see the code for Pumping Constant, right-click the block and select C/C++ Code > Navigate To C/C++ Code.

rtwtrace('sldemo_fuelsys/fuel_rate_control/airflow_calc/Pumping Constant');

The code for the pumping constant contains two breakpoint searches and a 2D interpolation. The SpeedVect breakpoint is unevenly spaced, and while the PressVect breakpoint is evenly spaced, neither have power of two spacing. The current spacing leads to extra code (ROM), including a division, and requires all breakpoints to be in memory (RAM).

Figure 5: Generated code for Pumping Constant lookup (contains unevenly spaced breakpoints)

Optimize Code with Evenly Spaced Power of Two Breakpoints

You can optimize the generated code performance by using evenly spaced power of two breakpoints. In this example, remap the lookup table data in the air-fuel ratio control system based on the existing measured data.

When you loaded the model, the model PostLoadFcn created the lookup table data in the model workspace. Retrieve the original table data via sldemo_fuelsys_data, modify it for evenly spaced power of two, and reassign it in the model workspace.

td = sldemo_fuelsys_data('sldemo_fuelsys', 'get_table_data');

Compute new table data for evenly spaced power of two breakpoints.

ntd.SpeedVect   = 64 : 2^5 : 640;             % 32 rad/sec
ntd.PressVect   = 2*2^-5 : 2^-5 : 1-(2*2^-5); % 0.03 bar
ntd.ThrotVect   = 0:2^1:88;                   % 2 deg
ntd.RampRateKiX = 128:2^7:640;                % 128 rad/sec
ntd.RampRateKiY = 0:2^-2:1;                   % 0.25 bar

Remap table data.

ntd.PumpCon  = interp2(td.PressVect,td.SpeedVect,td.PumpCon, ntd.PressVect',ntd.SpeedVect);
ntd.PressEst = interp2(td.ThrotVect,td.SpeedVect,td.PressEst,ntd.ThrotVect',ntd.SpeedVect);
ntd.SpeedEst = interp2(td.PressVect,td.ThrotVect,td.SpeedEst,ntd.PressVect',ntd.ThrotVect);
ntd.ThrotEst = interp2(td.PressVect,td.SpeedVect,td.ThrotEst,ntd.PressVect',ntd.SpeedVect);

Recompute Ramp Rate table data.

ntd.RampRateKiZ = (1:length(ntd.RampRateKiX))' * (1:length(ntd.RampRateKiY)) * td.Ki;

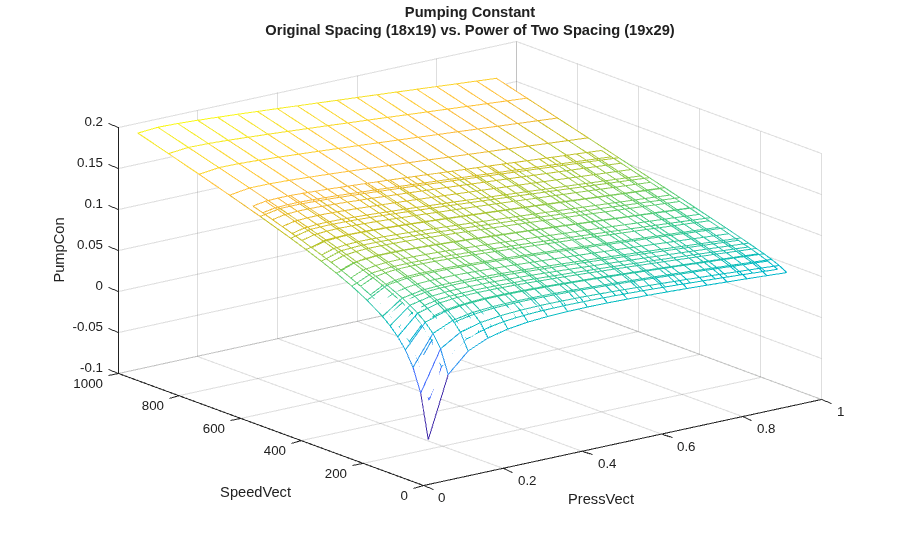

Pumping Constant Power of Two Spacing

figure('Tag','CloseMe');
mesh(td.PressVect,td.SpeedVect,td.PumpCon), hold on
mesh(ntd.PressVect,ntd.SpeedVect,ntd.PumpCon)
xlabel('PressVect'), ylabel('SpeedVect'), zlabel('PumpCon')
title(sprintf('Pumping Constant\nOriginal Spacing (%dx%d) vs. Power of Two Spacing (%dx%d)',...
    size(td.PumpCon,1),size(td.PumpCon,2),size(ntd.PumpCon,1),size(ntd.PumpCon,2)));

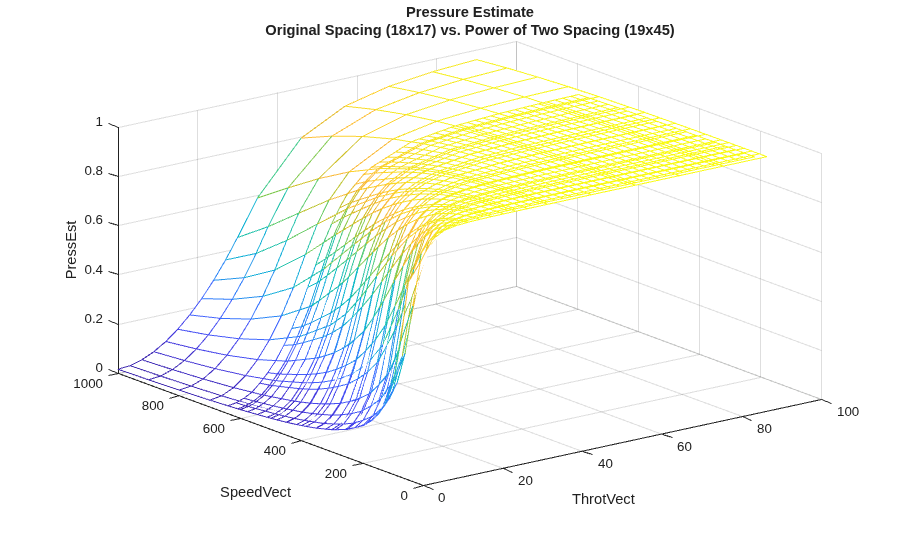

Pressure Estimate Power of Two Spacing

clf
mesh(td.ThrotVect,td.SpeedVect,td.PressEst), hold on
mesh(ntd.ThrotVect,ntd.SpeedVect,ntd.PressEst)
xlabel('ThrotVect'), ylabel('SpeedVect'), zlabel('PressEst')
title(sprintf('Pressure Estimate\nOriginal Spacing (%dx%d) vs. Power of Two Spacing (%dx%d)',...
    size(td.PressEst,1),size(td.PressEst,2),size(ntd.PressEst,1),size(ntd.PressEst,2)));

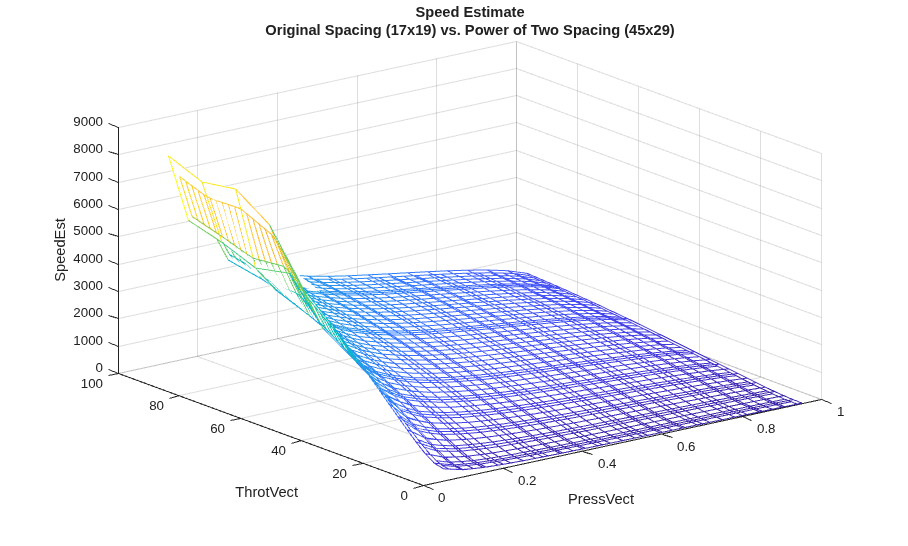

Speed Estimate Power of Two Spacing

clf
mesh(td.PressVect,td.ThrotVect,td.SpeedEst), hold on,
mesh(ntd.PressVect,ntd.ThrotVect,ntd.SpeedEst)
xlabel('PressVect'), ylabel('ThrotVect'), zlabel('SpeedEst')
title(sprintf('Speed Estimate\nOriginal Spacing (%dx%d) vs. Power of Two Spacing (%dx%d)',...
    size(td.SpeedEst,1),size(td.SpeedEst,2),size(ntd.SpeedEst,1),size(ntd.SpeedEst,2)));

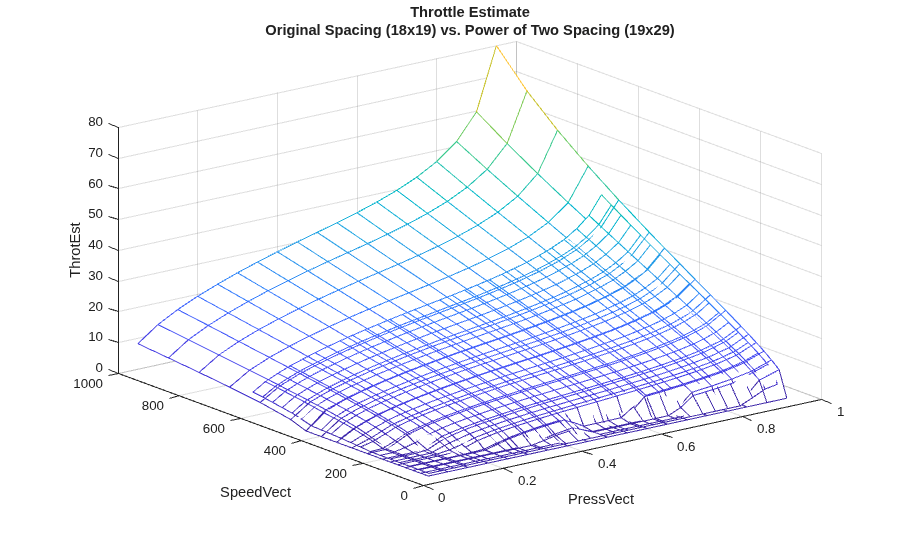

Throttle Estimate Power of Two Spacing

clf
mesh(td.PressVect,td.SpeedVect,td.ThrotEst), hold on
mesh(ntd.PressVect,ntd.SpeedVect,ntd.ThrotEst)
xlabel('PressVect'), ylabel('SpeedVect'), zlabel('ThrotEst')
title(sprintf('Throttle Estimate\nOriginal Spacing (%dx%d) vs. Power of Two Spacing (%dx%d)',...
    size(td.ThrotEst,1),size(td.ThrotEst,2),size(ntd.ThrotEst,1),size(ntd.ThrotEst,2)));

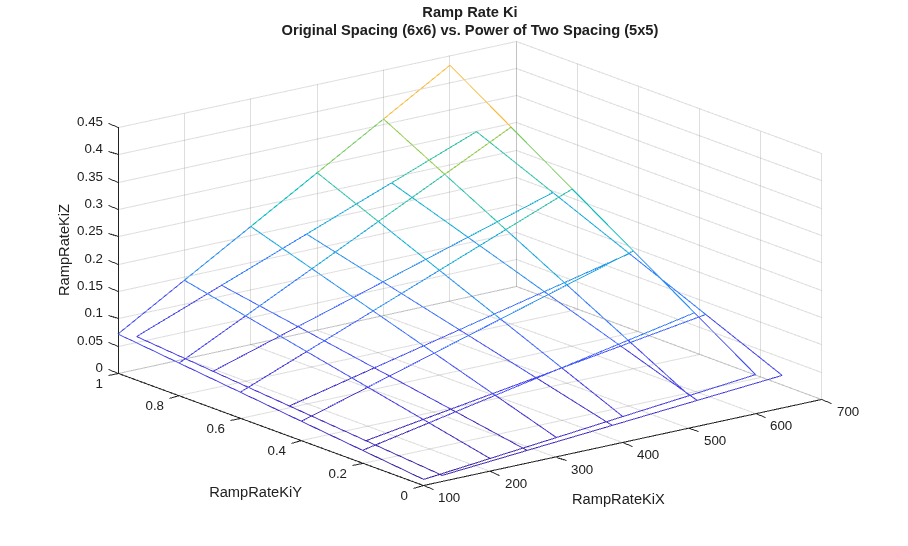

Ramp Rate Ki Power of Two Spacing

clf
mesh(td.RampRateKiX,td.RampRateKiY,td.RampRateKiZ'), hold on
mesh(ntd.RampRateKiX,ntd.RampRateKiY,ntd.RampRateKiZ'), hidden off
xlabel('RampRateKiX'), ylabel('RampRateKiY'), zlabel('RampRateKiZ')
title(sprintf('Ramp Rate Ki\nOriginal Spacing (%dx%d) vs. Power of Two Spacing (%dx%d)',...
    size(td.RampRateKiZ,1),size(td.RampRateKiZ,2),size(ntd.RampRateKiZ,1),size(ntd.RampRateKiZ,2)));

The default configuration causes the model to log simulation data for the top-level signals. These simulation results are stored in the workspace variable sldemo_fuelsys_output. Before updating the model workspace with the new data, save the result of the simulation in hDemo.orig_data for later comparison with the evenly spaced power of two table simulation.

set_param('sldemo_fuelsys','StopTime','8')
sim('sldemo_fuelsys')
hDemo.orig_data = sldemo_fuelsys_output;

Reassign the new table data in the model workspace.

hDemo.hWS = get_param('sldemo_fuelsys', 'ModelWorkspace');
hDemo.hWS.assignin('PressEst',   ntd.PressEst);
hDemo.hWS.assignin('PressVect',  ntd.PressVect);
hDemo.hWS.assignin('PumpCon',    ntd.PumpCon);
hDemo.hWS.assignin('SpeedEst',   ntd.SpeedEst);
hDemo.hWS.assignin('SpeedVect',  ntd.SpeedVect);
hDemo.hWS.assignin('ThrotEst',   ntd.ThrotEst);
hDemo.hWS.assignin('ThrotVect',  ntd.ThrotVect);
hDemo.hWS.assignin('RampRateKiX',ntd.RampRateKiX);
hDemo.hWS.assignin('RampRateKiY',ntd.RampRateKiY);
hDemo.hWS.assignin('RampRateKiZ',ntd.RampRateKiZ);

Reconfigure lookup tables for evenly spaced data.

hDemo.lookupTables = find_system(get_param('sldemo_fuelsys','Handle'),...
    'BlockType','Lookup_n-D');

for hDemo_blkIdx = 1 : length(hDemo.lookupTables)
    hDemo.blkH = hDemo.lookupTables(hDemo_blkIdx);
    set_param(hDemo.blkH,'IndexSearchMethod','Evenly spaced points')
    set_param(hDemo.blkH,'InterpMethod','None - Flat')
    set_param(hDemo.blkH,'ProcessOutOfRangeInput','None')
end

Rerun the simulation for the evenly spaced power of two implementation, and store the result of the simulation in hDemo.pow2_data.

sim('sldemo_fuelsys')
hDemo.pow2_data = sldemo_fuelsys_output;

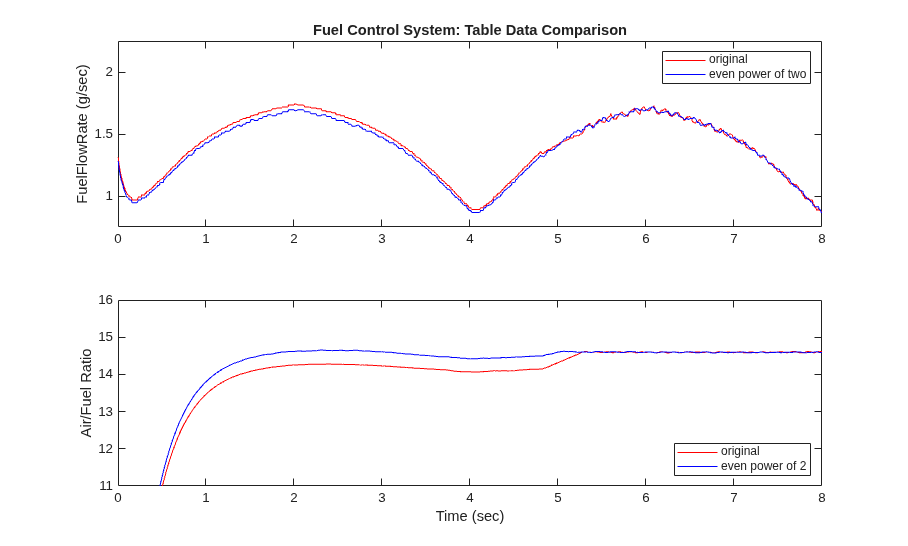

Compare the result of the simulation for the fuel flow rate and the air fuel ratio. The simulation exercised the Pumping Constant and Ramp Rate Ki lookup tables, and shows an excellent match for the evenly spaced power of two breakpoints relative to the original table data.

figure('Tag','CloseMe');
subplot(2,1,1);
plot(hDemo.orig_data.get('fuel').Values.Time, ...
     hDemo.orig_data.get('fuel').Values.Data,'r-');
hold
plot(hDemo.pow2_data.get('fuel').Values.Time, ...
     hDemo.pow2_data.get('fuel').Values.Data,'b-');
ylabel('FuelFlowRate (g/sec)');
title('Fuel Control System: Table Data Comparison');
legend('original','even power of two');
axis([0 8 .75 2.25]);
subplot(2,1,2);
plot(hDemo.orig_data.get('air_fuel_ratio').Values.Time, ...
     hDemo.orig_data.get('air_fuel_ratio').Values.Data,'r-');
hold
plot(hDemo.pow2_data.get('air_fuel_ratio').Values.Time, ...
     hDemo.pow2_data.get('air_fuel_ratio').Values.Data,'b-');
ylabel('Air/Fuel Ratio');
xlabel('Time (sec)');
legend('original','even power of 2','Location','SouthEast');
axis([0 8 11 16]);

Current plot held
Current plot held

Rebuild the air-fuel ratio control system and compare the difference in the generated lookup table code.

slbuild('sldemo_fuelsys/fuel_rate_control');

### Starting build procedure for: fuel_rate_control
### Successful completion of build procedure for: fuel_rate_control

Build Summary

Top model targets:

Model              Build Reason                     Status                        Build Duration
================================================================================================
fuel_rate_control  Generated code was out of date.  Code generated and compiled.  0h 0m 12.734s

1 of 1 models built (0 models already up to date)
Build duration: 0h 0m 13.309s

Figure 6 shows the same snippets of the generated code for the 'Pumping Constant' lookup table. The generated code for evenly spaced power of two breakpoints is significantly more efficient than the unevenly spaced breakpoint case. The code consists of two simple breakpoint calculations and a direct index into the 2D lookup table data. The expensive division is avoided and the breakpoint data is not required in memory.

rtwtrace('sldemo_fuelsys/fuel_rate_control/airflow_calc/Pumping Constant');

Figure 6: Generated code for Pumping Constant lookup (evenly spaced power of two breakpoints)

Close the example.

close(findobj(0,'Tag','CloseMe'));
clear hDemo* td ntd
close_system('sldemo_fuelsys',0);

Model Advisor for Code Efficiency

Improving code efficiency by using evenly spaced power of two breakpoints is one of several important optimizations for fixed-point code generation. The Simulink Model Advisor is a great tool for identifying other methods of improving code efficiency for a Simulink and Stateflow model. Make sure to run the checks under the Embedded Coder folder or Simulink Coder™.
