Compute filtered output, filter error, and filter weights for given input and desired signal using RLS adaptive filter algorithm
Filtering / Adaptive Filters
The RLS Filter block recursively computes the least squares estimate (RLS) of the FIR filter weights. The block estimates the filter weights, or coefficients, needed to convert the input signal into the desired signal. Connect the signal you want to filter to the Input port. The input signal can be a scalar or a column vector. Connect the signal you want to model to the Desired port. The desired signal must have the same data type, complexity, and dimensions as the input signal. The Output port outputs the filtered input signal. The Error port outputs the result of subtracting the output signal from the desired signal.
The corresponding RLS filter is expressed in matrix form as
where λ-1 denotes the reciprocal of the exponential weighting factor. The variables are as follows
The current time index
The vector of buffered input samples at step n
The inverse covariance matrix at step n
The gain vector at step n
The vector of filter-tap estimates at step n
The filtered output at step n
The estimation error at step n
The desired response at step n
The forgetting factor
The implementation of the algorithm in the block is optimized by exploiting the symmetry of the inverse covariance matrix P(n). This decreases the total number of computations by a factor of two.
Use the Filter length parameter to specify the length of the filter weights vector.
The Forgetting factor (0 to 1) parameter corresponds to λ in the
equations. It specifies how quickly the filter “forgets” past sample
information. Setting λ=
1 specifies an infinite memory. Typically, , where L is the filter length. You can specify a
forgetting factor using the input port, Lambda, or enter a value in the
Forgetting factor (0 to 1) parameter in the Block Parameters:
RLS Filter dialog box.
Enter the initial filter weights, , as a vector or a scalar for the Initial value of filter weights parameter. When you enter a scalar, the block uses the scalar value to create a vector of filter weights. This vector has length equal to the filter length and all of its values are equal to the scalar value.
The initial value of P(n) is
where you specify in the Initial input variance estimate parameter.
When you select the Adapt port check box, an Adapt port appears on the block. When the input to this port is nonzero, the block continuously updates the filter weights. When the input to this port is zero, the filter weights remain at their current values.
When you want to reset the value of the filter weights to their initial values, use the Reset input parameter. The block resets the filter weights whenever a reset event is detected at the Reset port. The reset signal rate must be the same rate as the data signal input.
From the Reset input list, select
to disable the Reset port. To enable the Reset port, select one of the following from
the Reset input list:
Rising edge— Triggers a reset operation when the Reset input does one of the following:
Rises from a negative value to a positive value or zero
Rises from zero to a positive value, where the rise is not a continuation of a rise from a negative value to zero; see the following figure
Falling edge— Triggers a reset operation when the Reset input does one of the following:
Falls from a positive value to a negative value or zero
Falls from zero to a negative value, where the fall is not a continuation of a fall from a positive value to zero; see the following figure
Either edge— Triggers a reset operation when the Reset input is a
Falling edge, as described above
Non-zero sample— Triggers a reset operation at each sample time that the Reset input is not zero
Select the Output filter weights check box to create a Wts port on the block. For each iteration, the block outputs the current updated filter weights from this port.

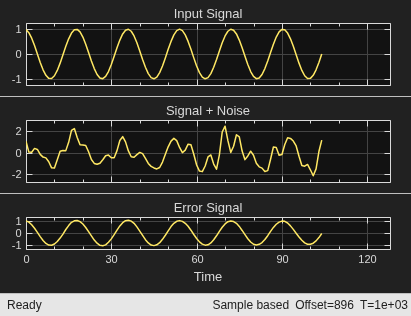

illustrates a noise cancellation system built around the RLS Filter block.
- Filter length
Enter the length of the FIR filter weights vector.
- Specify forgetting factor via
Dialogto enter a value for the forgetting factor in the Block parameters: RLS Filter dialog box. Select
Input portto specify the forgetting factor using the Lambda input port.
- Forgetting factor (0 to 1)
Enter the exponential weighting factor in the range
1. A value of
1specifies an infinite memory. Tunable (Simulink).
- Initial value of filter weights
Specify the initial values of the FIR filter weights.
- Initial input variance estimate
The initial value of 1/P(n).
- Adapt port
Select this check box to enable the Adapt input port.
- Reset input
Select this check box to enable the Reset input port.
- Output filter weights
Select this check box to export the filter weights from the Wts port.
Hayes, M.H. Statistical Digital Signal Processing and Modeling. New York: John Wiley & Sons, 1996.
Supported Data Types
Double-precision floating point
Single-precision floating point
|Kalman Adaptive Filter (Obsolete)||DSP System Toolbox|
|LMS Filter||DSP System Toolbox|
|Block LMS Filter||DSP System Toolbox|
|Fast Block LMS Filter||DSP System Toolbox|
See Noise Cancellation in Simulink Using Normalized LMS Adaptive Filter for related information.
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on
memset functions (
string.h) under certain
