Generate Sensor Detection Blocks Using Driving Scenario Designer

This example shows how to update the radar and camera sensors of a Simulink® model by using the Driving Scenario Designer app. The Driving Scenario Designer app enables you to generate multiple sensor configurations quickly and interactively. You can then use these generated sensor configurations in your existing Simulink models to test your driving algorithms more thoroughly.

Before beginning this example, add the example file folder to the MATLAB® search path.


Inspect and Simulate Model

The model used in this example implements an autonomous emergency braking (AEB) sensor fusion algorithm. For more details about this model, see the Autonomous Emergency Braking with Sensor Fusion example. Open this model.


The driving scenario and sensor detection generators used to test the algorithm are located in the Vehicle Environment > Actors and Sensor Simulation subsystem. Open this subsystem.

open_system('AEBTestBenchExample/Vehicle and Environment/Actors and Sensor Simulation')

A Scenario Reader block reads the actors and roads from the specified Driving Scenario Designer file. The block outputs the non-ego actors. These actors are then passed to Radar Detection Generator and Vision Detection Generator sensor blocks. During simulation, these blocks generate detections of the non-ego actors.

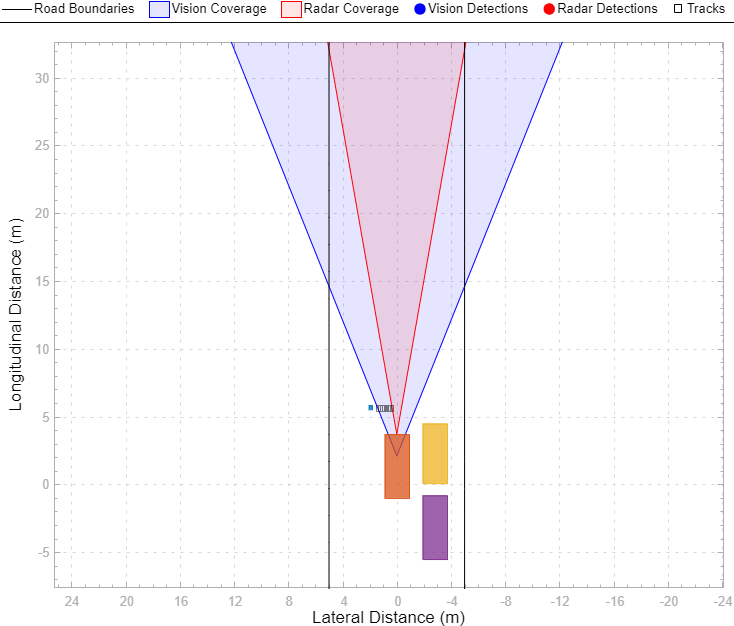

Simulate and visualize the scenario on the Bird's-Eye Scope. On the model toolstrip, under Review Results, click Bird's-Eye Scope. In the scope, click Find Signals, and then click Run to run the simulation. In this scenario, the AEB model causes the ego vehicle to brake in time to avoid a collision with a pedestrian child who is crossing the street.

During this example, you replace the existing sensors in this model with new sensors created in the Driving Scenario Designer app.

Load Scenario in App

The model uses a driving scenario that is based on one of the prebuilt Euro NCAP test protocol scenarios. You can load these scenarios from the Driving Scenario Designer app. For more details on these scenarios, see Euro NCAP Driving Scenarios in Driving Scenario Designer.

Load the scenario file into the app.


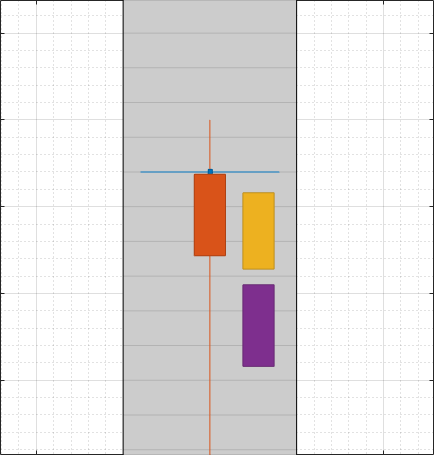

To simulate the scenario in the app, click Run. In the app simulation, unlike in the model simulation, the ego vehicle collides with the pedestrian. The app uses a predefined ego vehicle trajectory, whereas the model uses the AEB algorithm to control the trajectory and cause the ego vehicle to brake.

Load Sensors

The loaded scenario file contains only the roads and actors in the scenario. A separate file contains the sensors. To load these sensors into the scenario, on the app toolstrip, select Open > Sensors. Open the AEBSensor.mat file located in the example folder. Alternatively, from your MATLAB root folder, navigate to and open this file: matlabroot/examples/driving/AEBSensors.mat.

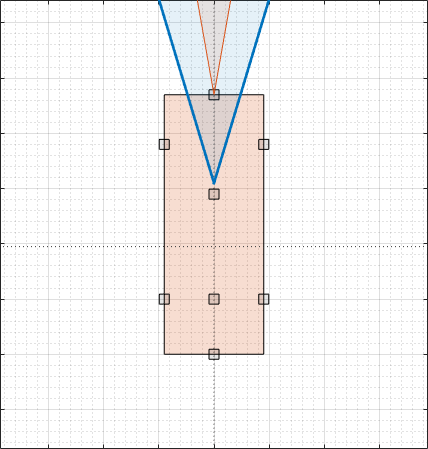

A radar sensor is mounted to the front bumper of the ego vehicle. A camera sensor is mounted to the front window of the ego vehicle.

Update Sensors

Update the radar and camera sensors by changing their locations on the ego vehicles.

  1. On the Sensor Canvas, click and drag the radar sensor to the predefined Front Window location.

  2. Click and drag the camera sensor to the predefined Front Bumper location. At this predefined location, the app updates the camera from a short-range sensor to a long-range sensor.

  3. Optionally, in the left pane, on the Sensors tab, try modifying the parameters of the camera and radar sensors. For example, you can change the detection probability or the accuracy and noise settings.

  4. Save a copy of this new scenario and sensor configuration to a writeable location.

For more details on working with sensors in the app, see Create Driving Scenario Interactively and Generate Synthetic Sensor Data.

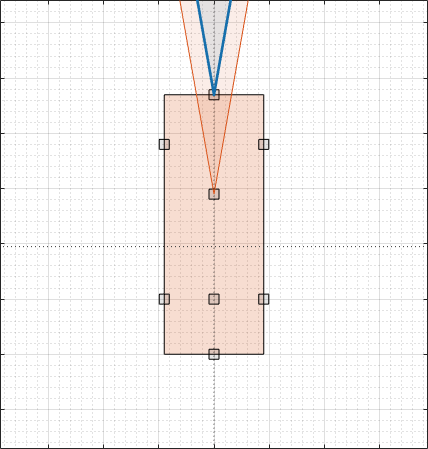

This image shows a sample updated sensor configuration.

Export Scenario and Sensors to Simulink

To generate Simulink blocks for the scenario and its sensors, on the app toolstrip, select Export > Export Simulink Model. This model shows sample blocks that were exported from the app.


If you made no changes to the roads and actors in the scenario, then the Scenario Reader block reads the same road and actor data that was used in the AEB model. The Radar Detection Generator and Vision Detection Generator blocks model the radar and camera that you created in the app.

Copy Exported Scenario and Sensors into Existing Model

Replace the scenario and sensors in the AEB model with the newly generated scenario and sensors. Even if you did not modify the roads and actors and read data from the same scenario file, replacing the existing Scenario Reader block is still a best practice. Using this generated block keeps the bus names for scenario and sensors consistent as data passes between them.

To get started, in the AEB model, reopen the Vehicle Environment > Actors and Sensor Simulation subsystem.

open_system('AEBTestBenchExample/Vehicle and Environment/Actors and Sensor Simulation')

Next, to cope the scenario and sensor blocks with the generated ones, follow these steps:

  1. Delete the existing Scenario Reader, Radar Detection Generator, and Vision Detection Generator blocks. Do not delete the signal lines that are input to the Scenario Reader block or output from the sensor blocks. Alternatively, disconnect these blocks without deleting them, and comment them out of the model. Using this option, you can compare the existing blocks to the new one and revert back if needed. Select each block. Then, on the Block tab, select Comment Out.

  2. Copy the blocks from the generated model into the AEB model.

  3. Open the copied-in Scenario Reader block and set the Source of ego vehicle parameter to Input port. Click OK. The AEB model defines the ego vehicle in the Pack Ego Actor block, which you connect to the Ego Vehicle port of the Scenario Reader block.

  4. Connect the existing signal lines to the copied-in blocks. To clean up the layout of the model, on the Format tab of the model, select Auto Arrange.

  5. Verify that the updated subsystem block diagram resembles the pre-existing block diagram. Then, save the model, or save a copy of the model to a writeable location.

Simulate Updated Model

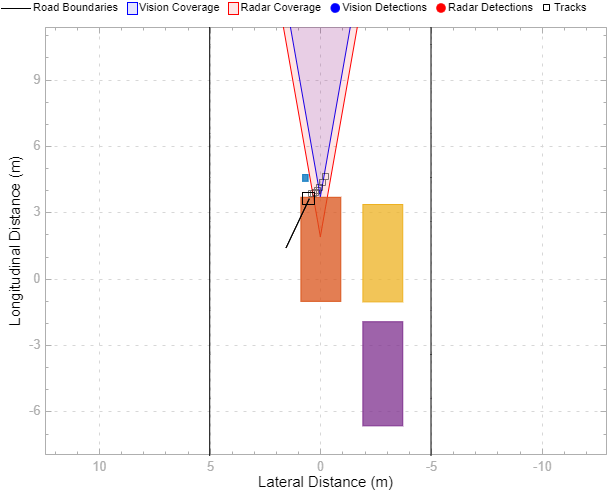

To visualize the updated scenario simulation, reopen the Bird's-Eye Scope, click Find Signals, and then click Run. With this updated sensor configuration, the ego vehicle does not brake in time.

To try different sensor configurations, reload the scenario and sensors in the app, export new scenarios and sensors, and copy them into the AEB model.

When you are done simulating the model, remove the example file folder from the MATLAB search path.
