Predict
Libraries:
Deep Learning Toolbox /
Deep Neural Networks
Description
The Predict block predicts responses for the data at the input by using the trained network specified through the block parameter. This block allows loading of a pretrained network into the Simulink® model from a MAT-file or from a MATLAB® function.
Note
Use the Predict block to make predictions in Simulink. To make predictions programmatically using MATLAB code, use the minibatchpredict
or predict
function.
Examples
Lane and Vehicle Detection in Simulink Using Deep Learning

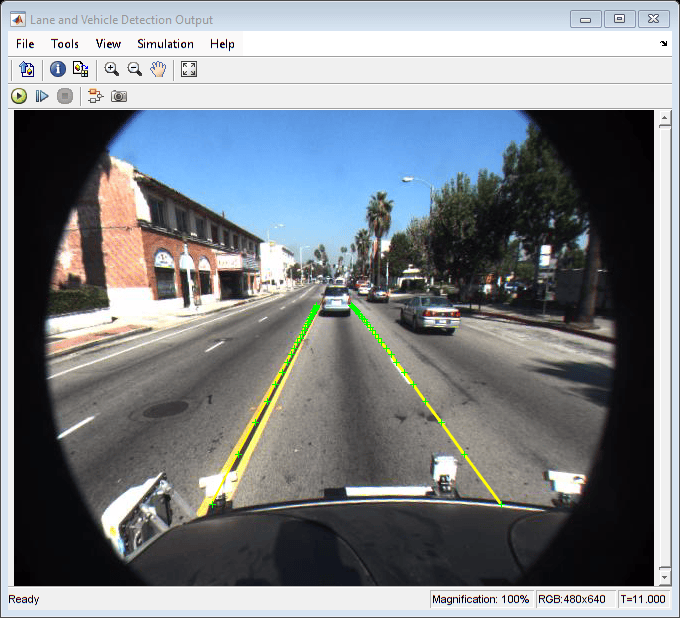

Use deep convolutional neural networks inside a Simulink® model to perform lane and vehicle detection. This example takes the frames from a traffic video as an input, outputs two lane boundaries that correspond to the left and right lanes of the ego vehicle, and detects vehicles in the frame.
Ports
Input
input — Image, feature, sequence, or time series data
numeric array
The input ports of the Predict block takes the names of the input
layers of the loaded network. For example, if you specify
imagePretrainedNetwork
for MATLAB
function
, then the input port of the Predict block has the
label data. Based on the network loaded, the input to the predict
block can be image, sequence, or time series data.
The layout of the input depend on the type of data.
Data | Layout of Predictors |
---|---|
2-D images | A h-by-w-by-c-by-N numeric array, where h, w, and c are the height, width, and number of channels of the images, respectively, and N is the number of images. |
Vector sequences | s-by-c matrices, where s is the sequence length, and c is the number of features of the sequences. |
2-D image sequences | h-by-w-by-c-by-s arrays, where h, w, and c correspond to the height, width, and number of channels of the images, respectively, and s is the sequence length. |
Features | A N-by-numFeatures numeric array,
where N is the number of observations, and
numFeatures is the number of features of the input
data. |
If the array contains NaN
s, then they are propagated through
the network.
Output
output — Predicted scores, responses, or activations
numeric array
The outputs port of the Predict block takes the names of the output
layers of the network loaded. For example, if you specify
imagePretrainedNetwork
for MATLAB
function
, then the output port of the Predict block is
labeled prob_flatten. Based on the network loaded, the output of
the Predict block can represent predicted scores or responses.
The predicted scores or responses is returned as a K-by-N array, where K is the number of classes, and N is the number of observations.
If you enable Activations
for a network layer, the
Predict block creates a new output port with the name of the selected
network layer. This port outputs the activations from the selected network
layer.
The activations from the network layer is returned as a numeric array. The format of output depends on the type of input data and the type of layer output.
For 2-D image output, activations is an h-by-w-by-c-by-n array, where h, w, and c are the height, width, and number of channels for the output of the chosen layer, respectively, and n is the number of images.
For a single time-step containing vector data, activations is a c-by-n matrix, where c is the number of features in the sequence and n is the number of sequences.
For a multi time-step containing vector data, activations is a c-by-n-by-s matrix, where c is the number of features in the sequence, n is the number of sequences and s is the sequence length.
For a single time-step containing 2-D image data, activations is a h-by-w-by-c-by-n array, where n is the number of sequences, h, w, and c are the height, width, and the number of channels of the images, respectively.
Parameters
Network — Source for trained network
Network from MAT-file
(default) | Network from MATLAB function
Specify the source for the trained network. Select one of the following:
Network from MAT-file
— Import a trained network from a MAT-file containing adlnetwork
object.Network from MATLAB function
— Import a pretrained network from a MATLAB function. For example, to use a pretrained GoogLeNet, create a functionpretrainedGoogLeNet
in a MATLAB M-file, and then import this function.function net = pretrainedGoogLeNet net = imagePretrainedNetwork("googlenet"); end
Programmatic Use
Block Parameter:
Network |
Type: character vector, string |
Values:
'Network from MAT-file' | 'Network from MATLAB
function' |
Default:
'Network from MAT-file' |
File path — MAT-file containing trained network
untitled.mat
(default) | MAT-file path or name
This parameter specifies the name of the MAT-file that contains the trained deep learning network to load. If the file is not on the MATLAB path, use the Browse button to locate the file.
Dependencies
To enable this parameter, set the Network parameter to Network from MAT-file
.
Programmatic Use
Block Parameter: NetworkFilePath |
Type: character vector, string |
Values: MAT-file path or name |
Default: 'untitled.mat' |
MATLAB function — MATLAB function name
squeezenet
(default) | MATLAB function name
This parameter specifies the name of the MATLAB function for the pretrained deep learning
network. For example, to use a pretrained GoogLeNet, create a function
pretrainedGoogLeNet
in a MATLAB M-file, and then import this
function.
function net = pretrainedGoogLeNet net = imagePretrainedNetwork("googlenet"); end
Dependencies
To enable this parameter, set the Network parameter to Network from MATLAB function
.
Programmatic Use
Block Parameter: NetworkFunction |
Type: character vector, string |
Values: MATLAB function name |
Default: 'squeezenet' |
Mini-batch size — Size of mini-batches
128 (default) | positive integer
Size of mini-batches to use for prediction, specified as a positive integer. Larger mini-batch sizes require more memory, but can lead to faster predictions.
Programmatic Use
Block Parameter: MiniBatchSize |
Type: character vector, string |
Values: positive integer |
Default: '128' |
Predictions — Output predicted scores or responses
on
(default) | off
Enable output ports that return predicted scores or responses.
Programmatic Use
Block Parameter:
Predictions |
Type: character vector, string |
Values:
'off' | 'on' |
Default:
'on' |
Input data formats — Input data format of dlnetwork
character vector | string
This parameter specifies the input data format expected by the trained dlnetwork
.
Data format, specified as a string scalar or a character vector. Each character in the string must be one of the following dimension labels:
"S"
— Spatial"C"
— Channel"B"
— Batch"T"
— Time"U"
— Unspecified
For example, for an array containing a batch of sequences where the first, second,
and third dimension correspond to channels, observations, and time steps, respectively,
you can specify that it has the format "CBT"
.
You can specify multiple dimensions labeled "S"
or "U"
.
You can use the labels "C"
, "B"
, and
"T"
once each, at most. The software ignores singleton trailing
"U"
dimensions after the second dimension.
For more information, see Deep Learning Data Formats.
By default, the parameter uses the data format that the network expects.
Dependencies
To enable this parameter, set the Network parameter to
Network from MAT-file
to import a trained dlnetwork
object from a
MAT-file.
Programmatic Use
Block Parameter:
InputDataFormats |
Type: character vector, string |
Values: For a network with one or more inputs,
specify text in the form of: "{'inputlayerName1', 'SSC'; 'inputlayerName2',
'SSCB'; ...}" . For a network with no input layer and multiple input
ports, specify text in the form of: "{'inputportName1/inport1, 'SSC';
'inputportName2/inport2, 'SSCB'; ...}" . |
Default: Data format that the network expects. For more information, see Deep Learning Data Formats. |
Activations — Output network activations for a specific layer
layers of the network
Use the Activations list to select the layer to extract features from. The selected layers appear as an output port of the Predict block.
Programmatic Use
Block Parameter:
Activations |
Type: character vector, string |
Values: character vector in the form of
'{'layerName1',layerName2',...}' |
Default:
'' |
Tips
You can accelerate your simulations with code generation taking advantage of the Intel® MKL-DNN library. For more details, see Acceleration for Simulink Deep Learning Models.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Usage notes and limitations:
To generate generic C code that does not depend on third-party libraries, in the Configuration Parameters > Code Generation general category, set the Language parameter to
C
.To generate C++ code, in the Configuration Parameters > Code Generation general category, set the Language parameter to
C++
. To specify the target library for code generation, in the Code Generation > Interface category, set the Target Library parameter. Setting this parameter toNone
generates generic C++ code that does not depend on third-party libraries.For a list of networks and layers supported for code generation, see Networks and Layers Supported for Code Generation (MATLAB Coder).
GPU Code Generation
Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.
Usage notes and limitations:
The Language parameter in the Configuration Parameters > Code Generation general category must be set to
C++
.For a list of networks and layers supported for CUDA® code generation, see Supported Networks, Layers, and Classes (GPU Coder).
To learn more about generating code for Simulink models containing the Predict block, see Code Generation for a Deep Learning Simulink Model That Performs Lane and Vehicle Detection (GPU Coder).
Version History
Introduced in R2020bR2024a: SeriesNetwork
and DAGNetwork
are not recommended
Starting in R2024a, the SeriesNetwork
and DAGNetwork
objects are not recommended. This recommendation means that SeriesNetwork
and DAGNetwork
inputs to the Predict block are not
recommended. Use the dlnetwork
objects instead.
dlnetwork
objects have these advantages:
dlnetwork
objects are a unified data type that supports network building, prediction, built-in training, visualization, compression, verification, and custom training loops.dlnetwork
objects support a wider range of network architectures that you can create or import from external platforms.The
trainnet
function supportsdlnetwork
objects, which enables you to easily specify loss functions. You can select from built-in loss functions or specify a custom loss function.Training and prediction with
dlnetwork
objects is typically faster thanLayerGraph
andtrainNetwork
workflows.
Simulink block models with dlnetwork
objects behave differently. The
predicted scores are returned as a K-by-N matrix, where K is the
number of classes, and N is the number of observations.
If you have an existing Simulink block model with a SeriesNetwork
or
DAGNetwork
object, follow these steps to use a dlnetwork
object instead:
Convert the
SeriesNetwork
orDAGNetwork
object to adlnetwork
using thedag2dlnetwork
function.If the input to your block is a vector sequence, transpose the matrix using a transpose block to a size s-by-c, where s is the sequence length, and c is the number of features of the sequences.
Transpose the predicted scores using a transpose block to an N-by-K array, where N is the number of observations, and K is the number of classes.
