close

Close training information plot

Since R2023b

    Description

    close(info) closes the specified training information plot.

    example

    Examples

    collapse all

    Unzip the digit sample data and create an image datastore. The imageDatastore function automatically labels the images based on folder names.

    unzip("DigitsData.zip")
    imds = imageDatastore("DigitsData", ...
        IncludeSubfolders=true, ...
        LabelSource="foldernames");

    Define the convolutional neural network architecture. Specify the size of the images in the input layer of the network and the number of classes in the final fully connected layer. Each image is 28-by-28-by-1 pixels.

    inputSize = [28 28 1];
    numClasses = numel(categories(imds.Labels));

    layers = [
        imageInputLayer(inputSize)
        convolution2dLayer(5,20)
        batchNormalizationLayer
        reluLayer
        fullyConnectedLayer(numClasses)
        softmaxLayer];

    Specify the training options.

    • Train for four epochs using the SGDM solver.

    • Monitor the accuracy metric.

    options = trainingOptions("sgdm", ...
        MaxEpochs=4, ...
        Metrics="accuracy");

    Train the neural network. For classification, use cross-entropy loss. Return the trained network and the training information.

    [net,info] = trainnet(imds,layers,"crossentropy",options);
        Iteration    Epoch    TimeElapsed    LearnRate    TrainingLoss    TrainingAccuracy
        _________    _____    ___________    _________    ____________    ________________
                1        1       00:00:01         0.01          2.7615              3.9062
               50        1       00:00:08         0.01         0.48211              85.938
              100        2       00:00:13         0.01         0.16471              96.094
              150        2       00:00:17         0.01         0.10177              96.094
              200        3       00:00:26         0.01        0.057216                 100
              250        4       00:00:36         0.01        0.031815                 100
              300        4       00:00:40         0.01        0.021116                 100
              312        4       00:00:41         0.01        0.029253              99.219
    Training stopped: Max epochs completed


    View the training information.

    info
    info =
      TrainingInfo with properties:

               TrainingHistory: [312x5 table]
             ValidationHistory: [0x0 table]
        OutputNetworkIteration: 312
                    StopReason: "Max epochs completed"

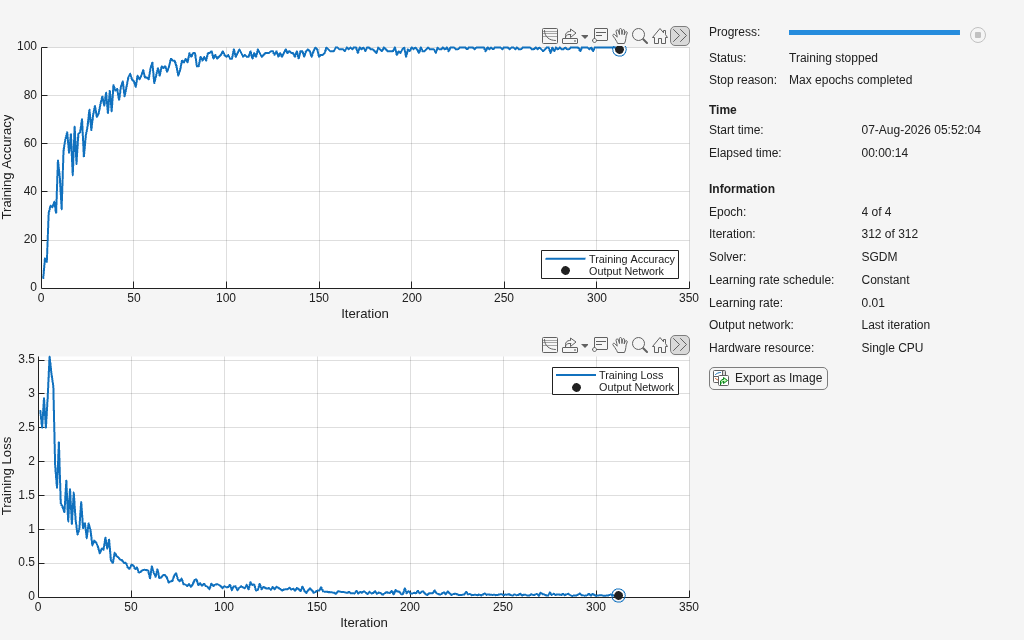

    Display the training information in a plot using the show function.

    show(info)

    Close the plot using the close function.

    close(info)

    Input Arguments

    collapse all

    Training information, specified as a TrainingInfo object.

    Version History

    Introduced in R2023b
