This example shows how to acquire digital data in the foreground by using an external scan clock.

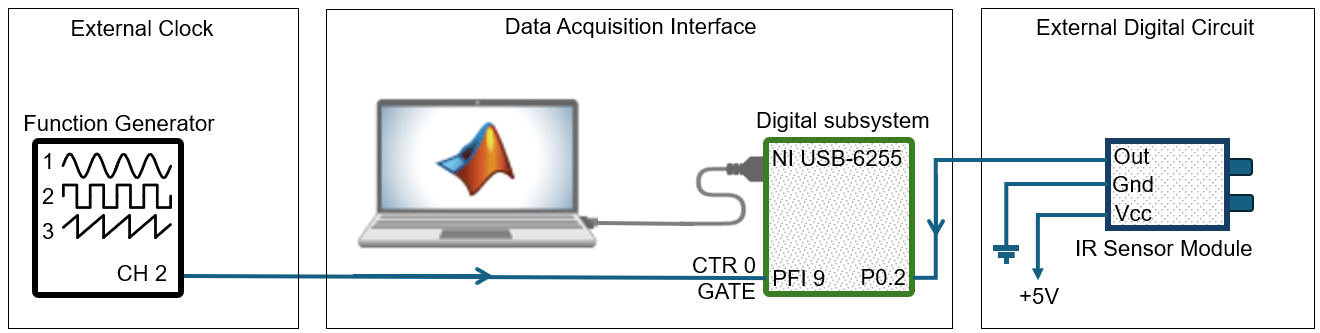

You can use a function generator or the on-board clock from a digital circuit. Here, a function generator is physically wired to terminal PFI9 on device NI 6255.
Create a DataAcquisition object and add a output line at port
d = daq("ni"); ch = addinput(d,"Dev1","Port0/Line2","Digital")
ch = Index Type Device Channel Measurement Type Range Name _____ _____ ______ _____________ ________________ _____ __________________ 1 "dio" "Dev1" "port0/line2" "InputOnly" "n/a" "Dev1_port0/line2"
Devices that support clocked digital I/O operations might not support them on all ports. Check your device specifications.
Set the rate of your DataAcquisition to the expected rate of your external scan clock.
d.Rate = 1000;
Importing an external clock does not automatically set the scan rate of your
DataAcquisition. Manually set the DataAcquisition
Rate property value
to match the expected external clock frequency.
Programmatically add a scan clock to your DataAcquisition, indicating the
source as external and the target as device terminal
clk = addclock(d,"ScanClock","External","Dev1/PFI9")
clk = Clock with properties: Source: 'External' Destination: 'Dev1/PFI9' Type: ScanClock
Acquire clocked digital data and plot it.
dataIn = read(d,seconds(1),"OutputFormat","Matrix"); plot(dataIn(1:100,1))
