Export Data to MATLAB

Use a To Workspace Block

This section explains how to send data from a Simulink® model to the MATLAB® workspace so you can analyze the results of simulations in greater detail.

You can use a To Workspace (Simulink) block to send data to the MATLAB workspace as a vector. For example, you can send the error rate data from the Hamming code model, described in the section Reducing the Error Rate Using a Hamming Code. To insert a To Workspace (Simulink) block into the model, follow these steps:

  1. To add a To Workspace (Simulink) block, begin typing the name 'to workspace' in the model window and select the To Workspace block. Connect it as shown.

Tip

Select the To Workspace block from the DSP System Toolbox™ / Sinks sublibrary. For more information, see To Workspace Block Configuration for Communications System Simulations.

Configure the To Workspace Block

To configure the To Workspace (Simulink) block, follow these steps:

  1. Double-click the block to display its dialog box.

  2. Type hammcode_BER in the Variable name field.

  3. Type 1 in the Limit data points to last field. This limits the output vector to the values at the final time step of the simulation.

  4. Ensure the Save format is set to Array.

  5. Click OK.

When you run a simulation, the model sends the output of the Error Rate Calculation block to the workspace as a vector of size 3, called hamming_BER. The entries of this vector are the same as those shown by the Error Rate Display block.

View Error Rate Data in Workspace

After running a simulation, you can view the output of the To Workspace (Simulink) block by typing the following commands at the MATLAB prompt:

format short e
hammcode_BER

The vector output is the following:

hammcode_BER =
5.4066e-003  1.0000e+002  1.8496e+004

The command format short e displays the entries of the vector in exponential form. The entries are as follows:

  • The first entry is the error rate.

  • The second entry is the total number of errors.

  • The third entry is the total number of comparisons made.

Send Signal and Error Data to Workspace

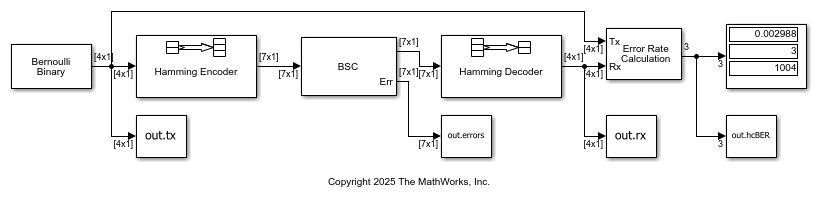

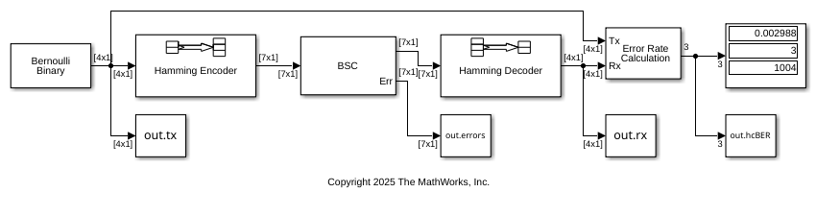

To analyze the error-correction performance of the Hamming code, send the transmitted signal, the received signal, and the error vectors, created by the Binary Symmetric Channel block, to the workspace. An example of this is shown in the following figure.

  1. Assemble blocks to build this model.

  2. Double-click the Binary Symmetric Channel block to open its dialog box, and select Output error vector. This creates an output port for the error data.

  3. Move blocks to make room so that you can insert Hamming Encoder and Hamming Decoder blocks. To find them, start typing Hamming in the model window. Select them from the options presented. These Hamming Encoder and Hamming Decoder blocks are in the Communications Toolbox™/Error Detection and Correction /Block sublibrary.

  4. Add three To Workspace (Simulink) blocks into the model window and connect them as shown in the preceding figure.

    Tip

    Select the To Workspace block from the DSP System Toolbox / Sinks sublibrary. For more information, see To Workspace Block Configuration for Communications System Simulations.

  5. Double-click the left To Workspace (Simulink) block.

    • Set the Variable name parameter to Tx. The block sends the transmitted signal to the workspace as an array called Tx.

    • To save each frame as a separate column in the Tx array, set the Save 2-D signals as parameter to 3-D array (concatenate along third dimension).

    • Click OK.

  6. Double-click the middle To Workspace (Simulink) block:

    • Set the Variable name parameter to errors.

    • To save each frame as a separate column in the errors array, set the Save 2-D signals as parameter to 3-D array (concatenate along third dimension).

    • Click OK.

  7. Double-click the right To Workspace (Simulink) block:

    • Set the Variable name parameter to Rx.

    • To save each frame as a separate column in the Rx array, set the Save 2-D signals as parameter to 3-D array (concatenate along third dimension).

    • Click OK.

View Signal and Error Data in Workspace

After running a simulation, you can display individual frames of data. For example, to display the tenth frame of Tx, at the MATLAB prompt type

Tx(:,:,10)

This returns a column vector of length 4, corresponding to the length of a message word. Signals are typically quite large. So, typing the signal name by itself and displaying the entire transmitted signal is not of interest.

To display the corresponding frame of errors, type

errors(:,:,10)

This returns a column vector of length 7, corresponding to the length of a codeword.

To display frames 1 through 5 of the transmitted signal, type

Tx(:,:,1:5)

Analyze Signal and Error Data

You can use MATLAB to analyze the data from a simulation. For example, to identify the differences between the transmitted and received signals, type

diffs = Tx ~= Rx;

The vector diffs is the XOR of the vectors Tx and Rx. A 1 in diffs indicates that Tx and Rx differ at that position.

You can determine the indices of frames corresponding to message words that are incorrectly decoded with the following MATLAB command:

error_indices = find(diffs);

The vector error_indices records the indices where Tx and Rx differ. To view the first incorrectly decoded word, type

Tx(:,:,error_indices(1))

To view the corresponding frame of errors, type

errors(:,:,error_indices(1))

Analyze this data to determine the error patterns that lead to incorrect decoding.
