# ofdmPrecode

## Syntax

## Description

## Examples

### OFDM Precoding Over Static 2-by-2 MIMO Channel

This example creates a precoding matrix using the channel coefficients from a static 2-by-2 MIMO channel. This process allows MIMO transmissions without interference. It sends precoded data across the channel. Then, it uses effective channel estimates to recover this data, showing a transmission without errors.

rng(1); Nss = 2; % number of data streams Ntx = Nss; % number of transmit chains Nrx = Nss; % number of receive chains Nsym = 7; % number of data symbols per frame Nfft = 64; % OFDM FFT length Ncp = 16; % cyclic prefix length for OFDM modulator

Use the `comm.MIMOChannel`

System object to form a static MIMO channel. Keep the channel static by setting the Doppler shift to zero. Use the channel taps from the System object to obtain the channel matrix.

mimoChannel = comm.MIMOChannel(PathGainsOutputPort=true, ... SpatialCorrelationSpecification="None", ... NumTransmitAntennas=Ntx, ... NumReceiveAntennas=Nrx, ... MaximumDopplerShift=0); [~,chTaps] = mimoChannel(complex(zeros(1,2),zeros(1,2))); % step the object to get the channel taps H = squeeze(chTaps(1,1,:,:));

Break down the channel matrix with singular value decomposition (SVD) to find the precoding matrix and the effective channel matrix. Use the effective channel matrix to equalize the received signal and recover the data symbols.

[U,S,V] = svd(H); P = U'; % Use U' as the precoding matrix Heff = repmat(inv(V/S),1,1,Nfft); % Use inv(V/S) as the effective channel estimate Heff = permute(Heff,[3 1 2]); % Permute Heff to be Nfft-by-Nss-by-Ntx

Create data symbols, apply precoding, and transmit the precoded symbols using OFDM through the MIMO channel. Then, demodulate and equalize to retrieve the data symbols.

data = randi([0 1],2*Nfft*Nsym*Nss,1); % Create serial data stream x = pskmod(data,4,pi/4,InputType="bit"); % Generate QPSK data symbols frame = reshape(x,Nfft,Nsym,Nss); % Reshape to form OFDM grid precodeOut = ofdmPrecode(frame,P); % Precode the data symbols txOut = ofdmmod(precodeOut,Nfft,Ncp); % OFDM modulate the precoded symbols chanOut = mimoChannel(txOut); % Transmit through the MIMO channel rxIn = awgn(chanOut,50); % Add 50 dB of AWGN rxSym = ofdmdemod(rxIn,Nfft,Ncp); % OFDM-demodulate the received signals eqOut = ofdmEqualize(rxSym,Heff); % Equalize the symbols y = reshape(eqOut,[],1); % Serialize the symbols rxData = pskdemod(y,4,pi/4,OutputType="bit"); % Decode the symbols using QPSK

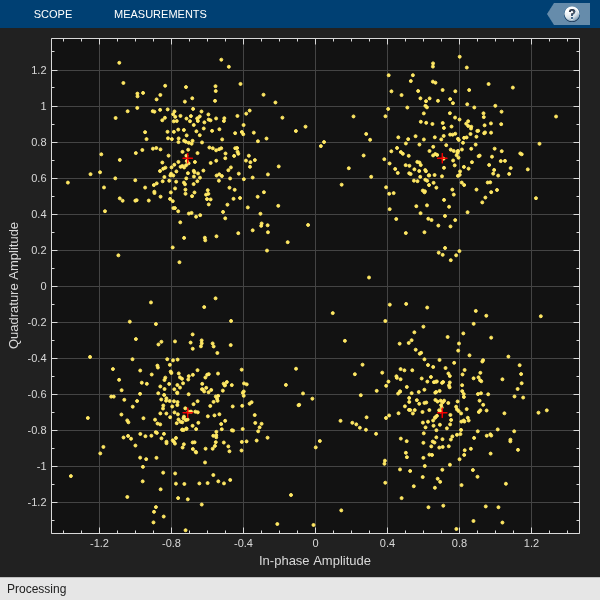

Show that the received data is recovered perfectly without any errors.

constDiag = comm.ConstellationDiagram; constDiag(y);

`fprintf('Bit errors = %d\n',biterr(rxData,data));`

Bit errors = 0

### OFDM Precoding for Static Frequency Selective MIMO Channel

This example shows how to compute precoding matrices for each subcarrier in an OFDM-MIMO system. It uses channel estimates from a static, frequency-selective 2-by-2 MIMO channel. The goal is to enable interference-free MIMO transmission. You send precoded data over the channel and recover it using effective channel estimates to achieve error-free transmission.

rng(1); Nss = 2; % number of data streams Ntx = Nss; % number of transmit chains Nrx = Nss; % number of receive chains Nsym = 7; % number of data symbols per frame Nfft = 64; % OFDM FFT length Ncp = 16; % OFDM cyclic prefix length

**Channel Sounding**

To find the coefficiets of the MIMO channel matrix coefficients, one transmit antenna sends out a reference signal. Both the transmitter and receiver know this signal. Meanwhile, the other transmit antennas send nothing. This way, the receiving antennas get a clear signal to measure the channel coefficients accurately.

Create a static, frequency-selective MIMO channel using the `comm.MIMOChannel`

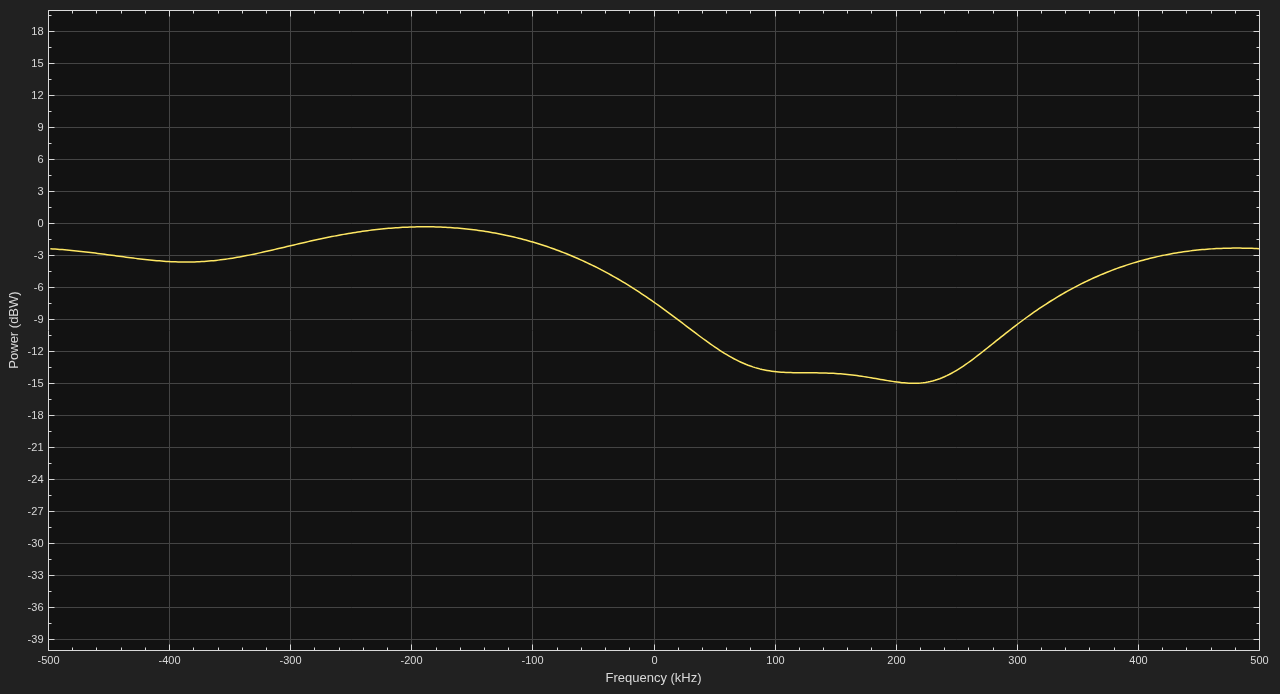

System object. To keep the channel unchanged, set the Doppler shift to zero. Introduce path delays to make the channel frequency-selective. Turn on visualization for the channel from transmit antenna 1 to receive antenna 1. In the resulting frequency response, you can see that each subcarrier goes through a different channel response and each subcarrier needs its own precoding matrix.

mimoChannel = comm.MIMOChannel( ... MaximumDopplerShift=0, ... SpatialCorrelationSpecification="None", ... NumTransmitAntennas=Ntx, ... NumReceiveAntennas=Nrx, ... SampleRate=1e6, ... PathDelays=[0 1e-6 3e-6], ... AveragePathGains=[0 -6 -9], ... Visualization="Frequency Response");

**MIMO Channel Sounding**

For MIMO channel sounding, use an OFDM reference signal to map the channel across all subcarriers and antennas. To find the channel coefficients h11 and h12, send a reference signal from antenna 1 and keep antenna 2 silent.

H = zeros(Nfft,Ntx,Nrx); % MIMO channel matrix ref = pskmod(randi([0 3],Nfft,1,Ntx),4,pi/4); % Generate QPSK reference symbol ref(:,1,2) = zeros(Nfft,1); % Silence tx antenna 2 txOut = ofdmmod(ref,Nfft,Ncp); % OFD-modulate the symbols rxIn = mimoChannel(txOut); % Sound the MIMO channel rxSym = ofdmdemod(rxIn,Nfft,Ncp); % OFDM-demodulate the symols H(:,1,:) = rxSym(:,1,:) ./ ref(:,1,1); % Estimate channel using least-squares

Repeat the sounding process to obtain the channel coefficients h21 and h22 by transmitting a reference signal from antenna 2 while keeping antenna 1 silent.

ref = pskmod(randi([0 3],Nfft,1,Ntx),4,pi/4); % Generate QPSK reference symbol ref(:,1,1) = zeros(Nfft,1); % Silence tx antenna 1 txOut = ofdmmod(ref,Nfft,Ncp); % OFDM-modulate the symbols rxIn = mimoChannel(txOut); % Sound the MIMO channel rxSym = ofdmdemod(rxIn,Nfft,Ncp); % OFDM-demodulate the symbols H(:,2,:) = rxSym(:,1,:) ./ ref(:,1,2); % Estimate channel using least-squares

Break down the channel matrices for each subcarrier using singular value decomposition (SVD). This step gives you the precoding matrix and the effective channel matrix for that subcarrier. Use the effective channel matrix to balance the received signal and retrieve the data symbols.

P = zeros(Nss,Ntx,Nfft); % Precoding array Heff = zeros(Nfft,Nrx,Nss); % Effective channel array for sc = 1:Nfft [U,S,V] = svd(squeeze(H(sc,:,:))); P(:,:,sc) = U'; % Use U' as the precoding matrix Heff(sc,:,:) = inv(V/S); % Use inv(V/S) as the effective channel estimate end

Create data symbols, apply precoding, and send them through the MIMO channel using OFDM.

data = randi([0 1],2*Nfft*Nsym*Nss,1); % Create serial data stream x = pskmod(data,4,pi/4,InputType="bit"); % Generate QPSK data symbols frame = reshape(x,Nfft,Nsym,Nss); % Reshape to form OFDM grid precodeOut = ofdmPrecode(frame,P); % Precode the data symbols txOut = ofdmmod(precodeOut,Nfft,Ncp); % OFDM-modulate the precoded symbols chanOut = mimoChannel(txOut); % Transmit through the MIMO channel

Then, demodulate and equalize the signal to get back the data symbols.

rxIn = awgn(chanOut,60); % Add 60 dB of AWGN rxSym = ofdmdemod(rxIn,Nfft,Ncp); % OFDM-demodulate the received signals eqOut = ofdmEqualize(rxSym,Heff); % Equalize the symbols y = reshape(eqOut,[],1); % Serialize the symbols rxData = pskdemod(y,4,pi/4,OutputType="bit"); % Decode the symbols using QPSK

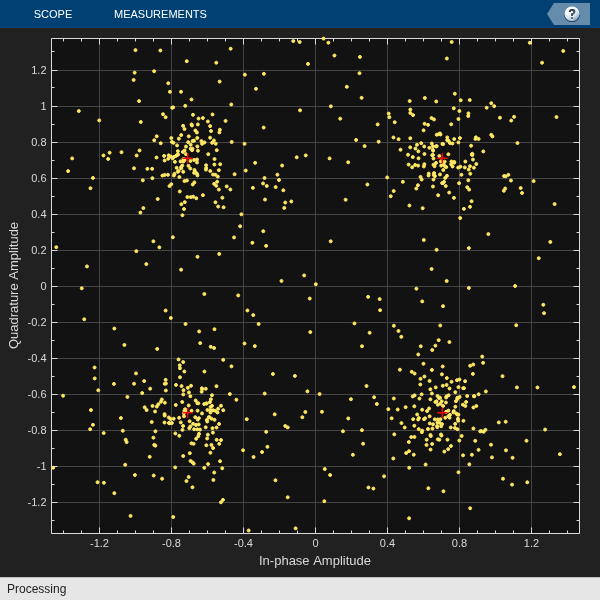

Show that the output constellation is free of interference.

constDiag = comm.ConstellationDiagram; constDiag(y);

Show that the received data is recovered without error.

`fprintf('Bit errors = %d\n',biterr(rxData,data));`

Bit errors = 0

## Input Arguments

`in`

— OFDM input data

array of real or complex values

OFDM input data, specified as an array of real or complex values of size
`N`

-by-_{sc}`N`

-by-_{sym}`N`

where, _{ss}

`N`

is the number of precoded subcarriers._{sc}`N`

is the number of OFDM data symbols._{sym}`N`

is the number of spatial streams._{ss}

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

`P`

— Precoder matrix

matrix | array of precoder matrices

Precoder matrix, specified as a matrix of size
`N`

-by-_{ss}`N`

or an array of precoder matrices of size
_{txchains}`N`

-by-_{ss}`N`

-by-_{txchains}`N`

,
where _{sc}`N`

is the number of transmit chains._{txchains}

When

`P`

is a matrix, it is used across all`N`

subcarriers._{sc}When

`P`

is an array of precoder matrices, each nth matrix in`P(:,:,n)`

is applied to the nth data subcarrier in`in`

.

**Data Types: **`single`

| `double`

**Complex Number Support: **Yes

## Output Arguments

`out`

— Precoded output data

array

Precoded output symbols, returned as an array of size
`N`

-by-_{ss}`N`

-by-_{txchains}`N`

where,_{sc}

`N`

is the number of spatial streams._{ss}`N`

is the number of transmit chains._{txchains}`N`

is the number of precoded subcarriers._{sc}

## Algorithms

### MIMO Overview

MIMO transmission takes advantage of channels that have a large number of multipath signals between the transmitter and receiver. You can mathematically decompose the channel and consider each of the multipath as independent data paths. These data paths increase the channel capacity of the transmission system. Now you can transmit multiple independent data streams over each path with reduced interference between the paths.

Using `N`

antennas, the MIMO transmitter
creates up to _{txchains}`N`

data streams. Let the
number of data streams be _{txchains}`N`

, where
_{ss}`N`

≤
_{ss}`N`

. After the mathematical
decomposition of the channel, the 1-by-_{txchains}`N`

is
transformed rotationally through a matrix multiplication of a precoding matrix with the
input data signal. This rotation of the data across the
_{ss}`N`

dimensions reduces the correlation between
the data significantly, depending on the richness of the multiple data paths. If
_{ss}`N`

<
_{ss}`N`

, the precoding matrix increases the
dimensionality of the signal to send _{txchains}`N`

data
streams through _{ss}`N`

antennas, taking
advantage of a high-rank channel (a channel that can support many independent data
paths)._{txchains}

Mathematically, for a single carrier signal, you precode
1-by-`N`

data stream _{ss}`d`

by
an
`N`

-by-_{ss}`N`

matrix _{txchains}`P`

to get a precoder output `y = d*P`

. For
multicarrier modulation, the data streams and precoding matrices operate independently on a
per-subcarrier basis.

## Version History

**Introduced in R2024b**
