Mesh Networking

Bluetooth 5.0 mesh network communication

The mesh networking capabilities of Bluetooth® Toolbox enable you to create a Bluetooth mesh network and realize mesh packet communication.

Use the features and reference examples to:

  • Create, configure, and visualize a Bluetooth mesh network.

  • Analyze mesh packet communication and compute energy consumption of nodes in the transmission, listen, sleep, and idle states.

  • Simulate managed flooding and visualize the flow of packets.

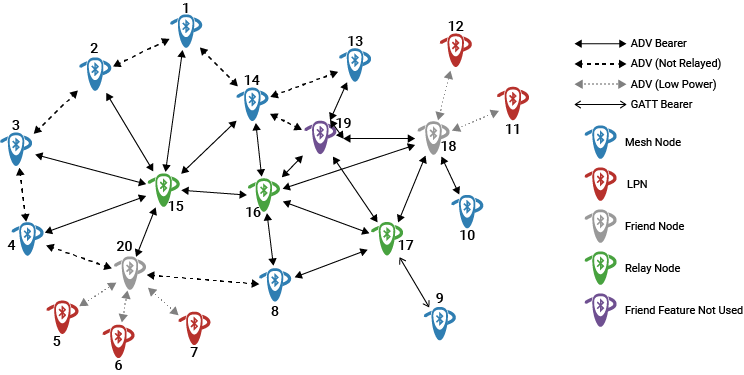

Bluetooth mesh network illustrating the relationship between LPN and Friend nodes


configureFriendshipConfigure friendship between Friend node and LPN
bleLLAdvertisingChannelPDUGenerate Bluetooth LE LL advertising channel PDU
bleLLAdvertisingChannelPDUDecodeDecode Bluetooth LE LL advertising channel PDU


wirelessNetworkSimulatorWireless network simulator
bluetoothLENodeBluetooth LE node
bluetoothMeshProfileConfigBluetooth mesh profile configuration parameters
bluetoothMeshFriendshipConfigBluetooth mesh friendship configuration parameters
bleLLAdvertisingChannelPDUConfigBluetooth LE LL advertising channel PDU configuration parameters
networkTrafficOnOffOn-Off application traffic pattern generator
