rt60

Estimate decay time of room impulse response

Since R2025a

Syntax

rtsummary = rt60(rir,fs)

rtsummary = rt60(rir,fs,Name=Value)

rt60(___)

Description

rtsummary = rt60(rir,fs) returns a table describing the amount of time for the reverberation energy of the room impulse response to decay 60 dB (RT-60). The function estimates the decay time in each octave band according to the ISO-3382 standard [2][3]. The returned table also contains metrics described in ISO-3382 such as the curvature, C50 (speech clarity), C80 (music clarity), D50 (definition), and Ts (center time).

rtsummary = rt60(rir,fs,Name=Value) specifies options using one or more name-value arguments.

rt60(___) without any output arguments plots the reverberation time metrics for each octave band. You can select the octave bands in the plot to see the impulse response power and energy decay curve in each band.

Examples

Measure RT-60 from Room Impulse Response

Read in a room impulse response for the interior of a church from a file.

[rir,fs] = audioread("ChurchImpulseResponse-16-44p1-mono-5secs.wav");

Call rt60 with the impulse response to get a table containing the RT-60 metrics for each octave center frequency.

metrics = rt60(rir,fs)

metrics=6×11 table
    CenterFrequencies     EDT       T20       T30       Topt              DegreeOfNonLinearity              Curvature      C50          C80        D50         Ts
    _________________    ______    ______    ______    ______    _______________________________________    _________    ________    _________    ______    ________

           125           6.0856       NaN       NaN    6.2365    7.3997      2.438      2.438     1.7044         NaN      -6.0616      -4.8223    19.849     0.44521
           250           6.0207    6.4347    6.7053    6.4347    5.1429    0.58978     1.0775    0.58978      4.2059      -6.9081      -4.8076    16.929     0.40977
           500           5.3181    6.0276    6.0413    5.9859    3.0841    0.77807    0.49503     0.3772     0.22695      -2.9446       -2.438     33.67       0.319
          1000           4.7896    5.3202    5.5298    5.3276    5.4525    0.26611    0.89927     0.2395      3.9388     -0.66439    -0.039779    46.183     0.22816
          2000           4.0822    4.4473    4.5732    4.3312    14.253    0.64798    0.53592    0.30591      2.8315       1.6968       2.2301    59.645     0.15107
          4000           2.9998    3.3613    3.5392    3.2139    53.436     1.5334     1.6486    0.40026      5.2938       3.8169       4.4364    70.659    0.087573

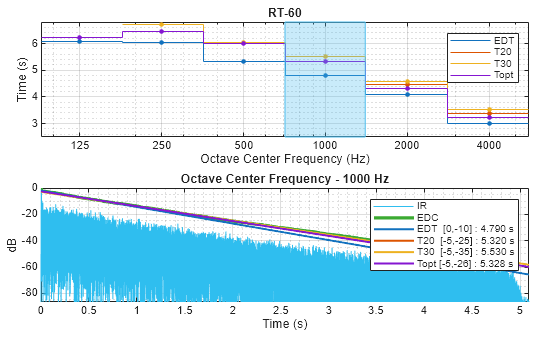

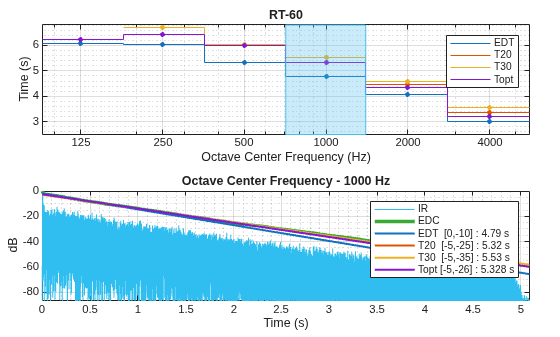

Call rt60 with no output arguments to plot the RT-60 metrics for each octave band. You can select the different octave bands to view the energy decay curve and linear fits in each band.

rt60(rir,fs)

Specify Octave Filter Bank Parameters for Computing RT-60

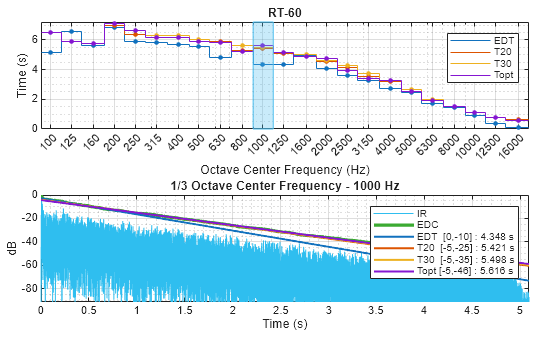

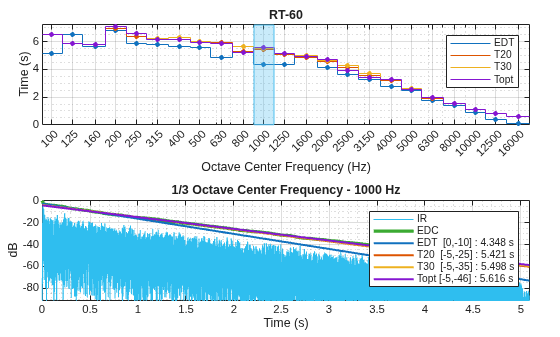

Load a room impulse response and call rt60 to compute the RT-60 metrics for one third octave bands on the range from 100 to 16,000 Hz.

[rir,fs] = audioread("ChurchImpulseResponse-16-44p1-mono-5secs.wav");
rt60(rir,fs,Bandwidth="1/3 octave",FrequencyRange=[100,16000])

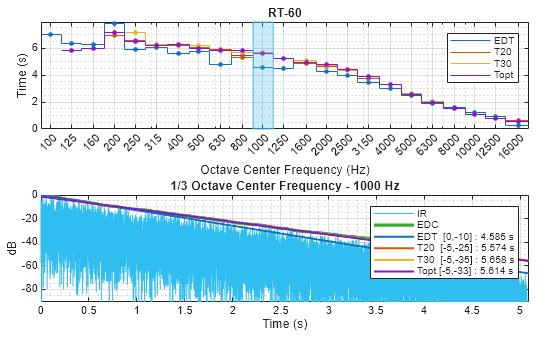

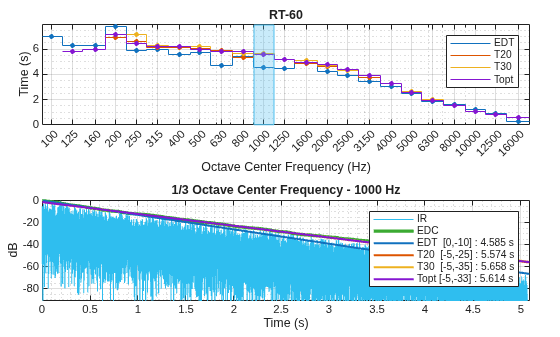

Call rt60 again on the same impulse response, this time modifying the octave filter bank parameters by using a higher filter order and filtering in the backward direction. See how the modifications affect the RT-60 metrics. The rt60 function throws a warning if the specified octave filter bank does not comply with the IEC 61260-1 standard.

rt60(rir,fs, ...
    Bandwidth="1/3 octave",FilterOrder=48, ...
    FilterDirection="backward",FrequencyRange=[100,16000])

Check Reliability of RT-60 Values for Forward Filtering

Compute the RT-60 values of a room impulse response using the default forward filtering.

[rir,fs] = audioread("ChurchImpulseResponse-16-44p1-mono-5secs.wav");
bw = "1/3 octave";
frequencyRange = [50,500];
metrics = rt60(rir,fs,Bandwidth=bw,FrequencyRange=frequencyRange);

According to ISO 3382-1:2009, section 7.3, for results to be reliable, $$BT$$ must be greater than 16, where $$B$$ is the filter bandwidth in Hz, and $$T$$ is the measured reverberation time in seconds.

To check if the results are reliable, first get the filter bandwidths. Use the octaveFilterBank getBandedgeFrequencies for a precise calculation.

bwhz = diff(getBandedgeFrequencies(octaveFilterBank(bw,FrequencyRange=frequencyRange)));

Check if the measurements are reliable.

T20_isreliable = metrics.T20 .* bwhz(:) > 16;
T30_isreliable = metrics.T30 .* bwhz(:) > 16;
Topt_isreliable = metrics.Topt .* bwhz(:) > 16;

Create a table indicating which results are reliable. See how the results are not reliable for the lower bandwidths for this room impulse response.

reliableResults = table(T20_isreliable,T30_isreliable,Topt_isreliable, ...
    VariableNames=["T20","T30","Topt"], ...
    RowNames=arrayfun(@(x)num2str(x),metrics.CenterFrequencies,UniformOutput=false))

reliableResults=10×3 table
            T20      T30     Topt
           _____    _____    _____

    50     false    false    false
    63     false    false    false
    80     false    false    true
    100    false    false    true
    125    false    false    true
    160    true     false    true
    200    true     false    true
    250    true     true     true
    315    true     true     true
    400    true     true     true

Input Arguments

rir — Room impulse response

vector

Room impulse response used to estimate the reverberation decay time of the acoustic space, specified as a vector of real numbers. Impulse responses are generally in the two to five second range and should include the noise floor in the end by continuing to capture after the reverberation tail has diminished beneath the noise floor. Measurements for larger spaces with lower noise floors, such as churches, require longer time captures.

Data Types: single | double

fs — Sample rate (Hz)

positive scalar

Sample rate of room impulse response, in Hz. The sample rate must be greater than or equal to 2000 Hz.

Data Types: single | double

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: rt60(ir,fs,Bandwidth="1/3 octave")

Bandwidth — Bandwidth of filters (octaves)

"1 octave" (default) | "1/3 octave"

Bandwidth of filters used to measure reverberation time, in octaves, specified as "1 octave" or "1/3 octave".

Data Types: char | string

FilterOrder — Order of octave filters

10 (default) | positive even integer

Order of the octave filters, specified as a positive even integer.

Data Types: single | double

FrequencyRange — Frequency range of filter bank (Hz)

two-element row vector

Frequency range of the octave filter bank in Hz, specified as a two-element row vector of increasing values in the range [20,fs/2]. The default frequency range depends on the Bandwidth. If the Bandwidth is "1 octave", the default frequency range is [125,4000]. If the Bandwidth is "1/3 octave", the default frequency range is [100,5012].

Data Types: single | double

FilterDirection — Filter direction

"forward" (default) | "zero-phase" | "backward"

Filter direction used by the octave filter bank, specified as "forward", "zero-phase", or "backward".

• "forward" — The function applies minimum-phase filters in the standard forward direction.

• "zero-phase" — The function applies zero-phase filters in the frequency domain.

• "backward" — The function applies minimum-phase filters on the time-reversed signal.

Data Types: char | string

NoiseCompensation — Noise compensation method

"truncate-correct" (default) | "subtract-truncate-correct"

Noise compensation method, specified as "truncate-correct" or "subtract-truncate-correct".

• "truncate-correct" — The function uses the Lundby algorithm to estimate the noise floor and the intersection between the reverberation tail and the noise floor. The function truncates and compensates the squared impulse response according to ISO 3382-1 [2].

• "subtract-truncate-correct" — In addition to the truncation and compensation, the function subtracts the noise floor from the squared impulse response. This method does not follow ISO 3382-1, but [4] demonstrated that this method introduced the least systematic noise of several evaluated methods.

In both methods, the function assumes the room impulse response has at least the last 10% of its duration correspond to noise.

Data Types: char | string

Output Arguments

rtsummary — Summary of RT-60 metrics

table

Summary of the RT-60 metrics specified by ISO 3382-1 and ISO 3382-2, returned as a table with the following variables:

• CenterFrequencies — Nominal center frequencies of the octave bands in Hz.

• EDT — Early decay time (EDT), in seconds. The rt60 function computes the EDT by making a linear fit of the decay curve from 0 to -10 dB and extrapolating to the 60 dB decay time.

• T20 — Reverberation time for 20 dB decay (T20), in seconds. The rt60 function computes the T20 by making a linear fit of the decay curve from -5 to -25 dB and extrapolating to the 60 dB decay time.

• T30 — Reverberation time for 30 dB decay (T30), in seconds. The rt60 function computes the T20 by making a linear fit of the decay curve from -5 to -35 dB and extrapolating to the 60 dB decay time.

• Topt — Optimal decay time, in seconds, based on the range of the decay curve that yields the best linear fit. The measurement begins at -5 dB and chooses the range which yields the best linear approximation while remaining 10 dB above the detected noise floor.

• DegreeOfNonLinearity — Degree of nonlinearity, as described in ISO 3382-2, returned as an N-by-4 matrix, where N is the number of octave bands. This value describes the correlation of the linear fit to the energy decay curve. The columns of the matrix correspond to the four decay ranges analyzed: EDT, T20, T30, and Topt. According to ISO 3382-2:2008 B.2, typical values are between 0 and 5.

• Curvature — Level of curvature, defined as 100*|T30/T20 - 1|, as defined by ISO 3382-2. According to ISO 3382-2:2008 B.3, typical values are between 0 and 5.

• C50 — Clarity metric in dB using a 50 ms cutoff, as described in ISO 3382-1. Clarity is a measure of early to late arriving sound energy. C50 is typically used to describe speech clarity.

• C80 — Clarity metric in dB using an 80 ms cutoff, as described in ISO 3382-1. C80 is typically used to describe music clarity.

• D50 — Definition metric using a 50 ms cutoff, as described in ISO 3382-1. Definition is a measure of the early to total sound energy.

• TS — Center time in seconds, as described in ISO 3382-1. Center time is the center of gravity of the squared impulse response. Center time avoids discrete division of the impulse response into early and late periods.

For the EDT, T20, T30, and Topt metrics, if the detected noise floor does not allow 10 dB of headroom over the range, the measurement is invalid and returned as NaN.

References

[1] IEC 61260-1:2014. "Electroacoustics — Octave-band and fractional-octave-band filters — Part 1: Specifications." International Electrotechnical Commission.

[2] ISO 3382-1:2009. "Acoustics — Measurement of room acoustic parameters — Part 1: Performance spaces." International Organization for Standardization.

[3] ISO 3382-2:2008. "Acoustics — Measurement of room acoustic parameters — Part 2: Reverberation time in ordinary rooms." International Organization for Standardization.

[4] Guski, Martin. Influences of External Error Sources on Measurements of Room Acoustic Parameters. Aachener Beiträge Zur Technischen Akustik, Band 24. Berlin: Logos Verlag Berlin GmbH, 2015.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced in R2025a
