array

Create array of PCB stack objects

Since R2021a

Syntax

pcbArr = array(pcbObj,arrayType)

pcbArr = array(___,Name=Value)

Description

pcbArr = array(pcbObj,arrayType) creates a default arrayType array configuration of the specified pcbObj PCB antenna.

pcbArr = array(___,Name=Value) sets the properties of the array using one or more Name-Value Arguments arguments.

Examples

Create Linear Array of Circular Patch Microstrip Antenna

Create a PCB antenna from a circular microstrip patch antenna using the pcbStack object.

ant = patchMicrostripCircular(Substrate=dielectric("FR4"));
pcbAnt = pcbStack(ant);
show(pcbAnt)

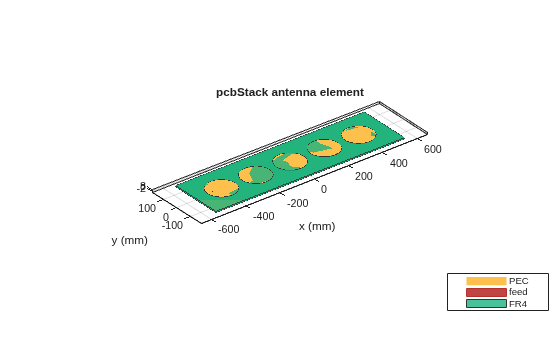

Create a linear array of the antenna using the array function.

pcbArr = array(pcbAnt,"linear",NumElements=5,ElementSpacing=0.2);
show(pcbArr)

Create Rectangular Array of PCB Antenna

Create a PCB antenna using pcbStack object.

pcbAnt = pcbStack

pcbAnt =
  pcbStack with properties:

              Name: 'MyPCB'
          Revision: 'v1.0'
        BoardShape: [1x1 antenna.Rectangle]
    BoardThickness: 0.0100
            Layers: {[1x1 antenna.Rectangle]  [1x1 antenna.Rectangle]}
     FeedLocations: [-0.0187 0 1 2]
      FeedDiameter: 1.0000e-03
      ViaLocations: []
       ViaDiameter: []
      FeedViaModel: 'strip'
       FeedVoltage: 1
         FeedPhase: 0
         Conductor: [1x1 metal]
              Tilt: 0
          TiltAxis: [1 0 0]
              Load: [1x1 lumpedElement]

pcbAnt.Layers{1} = pcbAnt.Layers{1} - antenna.Rectangle(Length=7e-3,Width=7e-3);
pcbAnt.Layers{1} = pcbAnt.Layers{1} - antenna.Circle(Radius=5e-3,Center=[20e-3,0]);
d = dielectric("FR4");
d.Thickness = pcbAnt.BoardThickness;
pcbAnt.Layers{2} = d;
pcbAnt.Layers{3} = antenna.Rectangle(Length=0.15,Width=0.075);
pcbAnt.FeedLocations(end) = 3;
show(pcbAnt)

Create a 4-by-4 rectangular array of PCB antennas.

pcbArr = array(pcbAnt,"rectangular",Size=[4 4],ColumnSpacing=0.1,RowSpacing=0.2);
show(pcbArr)

Create Circular Array of Triangular Patch Microstrip Antenna

Create a PCB antenna from a triangular patch microstrip antenna using the pcbStack object.

ant = patchMicrostripTriangular(Substrate=dielectric("FR4"));
pcbAnt = pcbStack(ant);

Create a circular array of the PCB antenna.

pcbArr = array(pcbAnt,"circular",Radius=0.03);
show(pcbArr)

Input Arguments

pcbObj — PCB antenna

pcbStack object

PCB antenna, specified as a pcbStack object.

Example: pcbStack

arrayType — Type of array

"linear" | "rectangular" | "circular"

Type of array configuration, specified as a string. The array configuration can be:

• linear - Creates a default 2 element linear array with a spacing of 2 meters between the elements.

• rectangular - Creates a default 2-by-2 rectangular array with row and column spacing of 2 meters each.

• circular - Creates a default six element circular array with a radius of 1 meter and an offset angle of 0 degrees.

Example: "linear"

Data Types: string

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: NumElements=4

Before R2021a, use commas to separate each name and value, and enclose Name in quotes.

Example: 'NumElements',4

Linear Array

NumElements — Number of antenna elements in array

2 (default) | positive integer

Number of the antenna elements in the array, specified as a positive integer.

Example: 4

ElementSpacing — Spacing between antenna elements

2 (default) | positive scalar | positive vector

Spacing between the antenna elements, specified as a positive scalar or positive vector in meters. By default, the elements are spaced 2 meters apart. Use scalar for uniform and vector for non-uniform spacing between the antenna elements.

Example: 3

Example: [3 2]

Data Types: double

Rectangular Array

Size — Number of antenna elements in row and column of array

[2 2] (default) | two-element vector

Number of the antenna elements in the row and column of the array, specified as a two-element vector.

Example: [4 4]

RowSpacing — Row spacing between two antenna elements

2 (default) | positive scalar | positive vector

Row spacing between the two antenna elements, specified as a scalar or vector in meters. By default, the antenna elements are spaced 2 meters apart. Use scalar for uniform and vector for non uniform spacing between the antenna elements.

Example: 0.1

Example: [2 1]

Data Types: double

ColumnSpacing — Column spacing between two antenna elements

2 (default) | positive scalar | positive vector

Column spacing between the two antenna elements, specified as a positive scalar or positive vector in meters. By default, the antenna elements are spaced 2 meters apart. Use scalar for uniform and vector for non uniform spacing between the antenna elements.

Example: 0.1

Example: [2 1]

Data Types: double

Circular Array

NumElements — Number of elements in array

6 (default) | positive integer

Number of elements in the array, specified as a positive integer. The elements in the array are arranged along the X-axis.

Example: 4

Data Types: double

Radius — Radius of array

1 (default) | positive scalar

Radius of the array, specified as a positive scalar in meters.

Example: 0.4

Data Types: double

AngleOffset — Offset angle for first element in array

0 (default) | real scalar

Offset angle for the first element in the array, specified as a real scalar in degrees.

Example: 8

Data Types: double

Output Arguments

pcbArr — Array of PCB antenna elements

pcbStack object

Array of the PCB antenna elements, returned as a pcbStack object.

Version History

Introduced in R2021a
