propagateOrbit

Calculate position and velocity of spacecraft

Since R2024b

Syntax

``[positions,velocities] = propagateOrbit(time,gpStruct)``
``[positions,velocities] = propagateOrbit(time,a,ecc,incl,RAAN,argp,nu)``
``[positions,velocities] = propagateOrbit(time,rEpoch,vEpoch)``
``[positions,velocities] = propagateOrbit(___,Name=Value)``

Description

````[positions,velocities] = propagateOrbit(time,gpStruct)` calculates the positions and velocities in the International Celestial Reference Frame (ICRF) corresponding to the time specified by `time` using the two-line-element (TLE) or orbit mean-elements message (OMM) data.`[positions,velocities] = propagateOrbit(time,a,ecc,incl,RAAN,argp,nu)` calculates the positions and velocities using specified orbital elements to define epoch states. The function assumes that the epoch is the first element in the `time` argument.`[positions,velocities] = propagateOrbit(time,rEpoch,vEpoch)` calculates the positions and velocities at the epoch defined by `rEpoch` and `vEpoch`. The function assumes that the epoch is the first element in the `time` argument.`[positions,velocities] = propagateOrbit(___,Name=Value)` calculates the positions and velocities using additional parameters specified by one or more name-value arguments.```

example

Examples

collapse all

Read the data from the TLE (Two-Line Element) file named '`leoSatelliteConstellation.tle`'. Calculate the position and velocity based on the TLE structure, '`tleStruct'`. This file is located on the MATLAB® path and is provided with the Aerospace Toolbox.

`tleStruct = tleread('leoSatelliteConstellation.tle')`
```tleStruct=40×1 struct array with fields: Name SatelliteCatalogNumber Epoch BStar RightAscensionOfAscendingNode Eccentricity Inclination ArgumentOfPeriapsis MeanAnomaly MeanMotion ```

Calculate the position and velocity corresponding to the input time using the TLE data defined in `tleStruct`.

`[r,v] = propagateOrbit(datetime(2022, 1, 3, 12, 0, 0),tleStruct);`

This examples shows how to simulate a lunar free-return trajectory using numerical propagator. Define trajectory start and end times.

```startTime = datetime(2022,11,17,14,40,0); endTime = datetime(2022,11,24,12,45,0);```

Construct datetime vector representing the trajectory time stamps spaced at 60 second intervals.

```sampleTime = 60; % s time = startTime:seconds(sampleTime):endTime;```

Define the initial position and velocity of the spacecraft in ICRF. These represent the spacecraft states immediately after the translunar injection burn.

```initialPosition = [5927630.386747557; ... 3087663.891097251; ... 1174446.969646237]; initialVelocity = [-5190.330300215130; ... 8212.486957313564; ... 4605.538019512981]; ```

Define the options for numerical orbit propagation. Configure the ordinary differential equation (ODE) solver options, gravitational potential model and the third body gravity. Include third body gravity from all supported solar system bodies. Note that the numerical propagator also supports inclusion of perturbations due to drag from Earth atmosphere and solar radiation pressure. However, these effects are ignored in this example.

```numericalPropOpts = Aero.spacecraft.NumericalPropagatorOptions( ... ODESet=odeset(RelTol=1e-8,AbsTol=1e-8,MaxStep=300), ... IncludeThirdBodyGravity=true, ... ThirdBodyGravitySource=[ ... "Sun" ... "Mercury" ... "Venus" ... "Moon" ... "Mars" ... "Jupiter" ... "Saturn" ... "Uranus" ... "Neptune" ... "Pluto"], ... GravitationalPotentialModel="point-mass")```
```numericalPropOpts = NumericalPropagatorOptions with properties: ODESolver: "ode45" ODESet: [1x1 struct] GravitationalPotentialModel: "point-mass" IncludeAtmosDrag: 0 IncludeThirdBodyGravity: 1 ThirdBodyGravitySource: ["Sun" "Mercury" "Venus" "Moon" "Mars" "Jupiter" "Saturn" "Uranus" "Neptune" "Pluto"] IncludeSRP: 0 PlanetaryEphemerisModel: "de405" ```

Define the physical properties (mass, reflectivity coefficient and solar radiation pressure area) of the spacecraft.

```physicalProps = Aero.spacecraft.PhysicalProperties( ... Mass=10000, ... ReflectivityCoefficient=0.3, ... SRPArea=2)```
```physicalProps = PhysicalProperties with properties: Mass: 10000 DragCoefficient: 2.1790 DragArea: 1 ReflectivityCoefficient: 0.3000 SRPArea: 2 ```

Propagate the spacecraft trajectory. While PropModle name-value argument defaults to "numerical" if you explicitly specify NumericalPropagatorOptions or PhysicalProperties name-value argument, PropModel has been explicitly specified for illustrative purposes.

```position = propagateOrbit( ... time, ... initialPosition, ... initialVelocity, ... PropModel="numerical", ... NumericalPropagatorOptions=numericalPropOpts, ... PhysicalProperties=physicalProps); ```

Convert the position history to timetable.

` positionTT = timetable(time',position');`

Visualize the trajectory on a satellite scenario viewer. To do this, create a satellite scenario object.

`sc = satelliteScenario(startTime,endTime,sampleTime);`

Add the spacecraft to the scenario using the satellite function and the position timetable.

`spacecraft = satellite(sc,positionTT,Name="Spacecraft");`

The satellite scenario viewer used for visualizing the scenario already renders visualization for the moon. However, you can gain better situational awareness if the lunar orbit is plotted as well. To do this, add a satellite to the scenario using the satellite function that is on the same trajectory as that of the Moon. To calculate the trajectory of the Moon, start by computing the barycentric dynamical times (TDB) for the simulation time samples as Julian dates.

```leapSeconds = 37; ttMinusTAI = 32.184; terrestrialTime = time + seconds(leapSeconds + ttMinusTAI); tdbJD = tdbjuliandate([ ... terrestrialTime.Year' ... terrestrialTime.Month' ... terrestrialTime.Day' ... terrestrialTime.Hour' ... terrestrialTime.Minute' ... terrestrialTime.Second']); ```

Calculate the positions of the Moon for each scenario time sample using planetEphemeris and convert the positions into a timetable.

```pMoonkm = planetEphemeris(tdbJD,"earth","moon"); % km pMoon = convlength(pMoonkm,'km','m'); % m pMoonTT = timetable(time',pMoon);```

Add a satellite representing the Moon to the scenario using the satellite function. Set the orbit and marker color to red.

```moon = satellite(sc,pMoonTT,Name="Moon"); moon.Orbit.LineColor="red"; moon.MarkerColor="red";```

The scale of the distance involved in the scenario is large enough that the Earth may not be readily visible when viewing from the shadow side. To mitigate this, add a ground station at the North pole of the Earth and label it "Earth". Set the marker size of this ground station to 0.001. This way, the label "Earth" will always be visible near the position of the Earth.

```earth = groundStation(sc, ... 90, ... % Latitude, deg 0, ... % Longitude, deg Name="Earth"); earth.MarkerSize = 0.001; ```

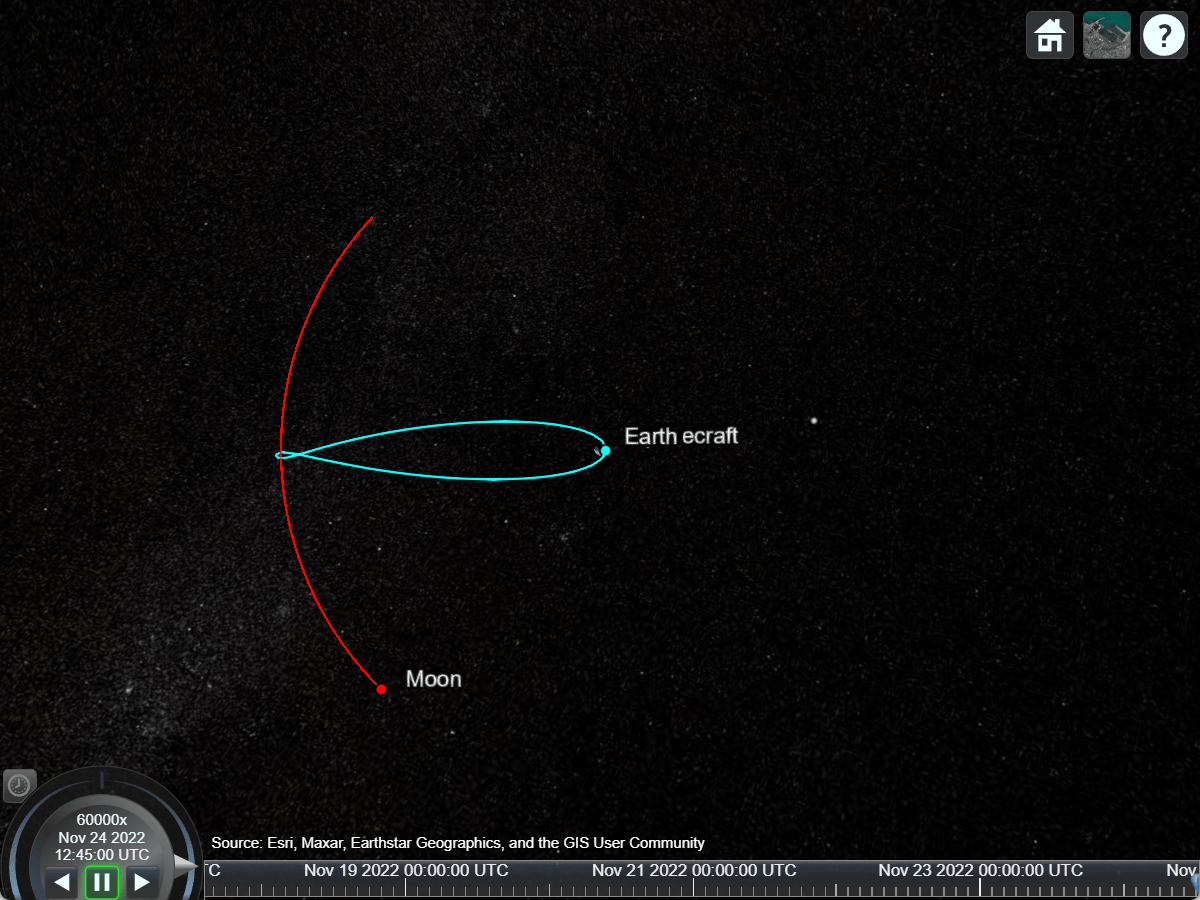

Run satelliteScenarioViewer to launch a satellite scenario viewer. Set the playback speed multiplier to 60,000. Set the camera reference frame to "inertial".

```v = satelliteScenarioViewer(sc, ... CameraReferenceFrame="Inertial", ... PlaybackSpeedMultiplier=60000); ```

Set the camera position and orientation to visualize the free-return trajectory from a top-down view.

```campos(v, ... 55.991361, ... 18.826434, ... 1163851259.541816); camheading(v, ... 359.7544952991605); campitch(v, ... -89.830968253450209); camroll(v, ... 0); ```

Play the scenario.

`play(sc);`

Input Arguments

collapse all

Julian dates or `datetime` objects, specified as a 1-by-m vector or m-by-1 vector of doubles or `datetime` objects. `time` must be strictly increasing.

When you specify a `datetime` object whose `TimeZone` property is empty, the `propagateOrbit` function assumes that the `datetime` object time zone is UTC.

Example: `datetime(2023,6,16)`

Example: `juliandate(2023,6,16)`

Data Types: `double` | `datetime`

Semimajor axes, specified as a numSc-element vector or a scalar, in meters. If all spacecraft have the same semimajor axis, you can specify `a` as a scalar. numSc is the number of spacecraft.

Example: `10000000`

Example: `[8000000 10000000]`

Dependencies

If any element of `a` is negative, the corresponding element in `ecc` must be greater than or equal to 1. The only supported `PropModel` in this instance is "numerical".

Data Types: `double`

Orbit eccentricity, which is the deviation of the orbital curve from circular, specified as a numSc-element vector or scalar. If all spacecraft have the same eccentricity, you can specify `ecc` as a scalar. numSc is the number of spacecraft.

Example: `0.1`

Example: `[0.1 0.2]`

Dependencies

If any element of `ecc` is greater than or equal to 1, the corresponding element in `a` must be negative. The only supported `PropModel` in this instance is `numerical`.

Inclination, which is the vertical tilt of the orbit with respect to the ICRF xy plane measured at the ascending node, specified as a numSc-element vector or a scalar in degrees. numSc is the number of spacecraft.

Example: `10`

Example: `[20 30]`

Right ascension of ascending node (RAAN), specified as a numSc-element vector or a scalar, in degrees. If all spacecraft have the same right ascension of ascending node, you can specify `RAAN` as a scalar. numSc is the number of spacecraft.

Example: `10`

Example: `[20 30]`

Argument of periapsis, which is the angle from the orbit ascending node to periapsis (closest point of orbit to the central body), specified as a numSc-element vector or a scalar in degrees. If all spacecraft have the same argument of periapsis, you can specify `RAAN` as a scalar. numSc is the number of spacecraft.

Example: `10`

Example: `[20 30]`, if there are two spacecraft

True anomaly, which is the angle between periapsis and the initial position of the spacecraft, specified as a numSc-element vector or a scalar. If all spacecraft have the same true anomaly, you can specify `nu` as a scalar. numSc is the number of spacecraft.

Example: `10`

Example: `[20 30]`

Position at epoch, specified as a 3-by-1 vector or 3-by-numSc matrix. If all spacecraft have the same initial position at epoch, you can specify `rEpoch` as a 3-by-1 vector. numSc is the number of spacecraft.

Example: `[10000000;1000;2000]`

Example: `[10000000 12000000;1000 2000;2000 4000]`

Dependencies

`rEpoch` and the corresponding `vEpoch` vectors cannot be parallel when `PropModel` is set to `'sgp4'`, `'sdp4'`, `'general-perturbations'` or `'two-body-keplerian'`.

Velocity at epoch, specified as a 3-by-1 vector or 3-by-numSc matrix. If all spacecraft have the same initial velocity at epoch, you can specify `vEpoch` as a 3-by-1 vector. numSc is the number of spacecraft.

Example: `[0;8000;0]`

Example: `[0 100;8000 9000;200 300]`

Dependencies

`vEpoch` and the corresponding `rEpoch` vectors cannot be parallel when `PropModel` is set to `'sgp4'`, `'sdp4'`, `'general-perturbations'` or `'two-body-keplerian'`.

General perturbations structures representing TLE or OMM data, specified as a numSc-element vector. numSc is the number of spacecraft. To create the TLE or OMM data structure, consider using `tleread` or `ommread` respectively. For more information on TLE and OMM file structures, see Two Line Element (TLE) Files.

Example: `tleread("leoSatelliteConstellation.tle")`

Data Types: `struct`

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Before R2021a, use commas to separate each name and value, and enclose `Name` in quotes.

Example: `PropModel="two-body-keplerian"` specifies `two-body-keplerian` as the propagation method.

Epoch, specified as a scalar `datetime`object. The data type of `'Epoch'` is double.

When you specify a `datetime` object whose `TimeZone` property is empty, the `propagateOrbit` function assumes that the `datetime` object time zone is UTC.

Example: `datetime(2023,6,19)`

Default value

• Epoch defined in `gpStruct` when using `gpStruct` input and `PropModel` is set to `'sgp4'`, `'sdp4'` or `'general-perturbations'`.

• First element of time input in all other cases.

Dependencies

When you specify the epoch states using `gpStruct`, do not specify this name-value argument.

Data Types: `double`

Options used by the numerical orbit propagator, specified as a scalar `Aero.spacecraft.NumericalPropagatorOptions` object.

Default Value

The default value is the object returned when calling the `Aero.spacecraft.NumericalPropagatorOptions` object without any inputs.

Dependencies

If you specify `PropModel` to `'sgp4'`, `'sdp4'`, `'general-perturbations'` or `'two-body-keplerian'`, do not specify this name-value argument.

Physical properties of spacecraft used by the numerical orbit propagator, specified as a scalar or array of `Aero.spacecraft.PhysicalProperties` objects. If all spacecraft use the same physical properties, you can specify `'PhysicalProperties'` as a scalar.

Default Value

The default value is the object returned when calling the `Aero.spacecraft.PhysicalProperties` object without any inputs.

Dependencies

If you specify `PropModel` to `'sgp4'`, `'sdp4'`, `'general-perturbations'` or `'two-body-keplerian'`, do not specify this name-value argument.

Orbital state propagation method, specified as one of these values:

• `"general-perturbations"``"sgp4"` or `"sdp4"`, depending on orbital period. When the orbital period corresponding to the epoch states is less than 225 minutes, the propagation model is `"sgp4"`. Otherwise, it is `"sdp4"`.

• `"two-body-keplerian"` — Two-body Keplerian orbit propagator.

• `"sgp4"` — Simplified General Perturbations-4 orbit propagator.

• `"sdp4"` — Simplified Deep-Space Perturbations-4 orbit propagator.

• `"numerical"` — Numerical propagation model.

Example: `PropModel = "two-body-keplerian"`

Default Value

When the epoch states are specified using one of the orbital elements such as `a`, `ecc`, `incl`, `RAAN`, `argp` and `nu` or position or velocity states such as `rEpoch` or `vEpoch`, the default value is `"general-perturbations"` if the orbital energy corresponding to every epoch state is negative. Otherwise, the default value is `"numerical"`. To calculate the orbital energy, the epoch % states are converted to inertial position and velocity vectors `r_eci` and `v_eci`. Assuming μ is the standard gravitational parameter of Earth, the orbital energy is $E=\frac{|{v}_{eci}{|}^{2}}{2}-\frac{\mu }{|{r}_{eci}|}$

Data Types: `char` | `string`

Aerodynamic drag term, specified as a numSc-element vector or scalar. If all spacecraft use the same `Bstar` value, you can specify this argument as a scalar. numSc is the number of spacecraft.

Example: `BStar = 0`

Example: `BStar = [0.0001 0.0002]`, if there are two spacecraft

Dependencies

`propagateOrbit` uses this value when:

Data Types: `double`

Input coordinate frame of `rEpoch` and `vEpoch`, specified as one of these values:

• `"icrf"``rEpoch` and `vEpoch` are defined in the ICRF in m and m/s, respectively.

• `"fixed-frame"``rEpoch` and `vEpoch` are defined as the Earth-centered Earth-fixed (ECEF) frame in m and m/s, respectively.

• `"geographic"``rEpoch` is defined as latitude (deg), longitude (deg), and altitude (m). `vEpoch` is defined in the fixed-frame velocity in m/s represented in the north-east-down (NED) frame defined by `rEpoch`.

Example: `InputCoordinateFrame="fixed-frame"`

Data Types: `char` | `string`

Output coordinate frame of output `positions` and `velocities`, specified as one of these values:

• `"icrf"``positions` and `velocities` are defined in the ICRF in m and m/s respectively.

• `"fixed-frame"``positions` and `velocities` are defined in the Earth-centered Earth-fixed (ECEF) frame in m and m/s respectively.

• `"geographic"``positions` is defined as latitude (deg), longitude (deg), and altitude (m).. `velocities` is defined as the fixed-frame velocity in m/s represented in the north-east-down (NED) frame defined by positions.

Example: `OutputCoordinateFrame = "geographic"`

Data Types: `char` | `string`

Output Arguments

collapse all

Positions, returned as a 3-by-m-by-numSc array. m is the number of time samples. numSc is the number of spacecraft.

Velocities, returned as a 3-by-m-by-numSc array. m is the number of time samples. numSc is the number of spacecraft.

References

[1] Hoots, Felix R., and Ronald L. Roehrich. . Aerospace Defense Command, Peterson AFB CO Office of Astrodynamics, 1980.

[2] Vallado, David, et al. “Revisiting Spacetrack Report #3.” AIAA/AAS Astrodynamics Specialist Conference and Exhibit, American Institute of Aeronautics and Astronautics, 2006. , https://doi.org/10.2514/6.2006-6753.

Version History

Introduced in R2024b
