5G NR PRACH Detection Test

This example shows how to model the physical random access channel (PRACH) missed detection conformance test, as defined in TS 38.141-1 [ 1 ]. You can learn how to measure the probability of correct detection of the PRACH preamble in the presence of a preamble signal.


The PRACH is an uplink transmission used by User Equipment (UE) to initiate synchronization with the gNodeB. TS 38.141-1 Section defines the probability of PRACH detection to be greater than or equal to 99% at specific SNR values for a set of PRACH configurations and propagation conditions. There are several detection error cases:

  • Detecting an incorrect preamble

  • Not detecting a preamble

  • Detecting the correct preamble but with the wrong timing estimation

TS 38.141-1 states that a correct detection is achieved when the estimation error of the timing offset of the strongest path is less than the time error tolerance given in Table For channel propagation conditions TDLC300-100 and PRACH preamble format 0, the time error tolerance is 2.55 microseconds.

In this example, a PRACH waveform is configured and passed through an appropriate channel. At the receiver side, the example performs PRACH detection and calculates the PRACH detection probability. The example considers the parameters defined in TS 38.141-1 Table and Table A.6-1. These are: normal mode (i.e., unrestricted set), 2 receive antennas, TDLC300-100 channel, normal cyclic prefix, burst format 0, SNR -6.0 dB. If you change the PRACH configuration to use one of the other PRACH preamble formats listed in Table A.6-1, you need to update the values of the time error tolerance and the SNR, according to TS 38.141-1 Table and Tables to, respectively.

Simulation Configuration

The example considers 10 subframes at a number of SNRs. You should use a large number of numSubframes to produce meaningful results. You can set SNRdB as an array of values or a scalar. For an explanation of the SNR definition that this example uses, see SNR Definition Used in Link Simulations. Table in TS 38.141-1 specifies the frequency offset foffset that is modeled between transmitter and receiver.

numSubframes = 10;               % Number of 1 ms subframes to simulate at each SNR
SNRdB = [-21, -16, -11, -6, -1]; % SNR range in dB
foffset = 400.0;                 % Frequency offset in Hz
timeErrorTolerance = 2.55;       % Time error tolerance in microseconds

Carrier Configuration

Use the nrCarrierConfig configuration object carrier to specify the carrier settings. The example considers a carrier characterized by a subcarrier spacing of 15 kHz and a bandwidth of 5 MHz. That is, the carrier spans 25 resource blocks, according to Table 5.3.2-1 in TS 38.104 [ 2 ].

carrier = nrCarrierConfig;
carrier.SubcarrierSpacing = 15;
carrier.NSizeGrid = 25;

PRACH Configuration

Table A.6-1 in TS 38.141-1 specifies the PRACH configurations to use for the PRACH detection conformance test.

Set the PRACH configuration by using the nrPRACHConfig configuration object prach, according to Table A.6-1 and Section in TS 38.141-1.

% Set PRACH configuration
prach = nrPRACHConfig;
prach.FrequencyRange = 'FR1';                    % Frequency range
prach.DuplexMode = 'FDD';                        % Frequency Division Duplexing (FDD)
prach.ConfigurationIndex = 27;                   % Configuration index for format 0
prach.SubcarrierSpacing = 1.25;                  % Subcarrier spacing
prach.SequenceIndex = 22;                        % Logical sequence index
prach.PreambleIndex = 32;                        % Preamble index
prach.RestrictedSet = 'UnrestrictedSet';         % Normal mode
prach.FrequencyStart = 0;                        % Frequency location

% Define the value of ZeroCorrelationZone using the NCS table stored in
% the nrPRACHConfig object
switch prach.Format
    case {'0','1','2'}
        ncsTable = nrPRACHConfig.Tables.NCSFormat012;
        ncsTableCol = (string(ncsTable.Properties.VariableNames) == prach.RestrictedSet);
    case '3'
        ncsTable = nrPRACHConfig.Tables.NCSFormat3;
        ncsTableCol = (string(ncsTable.Properties.VariableNames) == prach.RestrictedSet);
        ncsTable = nrPRACHConfig.Tables.NCSFormatABC;
        ncsTableCol = contains(string(ncsTable.Properties.VariableNames), num2str(prach.LRA));
NCS = 13;
zeroCorrelationZone = ncsTable.ZeroCorrelationZone(ncsTable{:,ncsTableCol}==NCS);
prach.ZeroCorrelationZone = zeroCorrelationZone; % Cyclic shift index

% Compute the OFDM-related information for this PRACH configuration
windowing = [];
ofdmInfo = nrPRACHOFDMInfo(carrier,prach,'Windowing',windowing);

Propagation Channel Configuration

Use the nrTDLChannel object to configure the tapped delay line (TDL) propagation channel model channel as described in TS 38.141-1 Table

channel = nrTDLChannel;
channel.DelayProfile = "TDL-C";             % Delay profile
channel.DelaySpread = 300e-9;               % Delay spread in seconds
channel.MaximumDopplerShift = 100.0;        % Maximum Doppler shift in Hz
channel.SampleRate = ofdmInfo.SampleRate;   % Input signal sample rate in Hz
channel.MIMOCorrelation = "Low";            % MIMO correlation
channel.TransmissionDirection = "Uplink";   % Uplink transmission
channel.NumTransmitAntennas = 1;            % Number of transmit antennas
channel.NumReceiveAntennas = 2;             % Number of receive antennas
channel.NormalizePathGains = true;          % Normalize delay profile power
channel.Seed = 42;                          % Channel seed. Change this for different channel realizations
channel.NormalizeChannelOutputs = true;     % Normalize for receive antennas

Loop for SNR Values

Use a loop to run the simulation for the set of SNR points given by the vector SNRdB. The SNR vector configured here is a range of SNR points including a point at -6.0 dB, the SNR at which the test requirement for PRACH detection rate (99%) is to be achieved for preamble format 0, as discussed in Table in TS 38.141-1.

hNRPRACHWaveformGenerator generates an output signal normalized to the same transmit power as for an uplink data transmission within the 5G Toolbox™. Therefore, the same normalization must take place on the noise added to the PRACH. The noise added before OFDM demodulation will be amplified by the IFFT by a factor equal to the square root of the size of the IFFT ($N_{FFT}$). To ensure that the power of the noise added is normalized after demodulation, and thus to achieve the desired SNR, the desired noise power is divided by $N_{FFT}$. In addition, as real and imaginary parts of the noise are created separately before being combined into complex additive white Gaussian noise, the noise amplitude is scaled by $1/\sqrt2$ so the generated noise power is 1.

At each SNR test point, calculate the probability detection on a subframe by subframe basis using these steps:

  • PRACH Transmission: Use hNRPRACHWaveformGenerator to generate a PRACH waveform. Send the PRACH preambles with the timing offsets defined in TS 38.141-1 Figure Set a timing offset base value to 50% of the number of cyclic shifts for PRACH generation. This offset is increased for each preamble, adding a step value of 0.1 microseconds, until the end of the tested range, which is 0.9 microseconds for PRACH preamble format 0. This pattern then repeats.

  • Noisy Channel Modeling: Pass the waveform through a TDL channel and add additive white Gaussian noise. Add additional samples to the end of the waveform to cover the range of delays expected from the channel modeling (a combination of implementation delay and channel delay spread). This implementation delay is then removed to ensure the implementation delay is interpreted as an actual timing offset in the preamble detector.

  • Application of Frequency Offset: Apply the frequency offset to the received waveform as defined by the specification.

  • PRACH Detection: Perform PRACH detection using hPRACHDetect for all cell preamble indices (0-63). Use the detected PRACH index and offset returned by hPRACHDetect to determine where a detection was successful according to the constraints discussed in the Introduction section.

% Initialize variables storing probability of detection at each SNR
pDetection = zeros(size(SNRdB));

% Get the maximum number of delayed samples by a channel multipath
% component. This is calculated from the channel path with the largest
% delay and the implementation delay of the channel filter. The example
% requires this to flush the channel filter to obtain the received signal.
channelInfo = info(channel);
maxChDelay = ceil(max(channelInfo.PathDelays*channel.SampleRate)) + channelInfo.ChannelFilterDelay;

% Total number of PRACH slots in the simulation period
numPRACHSlots = floor(numSubframes / prach.SubframesPerPRACHSlot);

% Store the configuration parameters needed to generate the PRACH waveform
waveconfig.NumSubframes = prach.SubframesPerPRACHSlot;
waveconfig.Windowing = windowing;
waveconfig.Carriers = carrier;
waveconfig.PRACH.Config = prach;

% The temporary variables 'prach_init', 'waveconfig_init', 'ofdmInfo_init',
% and 'channelInfo_init' are used to create the temporary variables
% 'prach', 'waveconfig', 'ofdmInfo', and 'channelInfo' within the SNR loop
% to create independent instances in case of parallel simulation
prach_init = prach;
waveconfig_init = waveconfig;
ofdmInfo_init = ofdmInfo;
channelInfo_init = channelInfo;

for snrIdx = 1:numel(SNRdB) % comment out for parallel computing
% parfor snrIdx = 1:numel(SNRdB) % uncomment for parallel computing
% To reduce the total simulation time, you can execute this loop in
% parallel by using the Parallel Computing Toolbox. Comment out the 'for'
% statement and uncomment the 'parfor' statement. If the Parallel Computing
% Toolbox(TM) is not installed, 'parfor' defaults to normal 'for' statement

    % Set the random number generator settings to default values

    % Initialize variables for this SNR point, required for initialization
    % of variables when using the Parallel Computing Toolbox
    prach = prach_init;
    waveconfig = waveconfig_init;
    ofdmInfo = ofdmInfo_init;
    channelInfo = channelInfo_init;

    % Reset the channel so that each SNR point will experience the same
    % channel realization

    % Normalize noise power to account for the sampling rate, which is a
    % function of the IFFT size used in OFDM modulation. The SNR is defined
    % per carrier resource element for each receive antenna.
    SNR = 10^(SNRdB(snrIdx)/10);
    carrierOFDMInfo = nrOFDMInfo(carrier);
    N0 = 1/sqrt(2.0*channel.NumReceiveAntennas*double(carrierOFDMInfo.Nfft)*SNR);

    % Detected preamble count
    detectedCount = 0;

    % Loop for each PRACH slot
    numActivePRACHSlots = 0;
    for nSlot = 0:numPRACHSlots-1

        prach.NPRACHSlot = nSlot;

        % Generate PRACH waveform for the current slot
        waveconfig.PRACH.Config.NPRACHSlot = nSlot;
        [waveform,~,winfo] = hNRPRACHWaveformGenerator(waveconfig);

        % Skip this slot if the PRACH is inactive
        if (isempty(winfo.WaveformResources.PRACH))

        numActivePRACHSlots = numActivePRACHSlots + 1;

        % Set PRACH timing offset in microseconds as per TS 38.141-1 Figure
        % and Figure
        if prach.LRA==839 % Long preamble, values as in Figure
            baseOffset = ((winfo.WaveformResources.PRACH.Resources.PRACHSymbolsInfo.NumCyclicShifts/2)/prach.LRA)/prach.SubcarrierSpacing*1e3; % (microseconds)
            timingOffset = baseOffset + mod(nSlot,10)/10; % (microseconds)
        else % Short preamble, values as in Figure
            baseOffset = 0; % (microseconds)
            timingOffset = baseOffset + mod(nSlot,9)/10; % (microseconds)
        sampleDelay = fix(timingOffset / 1e6 * ofdmInfo.SampleRate);

        % Generate transmit waveform
        txwave = [zeros(sampleDelay,1); waveform(1:(end-sampleDelay))];

        % Pass data through channel model. Append zeros at the end of the
        % transmitted waveform to flush channel content. These zeros take
        % into account any delay introduced in the channel. This is a mix
        % of multipath delay and implementation delay. This value may
        % change depending on the sampling rate, delay profile and delay
        % spread
        rxwave = channel([txwave; zeros(maxChDelay, size(txwave,2))]);

        % Add noise
        noise = N0*complex(randn(size(rxwave)), randn(size(rxwave)));
        rxwave = rxwave + noise;

        % Remove the implementation delay of the channel modeling
        rxwave = rxwave((channelInfo.ChannelFilterDelay + 1):end, :);

        % Apply frequency offset
        t = ((0:size(rxwave, 1)-1)/channel.SampleRate).';
        rxwave = rxwave .* repmat(exp(1i*2*pi*foffset*t), 1, size(rxwave, 2));

        % PRACH detection for all cell preamble indices
        [detected, offsets] = hPRACHDetect(carrier, prach, rxwave, (0:63).');

        % Test for preamble detection
        if (length(detected)==1)

            % Test for correct preamble detection
            if (detected==prach.PreambleIndex)

                % Calculate timing estimation error
                trueOffset = timingOffset/1e6; % (s)
                measuredOffset = offsets(1)/channel.SampleRate;
                timingerror = abs(measuredOffset-trueOffset);

                % Test for acceptable timing error
                if (timingerror<=timeErrorTolerance/1e6)
                    detectedCount = detectedCount + 1; % Detected preamble
                    disp('Timing error');
                disp('Detected incorrect preamble');
            disp('Detected multiple or zero preambles');

    end % of nSlot loop

    % Compute final detection probability for this SNR
    pDetection(snrIdx) = detectedCount/numActivePRACHSlots;

end % of SNR loop
Detected multiple or zero preambles
Detected multiple or zero preambles
Detected multiple or zero preambles
Detected incorrect preamble
Detected multiple or zero preambles
Detected multiple or zero preambles
Detected multiple or zero preambles
Detected incorrect preamble
Detected multiple or zero preambles
Detected multiple or zero preambles
Detected multiple or zero preambles


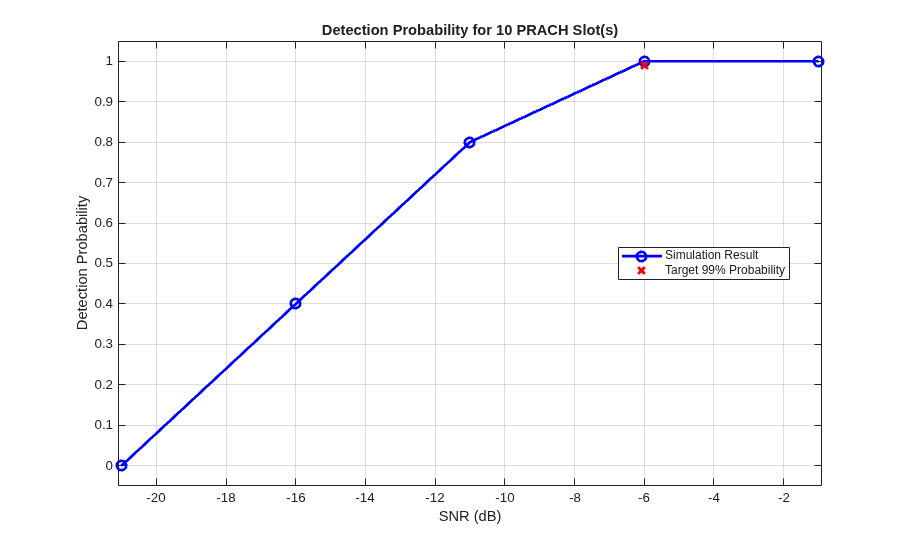

At the end of the SNR loop, the example plots the calculated detection probabilities for each SNR value against the target probability.

% Plot detection probability
title(['Detection Probability for ', num2str(numSubframes) ' Subframe(s)'] );
xlabel('SNRdB'); ylabel('Detection Probability');
grid on; hold on;
% Plot target probability
legend('Simulation Result', 'Target 99% Probability','Location','SouthEast');
minP = 0;
    minP = min(pDetection);
axis([SNRdB(1)-0.1 SNRdB(end)+0.1 minP-0.05 1.05])


This example uses these helper functions:


  1. 3GPP TS 38.141-1. "NR; Base Station (BS) conformance testing. Part 1: Conducted conformance testing." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.

  2. 3GPP TS 38.104. "NR; Base Station (BS) radio transmission and reception." 3rd Generation Partnership Project; Technical Specification Group Radio Access Network.
