Apply rotation in three-dimensional space through complex vectors

Follow MATLAB for Neuroscience on LinkedIn

Quaternions are vectors used for computing rotations in mechanics, aerospace, computer graphics, vision processing, and other applications. They consist of four elements: three that extend the commonly known imaginary number and one that defines the magnitude of rotation. Quaternions are commonly denoted as:

\[q=w+x\mathbf{i}+y\mathbf{j}+z\mathbf{k}\quad\text{where}\quad \mathbf{i}^2=\mathbf{j}^2=\mathbf{k}^2=\mathbf{i}\mathbf{j}\mathbf{k}=-1\]

This rotation format requires less computation than a rotation matrix.

Common tasks for using quaternion include:

  • Converting between quaternions, rotation matrices, and direction cosine matrices
  • Performing quaternion math such as norm inverse and rotation

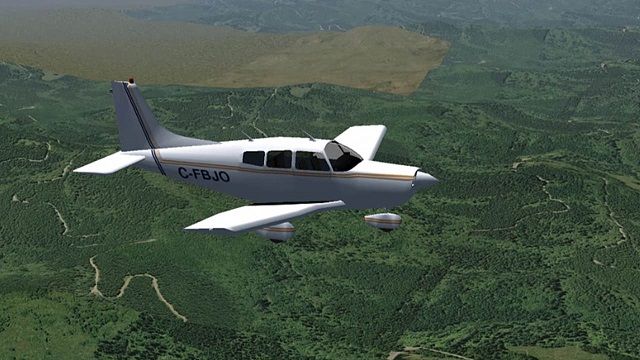

  • Simulating premade six degree-of freedom (6DoF) models built with quaternion math

For details, see MATLAB® and Simulink® that enable you to use quaternions without a deep understanding of the mathematics involved.

See also: Euler angles, linearization, numerical analysis, design optimization, real-time simulation, Monte Carlo simulation, model-based testing
