FFT 1536
Computes fastfouriertransform (FFT) for LTE standard transmission bandwidth of 15 MHz
 Library:
Wireless HDL Toolbox / Modulation
Description
The FFT 1536 block is designed to support LTE standard transmission
bandwidth of 15 MHz. This block is used in LTE OFDM Demodulator block
operation. The block accepts input data, along with a valid control signal and outputs
streaming data with a samplecontrol
bus.
The block provides an architecture suitable for HDL code generation and hardware deployment.
Ports
Input
data
— Input data
scalar of real or complex values
Input data, specified as a scalar of real or complex values.
double
and
single
data types are supported for simulation, but not for HDL
code generation.
The more the fractional bits you provide in the input word length, the better the accuracy you receive in the output.
Data Types: double
 single
 int8
 int16
 int32
 fixed point
Complex Number Support: Yes
valid
— Indicates valid input data
scalar
Indicates if the input data is valid. When the input valid is
1
(true), the block captures the value on the input
data port. When the input valid is
0
(false), the block ignores the input data
samples.
Data Types: Boolean
reset
— Reset control signal
scalar
When this value is 1
(true), the block stops the current
calculation and clears all internal states.
Dependencies
To enable this port, select the Enable reset input port parameter.
Data Types: Boolean
Output
data
— Frequency channel output data
scalar of real or complex values
Frequency channel output data, returned as a scalar of real or complex values.
When the input is of fixed point
data type, the output data
type is the same as the input data type. When the input is of integer type, the output
data type is of fixed point
type.
Data Types: double
 single
 int8
 int16
 int32
 fixed point
Complex Number Support: Yes
ctrl
— Control signals accompanying sample stream
samplecontrol
bus
Control signals accompanying the sample stream, returned as a samplecontrol
bus. The bus includes the start
, end
, and
valid
control signals, which indicate the boundaries of the frame
and the validity of the samples.
start
— Indicates the start of the output frameend
— Indicates the end of the output framevalid
— Indicates that the data on the output data port is valid
For more details, see Sample Control Bus.
Data Types: bus
Parameters
Main
Complex multiplication
— HDL implementation
Use 3 multipliers and 5 adders
(default)  Use 4 multipliers and 2 adders
Specifies the complex multiplier type for HDL implementation. Each multiplication
is implemented either with Use 3 multipliers and 5 adders
or with Use 4 multipliers and 2 adders
. The implementation
speed depends on the synthesis tool and the target device that you use.
Rounding method
— Rounding mode for internal fixedpoint calculations
Floor
(default)  Ceiling
 Convergent
 Nearest
 Round
 Zero
Specifies the type of rounding method for internal fixedpoint calculations. For
more information about rounding methods, see Rounding Modes. When the input is any integer or fixedpoint data type,
this block uses fixedpoint arithmetic for internal calculations. This parameter does
not apply when the input data is single
or
double
.
Normalize butterfly output
— Output normalization
off
(default)  on
When you select this parameter, the block divides the output by 1536. This option
is useful when you want the output of the block to stay in the same amplitude range as
its input. You require this option when the input is of fixed point
type.
When you select this parameter, the output word length increases by 2 bits and when you clear this parameter the output word length increases by 11 bits.
Control Ports
Enable reset input port
— Optional reset signal
off
(default)  on
Select this parameter to enable the reset port.

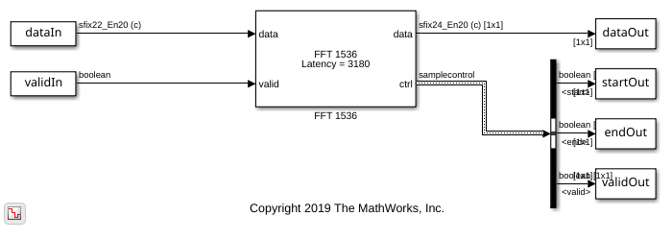

Model Examples
Algorithms
To design an FFT 1536 block, radix3 decimationintime (DIT) algorithm is implemented. The input sequence x(n) for all n = {0,1,2....1535} is divided into three DIT sequences, x(3n), x(3n+1), x(3n+2) for all n = {0,1,2....511}.
This equation defines FFT 1536 computation of a given sequence x(n).
$$x(k)={\displaystyle \sum _{n=0}^{1535}x(n){W}_{1536}{}^{nk};k=0,1,2,\mathrm{...},1535}$$
The equation can be implemented by dividing it into three parts, where P(k), Q(k), R(k) are the N/3 (FFT 512) point FFT of x(3n), x(3n+1), and x(3n+2), respectively. Here, N = 1536, and k = 0,1,2,.....,511.
$$x(k)=P(k)+{W}_{N}{}^{k}Q(k)+{W}_{N}{}^{2k}R(k)$$
$$x(k+N/3)=P(k)+{W}_{3}{}^{1}{W}_{N}{}^{k}Q(k)+{W}_{3}{}^{2}{W}_{N}{}^{2k}R(k)$$
$$x(k+2N/3)=P(k)+{W}_{3}{}^{2}{W}_{N}{}^{k}Q(k)+{W}_{3}{}^{1}{W}_{N}{}^{2k}R(k)$$
This diagram shows the internal architecture of the block and how the input sequence streams through the components of the block.
The input sequence x(n) is demultiplexed into three DIT sequences, x(3n), x(3n+1), x(3n+2), each of length 512. Three firstinput firstoutput (FIFO) memories store these sequences. These DIT sequences are serialized and streamed through the FFT 512 block.
Latency

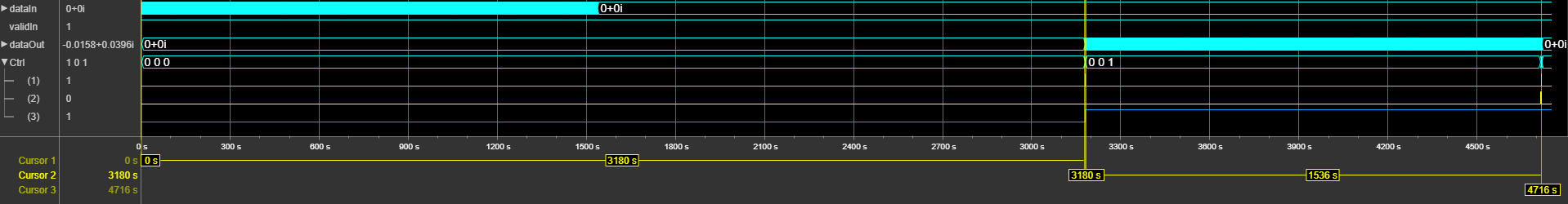

This image shows the output waveform of the block when operated with default
configuration parameters. The block provides output data after a latency of 3180 clock
cycles. The length of the output data between start
(Ctrl.(1)) and end
(Ctrl.(2))
output control signals is 1536 clock cycles.
Performance
The performance of the synthesized HDL code varies with your target and synthesis
options. This table shows the resource and performance data synthesis results of the block
with default configuration parameters, along with normalization feature enabled, and with an
input data in fixdt(1,17,15)
format. The generated HDL is targeted to
Xilinx^{®}
Zynq^{®} XC7Z045FFG9002 FPGA board. The design
achieves a clock frequency of 355 MHz.
Resource  Number Used

LUTs  7330
Registers  9325
Block RAMs  18
DSPs  36
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
This block supports C/C++ code generation for Simulink^{®} accelerator and rapid accelerator modes and for DPI component generation.
HDL Code Generation
Generate Verilog and VHDL code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
This block has one default HDL architecture.
ConstrainedOutputPipeline  Number of registers to place at
the outputs by moving existing delays within your design. Distributed
pipelining does not redistribute these registers. The default is

InputPipeline  Number of input pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

OutputPipeline  Number of output pipeline stages
to insert in the generated code. Distributed pipelining and constrained
output pipelining can move these registers. The default is

You cannot generate HDL for this block inside a Resettable Synchronous Subsystem (HDL Coder).
Version History
Introduced in R2019b
