Compute maximum value of input or sequence of inputs
Computer Vision Toolbox / Statistics
The 2D Maximum block identifies the index of the largest element in an input array. The input can be a 1D vector, 2D matrix, or an NDarray. The block can compute the maximum value along a specified dimension of the input or the entire input. The 2D Maximum block can also track the maximum values in a sequence of inputs over a period of time.
In
— Input arrayInput array, specified as a vector, matrix, or ND array. This
port is unnamed until you select the Enable ROI processing
parameter or set the Mode parameter to
Running
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
Complex Number Support: Yes
Rst
— Reset portReset port, specified as a scalar. This port specifies the event that causes the block to reset the running maximum. The sample time of the Rst input must be a positive integer and a multiple of the input sample time.
To enable this port, set the Mode parameter to
Running
and set the Reset port
parameter to Rising edge
, Falling
edge
, Either edge
, or
Nonzero sample
.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 Boolean
ROI
— Region of interestRegion of interest (ROI), specified as a fourelement vector, mby4 matrix, or MbyN matrix. The input value to this port depends on the ROI type parameter.
You can use the ROI
port only if the input is a
matrix.
To enable this port, set the Find the maximum value over
parameter to Entire input
and select the Enable
ROI processing parameter.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
Label
— Label matrixLabel matrix, specified as a matrix of nonnegative integers. The label matrix represents the objects in an image. The pixels labeled 0 are the background. The pixels labeled 1 make up one object; the pixels labeled 2 make up a second object; and so on. The size of the label matrix must be the same size as the 2D input.
To enable this port, select the Enable ROI processing
parameter and set the ROI type parameter to
Label matrix
.
Data Types: uint8
 uint16
 uint32
Label Numbers
— Label values of ROIsLabel values of ROIs, specified as a Melement vector. The value of M can be less than or equal to the number of objects that are labeled in the label matrix.
To enable this port, select the Enable ROI processing
parameter and set the ROI type parameter to
Label matrix
.
Data Types: uint8
 uint16
 uint32
Val
— Output maximum valueOutput maximum value, returned as a scalar, vector, matrix, or NDarray. The size of the returned maximum value depends on the size of the input, and the settings for the Find the maximum value over parameter.
This port is unnamed if Mode is set to
Running
.
The Mode parameter is set to Value and
Index
or Value
. In this case, you can
compute the maximum value along any specified dimension of the input or the entire
input. The output maximum value is a:
Scalar if the input is of any size and Find the
maximum value over parameter is set to Entire
input
.
Vector if the input is a matrix and the Find the
maximum value over parameter is set to any one of Each
row
, Each column
, and
Specified dimension
. In this case, the
Dimension value for Specified
dimension
can be either 1 or 2.
(N1)D array if the input is an ND
array and the Find the maximum value over
parameter is set to Specified dimension
and the
Dimension value is N.
ND array with one singleton dimension if the input is an
ND array and the Find the maximum
value over parameter is set to either of Each
row
, Each column
, and
Specified dimension
.
Example: For a 3D input array of size MbyNbyP, the dimension of the returned output is:
1byNbyP if you set the
Find the maximum value over parameter
to Entire row
.
Mby1byP if you set the
Find the maximum value over parameter
to Entire column
.
MbyN if you set the Find the maximum value over parameter to
Specified dimension
and the
Dimension value to 3.
When you set the Mode parameter to
Running
, the block computes the maximum value relative
to each sample in the input sequence. The output is of the same size as the
input.
Data Types: single
 double
 int8
 int16
 int32
 uint8
 uint16
 uint32
 fixed point
Idx
— Indices of maximum values in the input arrayIndices of maximum values in the input array, returned as a scalar, vector, matrix, or NDarray. The size of the returned indices depends on the size of the input, and the settings for the Find the maximum value over parameter.
To enable this port set the Mode parameter to
Value and Index
or Index
. The
indices returned at the output is a:
Scalar if the input is a N element vector and Find the
maximum value over parameter is set to Entire
input
.
Vector if the input is a matrix and the Find the maximum
value over parameter is set to any one of Entire
input
, Each row
, Each
column
, and Specified dimension
. In
this case, the Dimension value for
Specified dimension
can be either 1 or 2.
(N1)D array if the input is a ND
array and the Find the maximum value over
parameter is set to Specified dimension
and the
Dimension value is N.
ND array with one singleton dimension if the input is an
ND array. In this case the Find the
maximum value over parameter is set to Each
row
, Each column
, or
Specified dimension
. In this case, the
Dimension value for Specified
dimension
is an integer less than N.
Example: For a 3D input array of size MbyNbyP, the dimension of the returned output is:
1byNbyP if you set the
Find the maximum value over parameter to
Entire row
.
Mby1byP if you set the
Find the maximum value over parameter to
Entire column
.
MbyN if you set the Find the maximum value over parameter to
Specified dimension
and the
Dimension value to 3.
When a maximum value occurs more than once, the computed index corresponds to
the first occurrence. For example, in the input vector [3 2 1 2
3]
, the maximum value is 3 and the onebased index of the maximum value
is 1
.
Data Types: single
 double
 int8
 int16
 int32
 int64
 uint8
 uint16
 uint32
 uint64
 Boolean
 fixed point
 enumerated
 bus
Flag
— Validation for ROIValidation for ROI, returned as 0 or 1. The output value signifies if all of the ROIs specified at the input lie within the image bounds. The output value depends on the values of the Output and ROI Type parameters.
ROI Type  Output  Output from Flag port  Description
 Individual statistics for each
ROI  0  ROI is completely outside the input image.
1  ROI is either completely or partially inside the input image.
Single statistic for all
ROIs  0  ROI is completely outside the input image.
1  ROI is either completely or partially inside the input image.
Label matrix  Individual statistics for each
ROI  0  Label number is not in the label matrix.
1  Label number is in the label matrix.
Single statistic for all
ROIs  0  None of the label numbers are in the label matrix.
1  At least one of the label numbers is in the label matrix.
If the ROI is partially outside the image, the block computes the variance values only for the portion of the ROI that lies within the image bounds.
To enable this port, select the Output flag indicating if ROI is
within image bounds parameter and set the value of ROI
type parameter to Rectangle
,
Lines
, or Label
Matrix
.
Main Tab
Mode
— Output modeValue and Index
(default)  Value
 Index
 Running
Specify the type of output to be returned by the block. Select the output mode as:
Value and Index
to return the maximum values and
the corresponding indices in the given input.
Value
to return only the computed maximum
values.
Index
to return only the indices of the maximum
values in the given input.
Running
to return the maximum values in a sequence
of inputs.
Index Base
— Index originOne
(default)  Zero
Specify the index for the first element in the input array. Select the index origin as:
One
for onebased numbering. The range of the index
values for the elements in an ND input array is set to (1, N). For example, the
index value for the first element in the matrix is set to (1,1).
Zero
for zerobased numbering. The range of the index
value for the elements in an ND input array is set to (0, N1). For example, the
index value for the first element in the matrix is set to (0,0).
Find the maximum value over
— Dimension along which maximum is computedEntire input
(default)  Each row
 Each column
 Specified dimension
Specify the dimension of the input along which the block computes the maximum.
Entire input
— Computes maximum over the
entire input.
Each row
— Computes maximum over each
row.
Each column
— Computes maximum over each
column.
Specified dimension
— Computes maximum over
the dimension specified in the Dimension parameter.
If Dimension is 1, the output is the same as
when you select Each column
.
If Dimension is 2, the output is the same as
when you select Each row
.
To enable this parameter, set the Mode parameter to
Value and Index
, Value
, or
Index
.
Dimension
— Custom dimensionSpecify the dimension of the input array over which the maximum is computed as a onebased value. The value of this parameter must be greater than 0 and less than or equal to the number of dimensions in the input array.
To enable this parameter, set the Find the maximum value over
parameter to Specified dimension
.
Reset port
— Reset eventNone
(default)  Rising edge
 Falling edge
 Either edge
 Nonzero sample
Specify when the block detects a reset event. The block resets the running mode when a reset event is detected at the optional Rst port. The reset sample time must be a positive integer and a multiple of the input sample time.
Specify the reset event as:
None
to disable the Rst port.
Rising edge
to trigger a reset event when the
Rst input does one of the following:
Rises from a negative value to either a positive value or zero
Rises from zero to a positive value, where the rise is not a continuation of a rise from a negative value to zero
Falling edge
to trigger a reset event when the
Rst input does one of the following:
Falls from a positive value to either a negative value or zero
Falls from zero to a negative value, where the fall is not a continuation of a fall from a positive value to zero
Either edge
to trigger a reset event when
the Rst input is a Rising
edge
or Falling edge
.
Nonzero sample
to trigger a reset event at each
sample time, when the Rst input is not zero.
When running simulations in the Simulink^{®} multitasking mode, reset signals have a onesample latency. Therefore, when the block detects a reset event, there is a onesample delay at the reset port rate before the block applies the reset.
To enable this parameter, set the Mode parameter to
Running
.
ROI Processing
Enable ROI processing

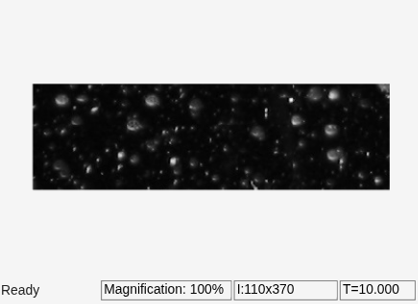

— Compute maximum value within a particular regionSelect to calculate maximum within a particular ROI in the image.
Full ROI processing is available only if you have a Computer
Vision Toolbox™ license. If you do not have a Computer
Vision Toolbox license, you can still use ROI processing, but the ROI
type is limited to Rectangles
.
To enable this parameter, set the Find the maximum value over
parameter to Entire input
.
ROI type
— Type of ROI Rectangles
(default)  Lines
 Label matrix
 Binary mask
Specify the type of ROI that represents the regions in the image over which the block computes the variance. The type of ROI can be a rectangle, line, label matrix, or a binary mask.
Parameters  Description
ROI type  Inputs to the ROI port
Rectangles


Lines


Label matrix  MbyN matrix  Matrix of the same size as the input image. The matrix contains label values that represent different objects in an image. The pixels labeled 0 are the background. The pixels labeled 1 make up one object; the pixels labeled 2 make up a second object; and so on.
Binary mask  MbyN matrix  Matrix of the same size as the input image. The binary mask classifies image pixels as belonging to either the region of interest or the background. The mask pixel values of 1 indicate that the image pixel belongs to the ROI. The mask pixel values of 0 indicate that the image pixel is part of the background.
To enable this parameter, set the Find the maximum value over
parameter to Entire input
and select the Enable
ROI processing parameter.
ROI portion to process
— Portion of ROI in which to calculate maximumEntire ROI
(default)  ROI perimeter
Specify the portion of the ROI from which the block has to calculate 2D maximum. The ROI portion is either the entire ROI or the ROI perimeter.
To enable this parameter, select the Enable ROI processing
parameter and set the ROI type parameter to
Rectangles
.
Output
— Calculate maximum for individual or entire ROIIndividual statistics for each
ROI
(default)  Single statistic for all ROIs
Specify whether to calculate 2D maximum individually for each ROI or for the entire ROI.
If you select Individual statistics for each ROI
,
the block outputs a vector of maximum values. The size of the output vector is
equal to the number of ROIs.
If you select Single statistic for all ROIs
, the
block outputs a scalar value. The scalar value represents the statistical value
for all the specified ROIs.
To enable this parameter, select the Enable ROI processing
parameter and set the ROI type parameter to
Rectangles
, Lines
, or
Label matrix
.
Output flag indicating if ROI is within image bounds
— Enable Flag portSelect to expose the Flag port. For a description of the Flag port output, see Flag.
To enable this parameter, select the Enable ROI processing
parameter and set the ROI type parameter to
Rectangles
, Lines
, or
Label matrix
.
Data Types Tab
For details on the fixedpoint block parameters, see Specify FixedPoint Attributes for Blocks.
Lock data type settings against change by the fixedpoint tools
— Prevent fixedpoint tools from overriding data typesSelect this parameter to prevent the fixedpoint tools from overriding the data types you specify in this block. For more information, see Lock the Output Data Type Setting (FixedPoint Designer).
Data Types

Multidimensional Signals

VariableSize Signals

For complex inputs, the block computes the squared magnitude value for the elements in the input array. The squared magnitude value for a complex number $$u=a+bi$$ is computed as $${a}^{2}+{b}^{2}$$. The array element with maximum squared magnitude is the maximum value of the input array.
You clicked a link that corresponds to this MATLAB command:
Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.
Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .
Select web siteYou can also select a web site from the following list:
Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.
