Predict Responses Using RegressionNeuralNetwork Predict Block
This example shows how to use the RegressionNeuralNetwork Predict block for response prediction in Simulink®. The block accepts an observation (predictor data) and returns the predicted response for the observation using the trained neural network regression model.
Train Regression Model
cereal data set. Create the predictor
X as a numeric matrix that contains 6 features for 77 observations. Create the response
Y as a numeric vector that contains the calories for each cereal.
load cereal X = [Carbo Cups Fat Fiber Protein Sugars]; Y = Calories;
Separate the data into a training set and a test set by using a nonstratified holdout partition. The software reserves approximately 20% of the observations for the test data set and uses the rest of the observations for the training data set.
rng("default") % For reproducibility of the partition cv = cvpartition(length(Y),"Holdout",0.20);
Extract the training and test indices.
trainingInds = training(cv); testInds = test(cv);
Specify the training and test data sets.
XTrain = X(trainingInds,:); YTrain = Y(trainingInds); XTest = X(testInds,:); YTest = Y(testInds);
Train a neural network regression model by passing the training data
YTrain to the
fitrnet function. Specify to standardize the numeric predictors and initialize the weights with the He initializer.
nnetMdl = fitrnet(XTrain,YTrain,"Standardize",true, ... "LayerWeightsInitializer","he")
nnetMdl = RegressionNeuralNetwork ResponseName: 'Y' CategoricalPredictors:  ResponseTransform: 'none' NumObservations: 62 LayerSizes: 10 Activations: 'relu' OutputLayerActivation: 'none' Solver: 'LBFGS' ConvergenceInfo: [1x1 struct] TrainingHistory: [55x7 table] Properties, Methods
nnetMdl is a
RegressionNeuralNetwork model. You can use dot notation to access the properties of
nnetMdl. For example, you can specify
nnetMdl.TrainingHistory to get more information about the training history of the neural network model.
Create Simulink Model
This example provides the Simulink model
slexRegressionNeuralNetworkPredictExample.slx, which includes the RegressionNeuralNetwork Predict block. You can open the Simulink model or create a new model as described in this section.
Open Provided Model
Open the Simulink model
SimMdlName = 'slexRegressionNeuralNetworkPredictExample'; open_system(SimMdlName)
If you open the Simulink model, then the software runs the code in the
PreLoadFcn callback function before loading the Simulink model. The
PreLoadFcn callback function of
slexRegressionNeuralNetworkPredictExample includes code to check if your workspace contains the
nnetMdl variable for the trained model. If the workspace does not contain the variable,
PreLoadFcn loads the sample data, trains the neural network model, and creates an input signal for the Simulink model. To view the callback function, in the Setup section on the Modeling tab, click Model Settings and select Model Properties. Then, on the Callbacks tab, select the
PreLoadFcn callback function in the Model callbacks pane.
Create New Model
Instead of opening the model provided, you can create a new model. To create a new Simulink model, open the Blank Model template and add the RegressionNeuralNetwork Predict block. Add the Inport and Outport blocks and connect them to the RegressionNeuralNetwork Predict block.

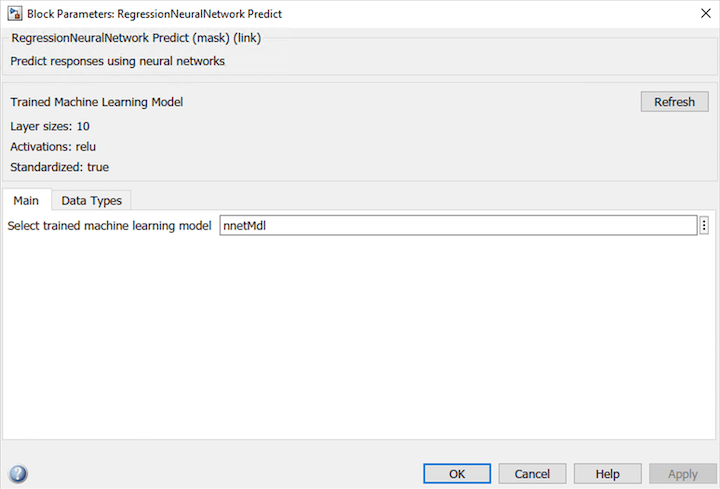

Double-click the RegressionNeuralNetwork Predict block to open the Block Parameters dialog box. You can specify the name of a workspace variable that contains the trained neural network model. The default variable name is
nnetMdl. Click the Refresh button. The Trained Machine Learning Model section of the dialog box displays the options used to train the model
The RegressionNeuralNetwork Predict block expects an observation containing 6 predictor values. Double-click the Inport block, and set the Port dimensions to 6 on the Signal Attributes tab.
Create an input signal in the form of a structure array for the Simulink model. The structure array must contain these fields:
time— The points in time at which the observations enter the model. The orientation must correspond to the observations in the predictor data. In this example,
timemust be a column vector.
signals— A 1-by-1 structure array describing the input data and containing the fields
valuesis a matrix of predictor data, and
dimensionsis the number of predictor variables.
Create an appropriate structure array for future predictions.
cerealInput.time = (0:length(YTest)-1)'; cerealInput.signals(1).values = XTest; cerealInput.signals(1).dimensions = size(XTest,2);
Import the signal data from the workspace:
Open the Configuration Parameters dialog box. On the Modeling tab, click Model Settings.
In the Data Import/Export pane, select the Input check box and enter
cerealInputin the adjacent text box.
In the Solver pane, under Simulation time, set Stop time to
cerealInput.time(end). Under Solver selection, set Type to
Fixed-step, and set Solver to
discrete (no continuous states).
For more details, see Load Signal Data for Simulation (Simulink).
Simulate the model.
When the Inport block detects an observation, it places the observation into the RegressionNeuralNetwork Predict block. You can use the Simulation Data Inspector (Simulink) to view the logged data of the Outport block.
