Control Torque of IPMSM Inside Axle-Drive EV in DQ Frame

Since R2025a

This example models an interior permanent magnet synchronous machine (IPMSM) propelling a simplified axle-drive electric vehicle. The example controls and simulates the torque in the rotor direct-quadrature (DQ) reference frame. The IPMSM operates in both motoring and generating modes. A fixed-ratio gear-reduction model implements the vehicle transmission and differential. The Vehicle Controller subsystem converts the driver inputs into a relevant torque command. The Drive Controller subsystem controls the torque of the IPMSM. The control algorithm is implemented in continuous time. To simulate this model faster, this example uses a variable-step solver. The Scopes subsystem contains scopes that allow you to see the simulation results.

Open Model

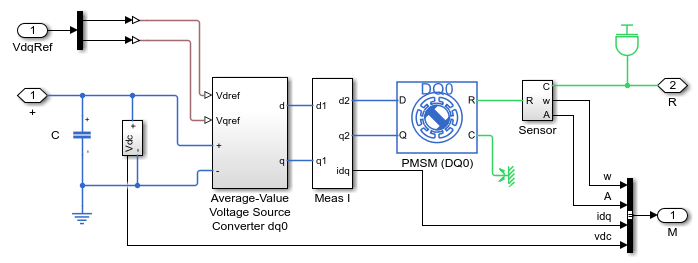

Open Electric Drive Subsystem

View Simulation Results from Simscape Logging

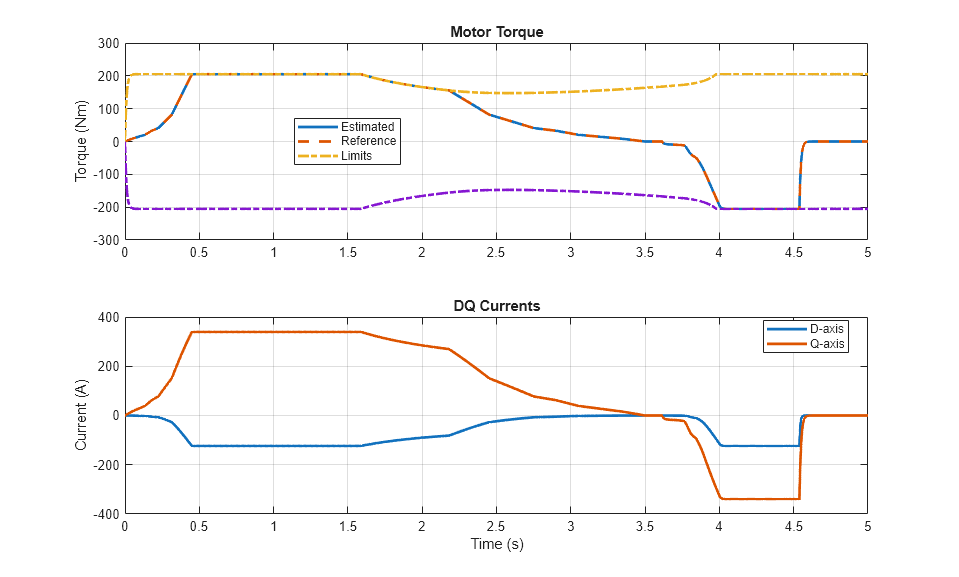

This plot shows the requested and estimated torque for the test as well as the DQ currents in the electric drive.

simlog_handles =

  1×2 Axes array:

    Axes    Axes
