# Bevel Gear Constraint

Kinematic constraint between two bevel gear bodies with angled intersecting rotation axes

**Library:**Simscape / Multibody / Gears and Couplings / Gears

## Description

The Bevel Gear Constraint block represents a kinematic constraint
between two gear bodies with intersecting rotation axes held at a specified angle. The
base and follower frame ports identify the connection frames on the gear bodies. The
gear rotation axes coincide with the connection frame *z*-axes. The
gears rotate at a fixed velocity ratio determined by the gear pitch
radii.

The block represents only the kinematic constraint characteristic to a bevel gear system. Gear inertia and geometry are solid properties that you must specify using solid blocks. The gear constraint model is ideal. Backlash and gear losses due to Coulomb and viscous friction between teeth are ignored. You can, however, model viscous friction at joints by specifying damping coefficients in the joint blocks.

### Gear Geometry

The bevel gear constraint is parameterized in terms of the dimensions of the gear
pitch circles. The pitch circles are imaginary circles concentric with the gear
bodies and tangent to the tooth contact point. The pitch radii, labeled
`R`

and
_{B}`R`

in the figure, are the outer
radii that the gears would have if they were reduced to friction cones in mutual
contact._{F}

### Gear Assembly

Gear constraints occur in closed kinematic loops. The figure shows the closed-loop topology of a simple bevel gear model. Joint blocks connect the gear bodies to a common fixture or carrier, defining the maximum degrees of freedom between them. A Bevel Gear Constraint block connects the gear bodies, eliminating one degree of freedom and effectively coupling the gear motions.

### Assembly Requirements

The block imposes special restrictions on the relative positions and orientations of the gear connection frames. The restrictions ensure that the gears assemble only at distances and angles suitable for meshing. The block enforces the restrictions during model assembly, when it first attempts to place the gears in mesh, but relies on the remainder of the model to keep the gears in mesh during simulation.

**Position Restrictions**

The distance between the base and follower frame origins must be such that, at the given shaft angle and pitch radii, the gear pitch circles are tangent to each other. This distance, denoted

*d*_{B-F}, follows from the law of cosines:$${d}_{B-F}=\sqrt{{R}_{B}^{2}+{R}_{F}^{2}-2{R}_{B}{R}_{F}\mathrm{cos}\left(\pi -\theta \right)},$$

where

*R*_{B}is the pitch radius of the base gear,*R*_{F}is the pitch radius of the follower gear, and*θ*_{Shaft}is the intersection angle between the rotation axes.The distance between the base and follower frame origins along the

*z*-axis of the base frame, denoted*Δz*_{B}, must be equal to:$$\Delta {z}_{B}={R}_{F}\xb7\mathrm{sin}\left({\theta}_{\text{Shaft}}\right)$$

The distance between the base and follower frame origins along the

*z*-axis of the follower frame, denoted*Δz*_{F}, must be equal to:$$\Delta {z}_{F}={R}_{B}\xb7\mathrm{sin}\left({\theta}_{\text{Shaft}}\right)$$

**Orientation Restrictions**

The imaginary lines extending from the base and follower z-axes must intersect at the shaft angle set in the block dialog box. The angle is denoted θ

_{B-F}in the figure. If the**Shaft Axes**parameter is set to`Perpendicular`

, the angle is 90°.

## Ports

### Frame

## Parameters

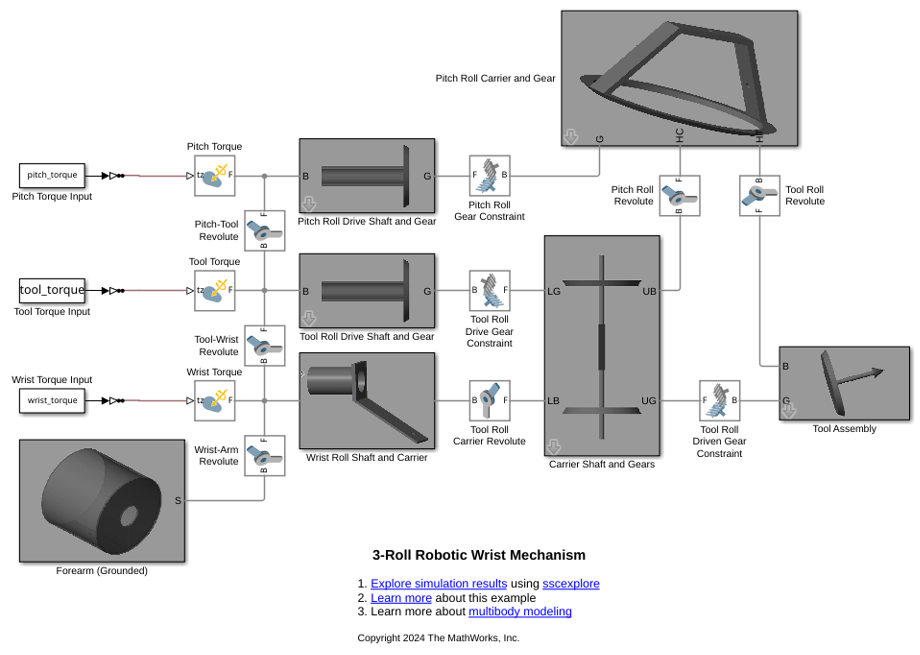

## Model Examples

## Extended Capabilities

## Version History

**Introduced in R2013b**
