Collect Coverage Using MATLAB-Based Simulink Tests
This example shows how to use a MATLAB®-based Simulink® test to collect coverage on a model with a test harness, and use the MATLAB Test Framework to populate the results in the Test Manager. MATLAB-based Simulink tests are MATLAB code (.m
) file test case class definitions that inherit from sltest.TestCase
.
MATLAB-Based Simulink Test File
The MATLAB-based Simulink test file, TestHarnessWithModelCoverage.m
, has been created and is provided with this example. The test file contains two test functions. Each one has a harness model to drive input data to test the subsystem TestHarnessWithModelCoverage/Subsystem1
and compare with corresponding baseline. This test uses a Simulink.SimulationOutput
object when simulating the model.
classdef TestHarnessWithModelCoverage < sltest.TestCase
methods (Test) function testOne(testCase) in = testCase.createSimulationInput('simpleSwitchWithSubsystemIn',... 'WithHarness','simpleSwitchWithSubsystemIn_Harness1'); simOut = testCase.simulate(in); testCase.verifySignalsMatch(simOut,'baselineOne.mat'); end function testTwo(testCase) in = testCase.createSimulationInput('simpleSwitchWithSubsystemIn',... 'WithHarness','simpleSwitchWithSubsystemIn_Harness2'); simOut = testCase.simulate(in); testCase.verifySignalsMatch(simOut,'baselineTwo.mat'); end end
end
Create a TestRunner and Test Suite
Create a TestRunner
to run the sltest_ratelim
model.
import matlab.unittest.TestRunner;
runner = TestRunner.withTextOutput;
Create a TestSuite
to use with the TestRunner
.
suite = testsuite('TestHarnessWithModelCoverage');
Configure the Test Runner
Use plugin methods to configure the TestRunner
to add test results from an sltest.TestCase
to the Test Manager. Add the TestRunnerPlugin
to the TestRunner
.
import sltest.plugins.MATLABTestCaseIntegrationPlugin;
runner.addPlugin(MATLABTestCaseIntegrationPlugin);
The DiagnosticsOutputPlugin
and the ToTestManagerLog
stream the diagnostics from an sltest.TestCase
run to the logs of TestCaseResults
in the Test Manager
. The diagnostics include passing diagnostics for tests that pass. Add the DiagnosticsOutputPlugin
and ToTestManagerLog
to the TestRunner
.
import sltest.plugins.ToTestManagerLog; import matlab.unittest.plugins.DiagnosticsOutputPlugin; streamOutput = ToTestManagerLog(); diagnosticsOutputPlugin = DiagnosticsOutputPlugin... (streamOutput,'IncludingPassingDiagnostics',true); runner.addPlugin(diagnosticsOutputPlugin);
Configure Coverage Collection for a Simulink Model
Models in an sltest.TestCase
that are simulated using the simulate
method can collect coverage. Use the ModelCoveragePlugin
to configure coverage metrics collection. This example collects MCDC coverage. Add the ModelCoveragePlugin
to the TestRunner
.
import sltest.plugins.coverage.CoverageMetrics; import sltest.plugins.ModelCoveragePlugin; mcdcMetrics = CoverageMetrics('MCDC',true); runner.addPlugin(ModelCoveragePlugin('Collecting',mcdcMetrics));
Alternatively, you can turn on coverage collection and set coverage metrics in the Test Manager. If you use this alternative, you do not need to import or add the coverage plugins to the runner
.
Collect and Add Coverage and Test Results to the Test Manager
Now that the TestRunner
is fully configured, use the run
function to collect coverage and add the coverage and test results to the Test Manager.
run(runner,suite);
Setting up ResultSetFixture Done setting up ResultSetFixture __________ Running TestHarnessWithModelCoverage .. Done TestHarnessWithModelCoverage __________ Coverage Report for simpleSwitchWithSubsystemIn/Subsystem1 /tmp/Bdoc24b_2679053_1870383/tp3e2326e2_0cc8_4894_9e4e_09339a6e5818.html Tearing down ResultSetFixture Done tearing down ResultSetFixture __________
run
also generates a report that includes cumulative coverage for the test suite that was run. Use the Coverage Report for sltest_ratelim
link to view the report.
Open the Test Manager
sltest.testmanager.view

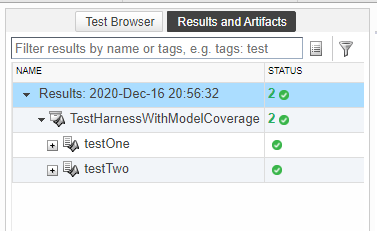

Select the Results and Artifacts pane and expand the Results and BaselineTestWithCoverage rows.
Select the testOne
row.

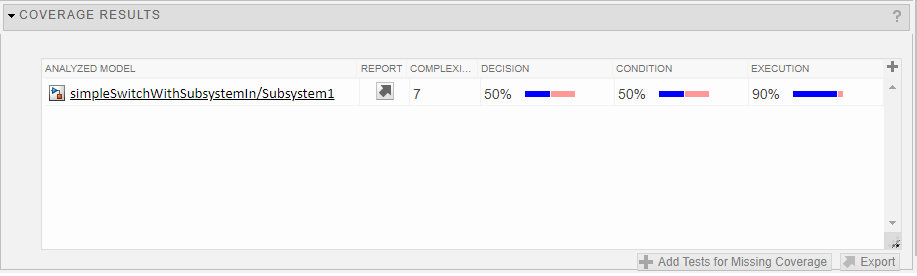

The Coverage Results section shows the coverage collected for sltest_ratelim
from testOne
.

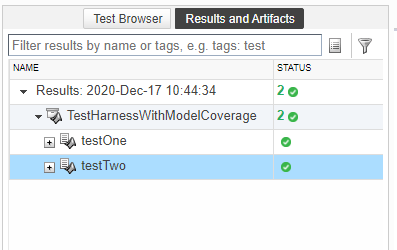

Select the testTwo
row.

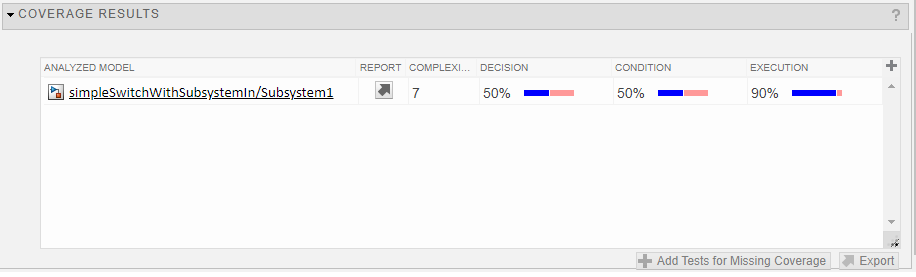

The Coverage Results section shows the coverage collected for sltest_ratelim
from testTwo
.

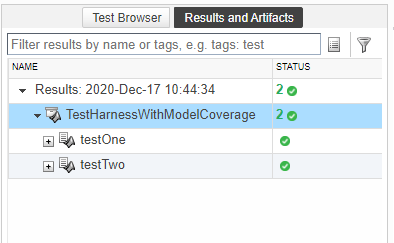

Select the BaselineTestWithCoverage
row.

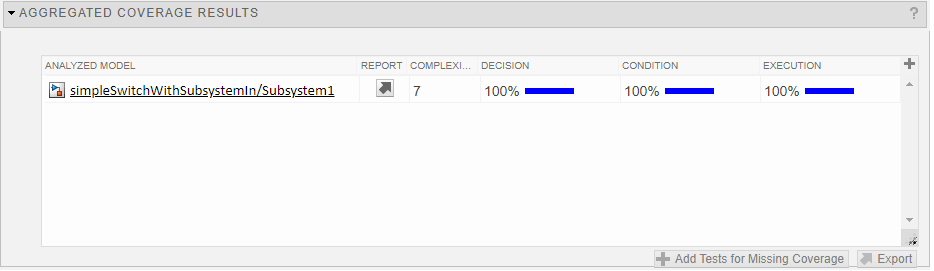

The Aggregated Coverage Results section shows the aggregation of the coverage collected for sltest_ratelim
from testOne
and testTwo
. The aggregated results show full coverage for the specified coverage metrics.
