Leverage Evaluation Order of Formal Requirements
The Requirements Table block evaluates requirements by starting at the first requirement and working downward. You can leverage this behavior by assigning values to data and then using the data in requirements listed later in the requirement set.
For example, if you want to reference local data in the preconditions of other requirements:
List the requirements that define the local data values first in the set.
List the requirements that require the local data in preconditions later.
Verify that your requirements do not read data before being written.
If you have Simulink® Design Verifier™, you can analyze the requirements to detect instances where data is read before it is written. In the Table tab, in the Analyze section, click Analyze Table. See Identify Inconsistent and Incomplete Formal Requirement Sets.
For more information on how to define requirements, see Use a Requirements Table Block to Create Formal Requirements.
You can reference output data in preconditions if the Enable outputs in
preconditions property is enabled or if the data is an argument in the
getPrevious operator. To enable this property, open the Requirements
Table block. In the Modeling tab, in the Design
Data section, click Property Inspector. In the
Properties tab, enable the Enable outputs in
preconditions property. See Enable outputs in preconditions.
Example Using Requirement Order
This example shows how requirement order affects data in Requirements Table blocks.
Examine the Requirements

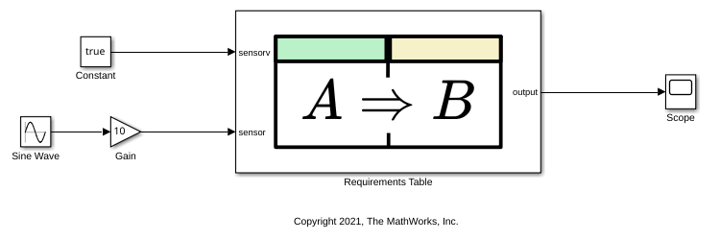

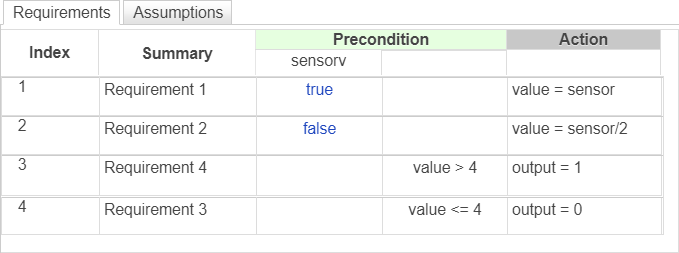

Open the Requirements Table block. The block uses the input data
sensor to determine the value of the local data
value. The requirements then use
value to determine the value of the output data
If you define Requirements 3 and 4 before Requirements 1 and 2, the requirements do not define
value is needed, which causes a read-before-write error during simulation.
