removeRule

Class: slcoverage.Filter
Package: slcoverage

Remove rule from filter rule set

expand all in page

Syntax

result = removeRule(filter,rule)

Description

result = removeRule(filter,rule) removes the filter rule from the specified filter.

Input Arguments

expand all

Filter object to remove the rule from, specified as an slcoverage.Filter object.

Rule to remove from the filter, specified as an slcoverage.FilterRule object.

Output Arguments

expand all

Rule removal result, returned as 0 or 1.

Examples

expand all

Create a block selector, a filter, and a rule for the selector. Add rules to the filter. Then, remove a rule from a filter.

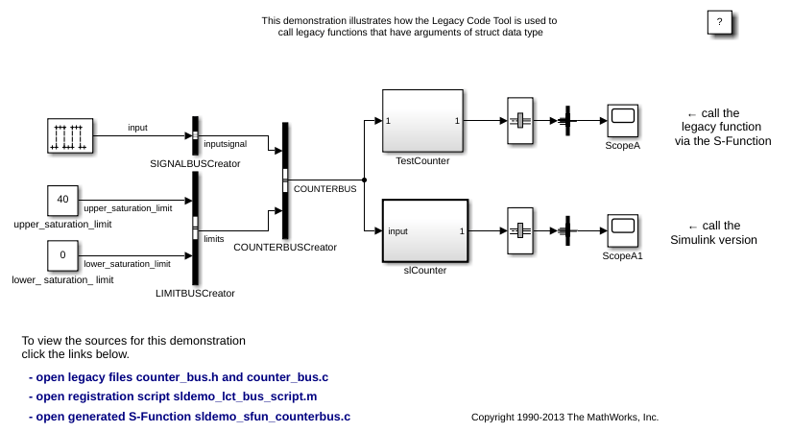

Open the model. Specify coverage settings and turn on coverage recording.

modelName = 'slcoverage_lct_bus';
open_system(modelName);
set_param(modelName,'CovMetricStructuralLevel','MCDC','RecordCoverage','on');

Create two BlockSelector objects, bl and bl1.

bl = slcoverage.BlockSelector(slcoverage.BlockSelectorType.BlockType,'RelationalOperator');
id = Simulink.ID.getSID('slcoverage_lct_bus/slCounter/And');
bl1 = slcoverage.BlockSelector(slcoverage.BlockSelectorType.BlockInstance,id);

Create a filter object, create two rule objects, and add each rule to the filter object.

filt = slcoverage.Filter;
rule = slcoverage.FilterRule(bl,'Tested elsewhere',slcoverage.FilterMode.Exclude);
rule1 = slcoverage.FilterRule(bl1,'Value is never greater than 0');
filt.addRule(rule);
filt.addRule(rule1);

Review the rules. Look the first rule in the array.

fi = filt.rules
fi(1)
fi =

  1×2 FilterRule array with properties:

    Selector
    Mode
    Rationale

ans =

  FilterRule with properties:

     Selector: [1×1 slcoverage.BlockSelector]
         Mode: Exclude
    Rationale: 'Tested elsewhere'

Remove the first rule that you added. Then review the rules to see that the first rule that you added is removed.

filt.removeRule(rule);
fi = filt.rules
fi =

  FilterRule with properties:

     Selector: [1×1 slcoverage.BlockSelector]
         Mode: Justify
    Rationale: 'Value is never greater than 0'

Version History

Introduced in R2017b
